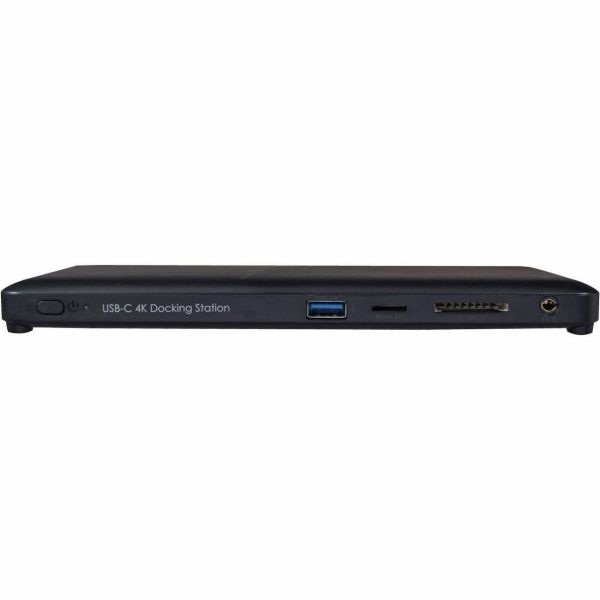

V7 DOCKUCPT3DUSB-C Alt Mode Triple Display Docking Station

Marketing Information
The USB-C DOCKUCPT3D USB-C Alt Mode Triple Display Docking Station from V7 adds up to 3 displays, four USB ports, Audio, SD/Micro SD Memory Cards and Gigabit Ethernet network connectivity to your USB-C enabled computer while charging at the same time. It features two HDMI ports and one DisplayPort outputs that can be used to extend or mirror your device for multitasking productivity. It supports up to two 4K displays or up to three 1920 x 1080 (1080P) displays. The power supply is included and it provides up to 100 Watts of USB-C Charging to your computer at the same time as providing all the extra connectivity. It is compatible with DisplayPort Alt mode enabled devices. It includes a K-Lock interface for security. This solution provides robu...st high performance connectivity to extend and enhance your workstation productivity with a 2 year warranty. 130W Power Supply included.

More from the Manufacturer

Specifications
Manufacturer: V7
Manufacturer Part Number: DOCKUCPT3D
Manufacturer Website Address: http://www.v7world.com
Brand Name: V7
Product Model: DOCKUCPT3D
Product Name: DOCKUCPT3DUSB-C Alt Mode Triple Display Docking Station
Packaged Quantity: 1.0
Product Type: Docking Station
Technical Information
Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD

Features: Security Lock
Number of Displays Supported: 3
Screen Mode Supported:

• 4K
• Full HD

Supported Resolutions:

• 3840 x 2160
• 1920 x 1080

Maximum Data Transfer Rate: 12.50 MB/s
Security Slot Type: Kensington Security Slot
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Audio Line In: Yes
Total Number of USB Ports: 4
Number of USB 3.2 Gen 1 Type-A Ports: 4
Number of USB Type-C Ports: 2.0
USB Type-A: Yes
USB Type-C: Yes
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of DisplayPort Outputs: 1
Number of DisplayPorts: 1
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Outputs: 2
Number of HDMI Ports: 2
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows
• Linux
• macOS
• Android
• ChromeOS

Power Description
Maximum Power Supply Wattage: 130 W
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 19 mm
Width: 83 mm
Length: 207 mm
Weight (Approximate): 322.1 g
Miscellaneous
Kensington Security Slot: Yes
Additional Information:

Audio Channel: 4pole TRRS Stereo

Compliance: CE,FCC, UKCA

Maximum Data Transfer Rate: 10/100/1000 Mbps

Docking Type: Alt Mode

Material: ABS

Operating Temperature: 0 to 35 C

Output Voltage: 20V/6.50A

Package Dimensions (L/W/H): 9.65 x 7.48 x 25.79 in

Shipping Weight: 3.02 lb

Storage Temperature: -10 to 70 C

USB Display Type: Alt-Mode

Brand Compatibility:

• Acer
• Apple
• Asus
• Dell
• HP
• Lenovo
• Microsoft
• Samsung
• Sony

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Warranty
Limited Warranty: 2 Year
