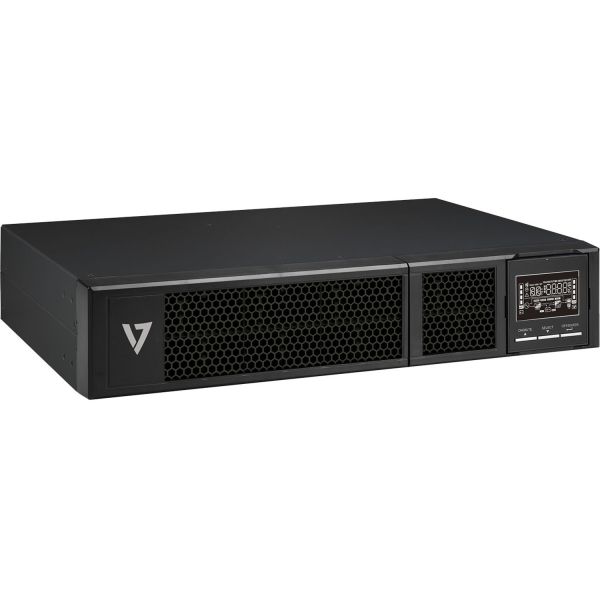

V7 UPS2URM3000DC-NC-1E 3000VA Rack-mountable Double Conversion Online UPS

Marketing Information
The V7 Online UPS UPS2URM3000DC-NC-1E provides the highest level of power protection and battery backup for education, healthcare, military, government, and other mission-critical IT applications. This online double-conversion UPS system provides perfect output by converting AC input to DC, then reconverting UPS output to pure sine wave AC. Constant on-line operation protects equipment from power problems on the AC line. Designed with field-replaceable, hot-swappable VRLA battery modules so you can work through short power failures and provide you adequate time to save files and shut down your system in case of a prolonged outage. A zero-transfer time between on-line and battery maintains continuous operation of connected equipment. We've i...ncluded a network interface for full remote configuration and management of connected equipment and safe shutdowns. And in the event of an outage, battery-independent restart ensures automatic UPS power-up without user interaction, even after a complete battery discharge. One IEC C19 and eight IEC C13 outlets provide pure sine wave output and filtering to protect connected equipment against damaging surges and line noise that can damage your electronics or cause loss of data. A menu-driven front-panel LCD provides detailed alarms and notifications including system status, event logs, battery and power module status, usage analytics, and more. The LCD can rotate to accommodate both rack-mount and tower installation. The UPS2URM3000DC-NC mounts in just 2U of space in an EIA-standard 19-inch rack using the included mounting hardware. You can also configure it in tower installation using the included support pedestals.
Specifications
Manufacturer: V7
Manufacturer Part Number: UPS2URM3000DC-NC-1E
Manufacturer Website Address: http://www.v7world.com
Brand Name: V7
Product Model: UPS2URM3000DC-NC-1E
Product Name: UPS2URM3000DC-NC-1E 3000VA Rack-mountable Double Conversion Online UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: Schuko
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail:

• 8 x IEC 60320 C13
• 1 x IEC 60320 C19

Dataline Protection: RJ-11/RJ-45
Overload Protection: Yes
Cord Length: 3.05 m
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage:

• IT Equipment
• Data Center
• Mission Critical Equipment

Power Description
Load Capacity (VA): 3 kVA
Load Capacity (Watt): 3 kW
Output Voltage: 240 V AC
Waveform Type: Pure Sine Wave
Surge Energy Rating: 720 J
Display & Graphics
Display: LCD
Management
Network Management: RS-232
Alarm: Site Wiring Fault
Controls/Indicators
Status Indicators:

AC Mode

Battery Mode

Load Level

Battery Level

Input Voltage

Output Voltage

Overload

Fault

Low Battery

Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
USB (HID Compliant) Port: Yes
Battery Information
DC System Voltage: 12 V DC
Number of Batteries: 6
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 2.60 Minute
Backup/Run Time (Half Load): 9.80 Minute
Typical Battery Recharge Time: 3 Hour
Environmental Conditions
Maximum Operating Temperature: 40°C
Operating Humidity: 20% - 95%
Sound Emission (A-Weighted): 50 dB(A)
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 88 mm
Width: 438 mm
Length: 630 mm
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 27.20 kg
Miscellaneous
Package Contents:

Rack / Tower UPS

4-post Rail Kit

Tower Pedestals

USB Cable

User's Guide

Warranty

Compliance

Certifications & Standards: CE
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information: 3 Year (1 Year Battery)
Directly Connected Equipment Guarantee: €150000
