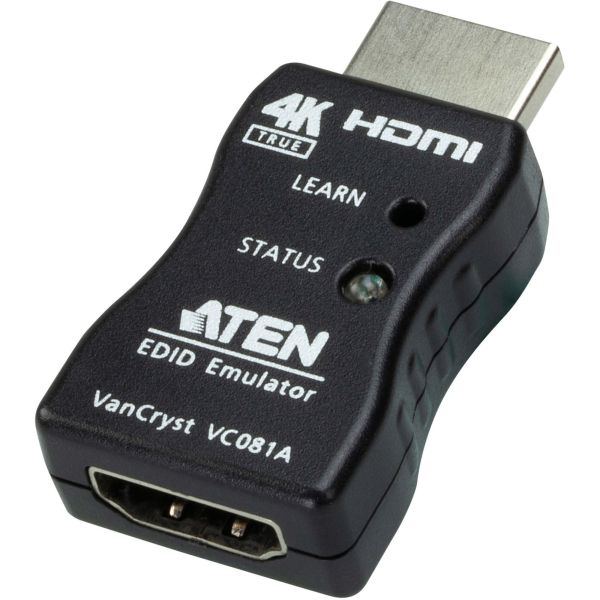

VanCryst True 4K HDMI EDID Emulator Adapter

Marketing Information

As a True 4K HDMI EDID Emulator Adapter , the VC081A is designed to emulate and store one set of the EDID from the connected display while facilitating 4K video transmission. By learning the EDID from the HDMI display and relaying it to the video source, the VC081A helps to eliminate video communication problems that occur due to the EDID data synchronization failure between the HDMI video source and the connected display.

This new member contains a unique "Learn Button Switch" to allow EDID to be effectively learned and saved. Once the EDID is learned, the VC081A can be used to keep a PC or server awake from a remote location over IP instead of the monitor. The VC081A is an ideal device for avoiding blank or blink display issues le...d by communication errors between sources and displays when integrating a Pro AV system.

Specifications
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: VC081A
Manufacturer Website Address: http://www.aten.com
Brand Name: VanCryst
Product Model: VC081A
Product Name: True 4K HDMI EDID Emulator Adapter
Product Type: Video Emulator
Technical Information
Functions: Video Emulation
Maximum Resolution: 3840 x 2160
Interfaces/Ports
Host Interface: HDMI
HDMI: Yes
Physical Characteristics
Form Factor: External
Height: 11.8 mm
Width: 24 mm
Length: 44 mm
Weight (Approximate): 80 g
