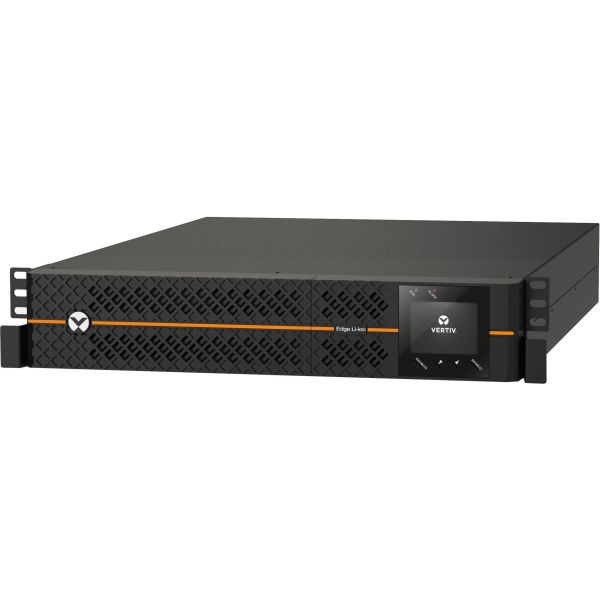

VERTIV Edge UPS 1500VA 230V Li-ion
£983.93
Limited Stock: Only 0 available
VERTIV Edge UPS 1500VA 230V Li-ion
VERTIV Edge UPS 1500VA 230V Li-ion is available to buy in increments of 1
Categories: General Purpose UPS, Default Category
| Battery Life | 5 Year |
|---|---|
| Waveform Type | Sinusoidal |
| Backup/Run Time (Half Load) | 18.50 Minute |
| Backup/Run Time (Full Load) | 8.70 Minute |
| Extra Power for Future Expansion | No |
| Backup/Run Time (With Optional Battery) | No |
| AVR | Yes |
| Application/Usage | Server Room/Network Closet/IT Equipment/Business-critical System |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 230 V AC |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Brand Name | VERTIV |
| Plug/Connector Type | IEC 60320 C14 |
| Input Voltage Range | 166 V AC - 278 V AC |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Network (RJ-45) | No |
| Product Family | Edge Lithium Ion |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| TAA Compliant | No |
| Energy Star | No |
| Product Color | Black |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)/Restriction of Hazardous Substances (RoHS) 2/Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)/Waste Electrical and Electronic Equipment Directive (WEEE) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information
The Vertiv Edge Lithium Ion uninterruptible power supply (UPS) is designed to safeguard critical equipment in server rooms, network closets and other edge and distributed IT applications. This 1.5 kVA UPS offers lower total cost of ownership, which can be up to 50% savings over lifetime. Lithium-ion batteries have greater power density, last about 2-3 times as long, recharge quicker and endure up to x10 more discharge cycles than traditional valve-regulated-lead-acid (VLRA) batteries. It includes automatic voltage regulation (AVR) technology to further extend battery life and provides plenty of runtime on battery during an outage for an orderly shutdown. This set-it-and-forget-it single phase UPS system comes with a five-year standard warrant...y for UPS and batteries, and together with the optional webcard for remote management, becomes ideal for remote or unmanned locations. This rack/tower UPS comes with a rotating LCD display to allow both rack and tower configurations.
Specifications
Manufacturer: Vertiv
Manufacturer Part Number: EDGELI-1500IRT2U
Manufacturer Website Address: http://www.vertivco.com
Brand Name: VERTIV
Product Line: Edge Lithium Ion
Product Model: Edge Lithium-Ion
Product Name: Edge UPS 1500VA 230V Li-ion
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C13
Dataline Protection: No
Protection Type:
Bypass Switch: No
Emergency Power OFF: Yes
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage:
Power Description
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.35 kW
Extra Power for Future Expansion: No
Input Voltage: 230 V AC
Input Voltage Range: 166 V AC - 278 V AC
Input Current: 10 A
Output Voltage:
Input Frequency: 65 Hz
Power Consumption: 16.80 W
Waveform Type: Sinusoidal
Surge Energy Rating: 624 J
Circuit Breaker: Yes
Management
Alarm: Yes
Controls/Indicators
Status Indicators:
Interfaces/Ports
Serial Port: No
VGA: No
Modem (RJ-11): No
Network (RJ-45): No
USB: Yes
USB (HID Compliant) Port: Yes
Total Number of Expansion Slots: 1
Battery Information
DC System Voltage: 48 V DC
Number of Batteries: 1
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 5000 mAh
Backup/Run Time (Full Load): 8.70 Minute
Backup/Run Time (Half Load): 18.50 Minute
Backup/Run Time (With Optional Battery): No
Battery Life: 5 Year
Typical Battery Recharge Time: 1.70 Hour
Hot Swappable: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -10°C - 45°C
Maximum Operating Elevation: 3 km
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 47 BTU/h
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 86 mm
Width: 438 mm
Depth: 410 mm
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 12.80 kg
Miscellaneous
Package Contents:Edge UPS 1500VA 230V Li-ion Rail Kit Tower Stand QIG Safety Sheet Output Power Cables Input Power Cables USB Cable
Additional Information:
Certifications & Standards:
Software Included: Vertiv Power Assist, Vertiv Power Insight
Energy Star: No
Country of Origin: China
TAA Compliant: No
Environmental Compliance:
Warranty
Limited Warranty: 5 Year
The Vertiv Edge Lithium Ion uninterruptible power supply (UPS) is designed to safeguard critical equipment in server rooms, network closets and other edge and distributed IT applications. This 1.5 kVA UPS offers lower total cost of ownership, which can be up to 50% savings over lifetime. Lithium-ion batteries have greater power density, last about 2-3 times as long, recharge quicker and endure up to x10 more discharge cycles than traditional valve-regulated-lead-acid (VLRA) batteries. It includes automatic voltage regulation (AVR) technology to further extend battery life and provides plenty of runtime on battery during an outage for an orderly shutdown. This set-it-and-forget-it single phase UPS system comes with a five-year standard warrant...y for UPS and batteries, and together with the optional webcard for remote management, becomes ideal for remote or unmanned locations. This rack/tower UPS comes with a rotating LCD display to allow both rack and tower configurations.
Specifications
Manufacturer: Vertiv
Manufacturer Part Number: EDGELI-1500IRT2U
Manufacturer Website Address: http://www.vertivco.com
Brand Name: VERTIV
Product Line: Edge Lithium Ion
Product Model: Edge Lithium-Ion
Product Name: Edge UPS 1500VA 230V Li-ion
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C13
Dataline Protection: No
Protection Type:
- Sag
- Surge
- Spike
- Transient
- Under Voltage
- Over Voltage
- Input Breaker
Bypass Switch: No
Emergency Power OFF: Yes
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage:
- Server Room
- Network Closet
- IT Equipment
- Business-critical System
Power Description
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.35 kW
Extra Power for Future Expansion: No
Input Voltage: 230 V AC
Input Voltage Range: 166 V AC - 278 V AC
Input Current: 10 A
Output Voltage:
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
Input Frequency: 65 Hz
Power Consumption: 16.80 W
Waveform Type: Sinusoidal
Surge Energy Rating: 624 J
Circuit Breaker: Yes
Management
Alarm: Yes
Controls/Indicators
Status Indicators:
- LCD Display
- Diagnostic LEDs
Interfaces/Ports
Serial Port: No
VGA: No
Modem (RJ-11): No
Network (RJ-45): No
USB: Yes
USB (HID Compliant) Port: Yes
Total Number of Expansion Slots: 1
Battery Information
DC System Voltage: 48 V DC
Number of Batteries: 1
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 5000 mAh
Backup/Run Time (Full Load): 8.70 Minute
Backup/Run Time (Half Load): 18.50 Minute
Backup/Run Time (With Optional Battery): No
Battery Life: 5 Year
Typical Battery Recharge Time: 1.70 Hour
Hot Swappable: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -10°C - 45°C
Maximum Operating Elevation: 3 km
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 47 BTU/h
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 86 mm
Width: 438 mm
Depth: 410 mm
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 12.80 kg
Miscellaneous
Package Contents:
Additional Information:
- Up to 3 times longer battery life
- Lowest TCO in the industry
- 5-year standard warranty on UPS and batteries
- Up to 10 minutes of runtime at full load (3kVA)
- Recharge to 90% in as little as 2 hours
- 45% Lighter
- 0.9 Power Factor
- Up to 10x more discharge cycles
- Sound Emission: <45dBA AVR mode, >70% load
- Country/Region: EMEA-APAC
- Battery Life: >5 years
- Protection Type: Outages
Certifications & Standards:
- CE
- EAC
- RCM
- CB Report
- ISTA 2A
- UN38.3
Software Included: Vertiv Power Assist, Vertiv Power Insight
Energy Star: No
Country of Origin: China
TAA Compliant: No
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 5 Year
