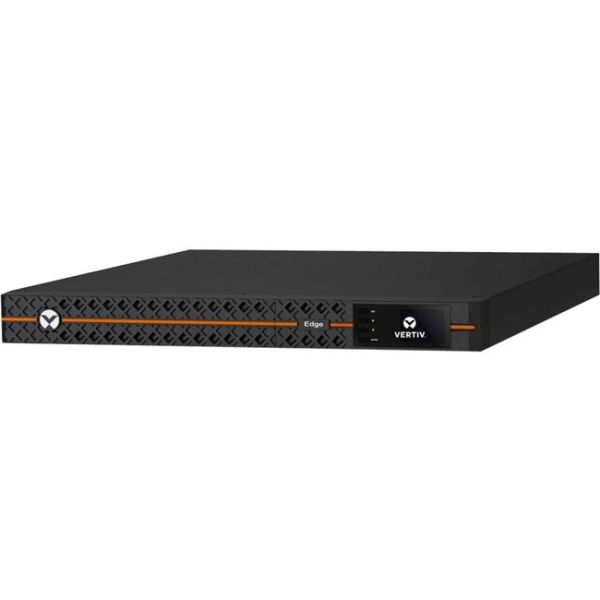

VERTIV EDGE-1000IRM1U 1kVA Rack-mountable UPS

Marketing Information
The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With compact 1U rack format, this 1000VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of pow...er ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen. It has a standard 3-year Vertiv UPS warranty.

More from the Manufacturer

Specifications
Manufacturer: Vertiv
Manufacturer Part Number: EDGE-1000IRM1U
Manufacturer Website Address: http://www.vertivco.com
Brand Name: VERTIV
Product Line: EDGE
Product Model: EDGE-1000IRM1U
Product Name: EDGE-1000IRM1U 1kVA Rack-mountable UPS
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C13
Cord Length: 3 m
Transfer Time: 6 ms
Phase: Single Phase
Application/Usage:

• Business
• Server
• Network
• Critical System
• Data Center
• IOT Device
• Data Storage
• Edge Computing

Power Description
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 900 W
Input Voltage: 278 V
Output Voltage:

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

Input Frequency: 65 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 624 J
Circuit Breaker: Yes
Management
Network Management: SNMP/Webcard
Alarm: Yes
Controls/Indicators
Status Indicators: Color and graphic LCD
Interfaces/Ports
Serial Port: No
VGA: No
Modem (RJ-11): Yes
Network (RJ-45): No
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
DC System Voltage: 24 V DC
Number of Batteries: 4
Battery Characteristics: Valve-regulated, Non-spillable
Battery Chemistry: Lead Acid
Battery Size: 6V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 15 Minute
Number of External Battery Cabinets: 6
Battery Life: 5 Year
Typical Battery Recharge Time: 3 Hour
Hot Swappable: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -25°C - 55°C
Maximum Operating Elevation: 3 km
Sound Emission: 45 dB
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 44 mm
Width: 438 mm
Depth: 480 mm
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 17 kg
Miscellaneous
Package Contents:

• EDGE-1000IRM1U 1kVA Rack-mountable UPS
• Adjustable 4-post rack mounting kit
• USB Cable
• Power Assist software (free download from Vertiv.com)
• Safety Manual
• Quick Installation Guide
• Input and output power cables (depending on rating and model type)

Software Included: Power Assist
Energy Star: No
Country of Origin: China
TAA Compliant: No
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
