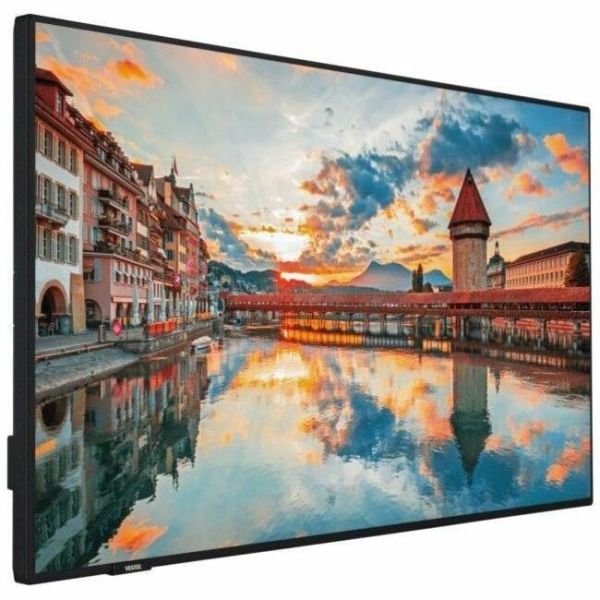

Vestel PN65D-4H Digital Signage Display

Marketing Information

Usb Security

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Usb Auto-Play

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Subtle Design

This series' displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb ...cover, detachable power plug and IR extender.

SoC Content Management

With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.

Scheduler

The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists.

Pixel Shifting

The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Open Platform Support

Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

External Device Connections

You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Display Control

Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Specifications
Manufacturer: Vestel Electronics
Manufacturer Part Number: PN65D4H
Manufacturer Website Address: http://vestel.co.uk
Brand Name: Vestel
Product Series: PN+
Product Model: PN65D-4H
Product Name: PN65D-4H Digital Signage Display
Product Type: Digital Signage Display
Technical Information
Bezel Width (Bottom): 14 mm
Bezel Width (Top): 10 mm
Bezel Width (Left): 10 mm
Bezel Width (Right): 10 mm
Panel Technology: In-plane Switching (IPS) Technology
Operation Hours: 24 Hours/7 Days
Processor & Chipset
Combined Processor Core: Quad-core
Processor Type: Cortex A55
Memory
Standard Memory: 2 GB
Memory Technology: DDR4 SDRAM
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 65"
Display Screen Type: LCD
Display Resolution: 3840 x 2160
Response Time: 8 ms
Backlight Technology: Slim Direct LED
Graphics Controller Model: Mali-G31 MP2
Orientation: Landscape/Portrait
Maximum LED Life: 5.7 Year
Video
Scan Format: 2160p
Dynamic Contrast Ratio: 50,000:1
Native Contrast Ratio: 1,200:1
Colour Depth: 8-bit+FRC
Brightness: 500 cd/m²
Color Gamut: 72% NTSC
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
Serial: Yes
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 1
Number of HDMI Inputs: 4
Number of HDMI Outputs: 1
Digital Audio Optical Output: Yes
Number of HDMI 2.0 Ports: 5
Software
Operating System: Android
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 90%
Physical Characteristics
VESA Mount Standard: 600 x 400
Mount Type: Wall Mountable
Height: 83.4 cm
Width: 145.6 cm
Depth: 7.4 cm
Weight (Approximate): 24.70 kg
Miscellaneous
Package Contents:

• PN65D-4H Digital Signage Display
• QSG
• IB
• Power cord
• Remote control unit
• RC battery
• Mounting kit
• IR extender cable

Application/Usage:

• Indoor
• Commercial
• Retail
• Quick Service Restaurant (QSR)
• Corporate
• Control Room
• Transportation
