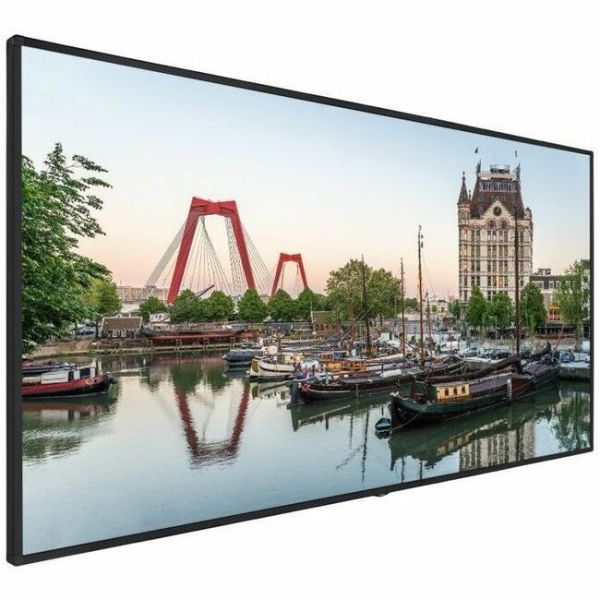

Vestel XN98D-4H Digital Signage Display

Marketing Information

Daisy Chain

The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.

Usb Security

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.

Usb Auto-Play

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

Subtle D...esign

This series' displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is desirable for its thinnest depth among our digital signage displays.

Signal Failover

Our displays have a protection for "No Signal". If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.

Pixel Shifting

The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.

Open Platform Support

Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.

External Device Connections

You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.

Display Control

Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.

Specifications
Manufacturer: Vestel Electronics
Manufacturer Part Number: XN98D4H
Manufacturer Website Address: http://vestel.co.uk
Brand Name: Vestel
Product Series: XN+
Product Model: XN98D-4H
Product Name: XN98D-4H Digital Signage Display
Product Type: Digital Signage Display
Technical Information
Video Wall Compatible: Yes
Bezel Width (Bottom): 21.40 mm
Bezel Width (Top): 21.40 mm
Bezel Width (Left): 21.40 mm
Bezel Width (Right): 21.40 mm
Panel Technology: In-plane Switching (IPS) Technology
Operation Hours: 24 Hours/7 Days
Processor & Chipset
Processor Type: Cortex A55
Processor Core: Quad-core (4 Core)
Memory
Standard Memory: 2 GB
Memory Technology: DDR4 SDRAM
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 98"
Display Screen Type: LCD
Display Resolution: 3840 x 2160
Backlight Technology: Direct LED
Graphics Controller Model: Mali-G31 MP2
Video
Scan Format: 2160p
Dynamic Contrast Ratio: 50,000:1
Colour Depth: 8-bit+FRC
Brightness: 500 cd/m²
Color Gamut: 72% NTSC
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
Serial: Yes
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 1
Number of HDMI Inputs: 4
Number of HDMI Outputs: 1
Software
Operating System:

• Android
• Android 9.0 Pie

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Physical Characteristics
Color Family: Black
Product Color: Black
VESA Mount Standard: 800 x 400
Height: 129.2 cm
Width: 221.6 cm
Depth: 9.8 cm
Weight (Approximate): 102.20 kg
Miscellaneous
Package Contents:

• XN98D-4H Digital Signage Display
• QSG
• IB
• Power cord
• Remote control unit
• RC battery
• Mounting kit
• IR extender cable
• WiFi/BT Dongle

Application/Usage:

• Retail
• Entertainment
• Corporate
• Security Control Room
• Indoor
• Commercial
• Professional Audio/Video
