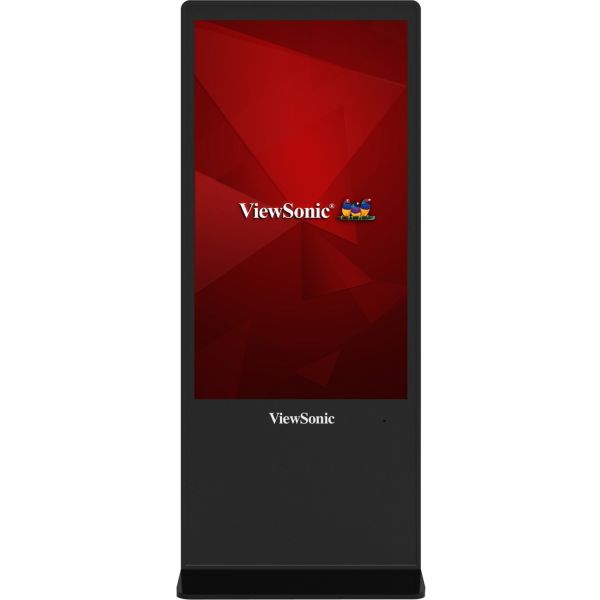

ViewSonic Digital ePoster EP5542 Digital Signage Display

Marketing Information

ULTRA HD RESOLUTION

With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

POWERFUL EMBEDDED SOC PLATFORM

The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.

FREE-STANDING DESIGN

This all-in-one digital ePoster kiosk features a sleek and slim premium design..., coupled with a free-standing form factor to deliver dynamic messaging in high-traffic areas.

OPTIONAL CONTENT MANAGEMENT SOFTWARE

Great for all venues and scenarios, the optional cloud-based Revel Digital CMS software lets users transfer multimedia content onto the display from PCs and laptops. This partner-certified content management tool also lets you format, schedule, and save playback settings.

ANTI-SCRATCH, ANTI-GLARE GLASS FACEPLATE

This display features a scratch-resistant surface that ensures a durable, consistent, high-quality viewing experience. In addition, an anti-glare film improves screen visibility in bright environments.

MEDIA PLAYER CRADLE WITH LOCKABLE SECURITY DOOR

A convenient media player cradle can accommodate a PC or an additional mounted media player, while a lockable door keeps things secure and out of sight. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices.

VERSATILE CONNECTIVITY

DisplayPort, HDMI, and VGA inputs give you the freedom and flexibility to connect to your dedicated graphics card and gaming console.

DUAL INTEGRATED SPEAKERS

Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.

EASY LAN CONTROL

This display has an integrated RJ45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can also remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface.

1-YEAR LIMITED WARRANTY

Have peace of mind in the quality and reliability of your ViewSonic display-backed by one of the industry's best pixel performance policies and a 1-year limited warranty.

More from the Manufacturer

Specifications
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: EP5542
Manufacturer Website Address: http://www.viewsoniceurope.com/uk/
Brand Name: ViewSonic
Product Line: Digital ePoster
Product Model: EP5542
Product Name: Digital ePoster EP5542 Digital Signage Display
Product Type: Digital Signage Display
Processor & Chipset
Processor Type: Cortex A73
Processor Core: Quad-core (4 Core)
2nd Processor Type: Cortex A53
Memory
Standard Memory: 2 GB
Memory Technology: DDR4 SDRAM
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 55"
Display Screen Type: LCD
Touchscreen: Yes
Display Resolution: 3840 x 2160
Backlight Technology: Direct LED
Video
Scan Format: 2160p
Brightness: 400 cd/m²
Network & Communication
Ethernet: Yes
Wireless LAN: No
Interfaces/Ports
USB: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of USB 2.0 Ports: 3
Number of HDMI Inputs: 3
Number of DisplayPorts: 1
Software
Operating System: Android 8.0 Oreo
Physical Characteristics
Height: 187 cm
Width: 76.9 cm
Depth: 40 cm
Weight (Approximate): 62.70 kg
Miscellaneous
Energy Star: Yes
