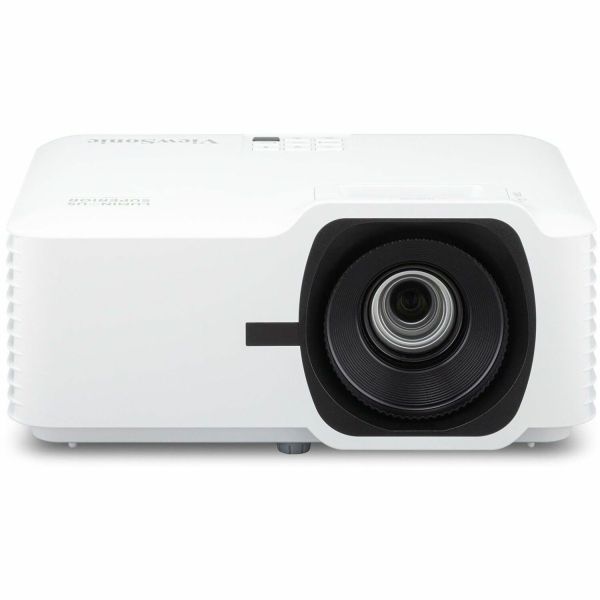

ViewSonic LS740HD 5,000 ANSI Lumens 1080p Laser Installation Projector

Marketing Information

The LS740HD belongs to ViewSonic's Luminous Superior series, a lamp-free high-brightness projector line up designed for commercial and educational spaces. With its adoption of the 3rd generation laser phosphor technology, it delivers 5,000 ANSI Lumens for up to 30,000 hours, ensuring bright and vivid images without lamp replacement. The lamp-free design offers an eco-friendly and cost-effective solution, while the projector's light weight and compact design reduces transportation costs. With up to 300" projection in 1080p Full HD with high native contrast, it is well-suited for boardrooms, lecture halls, and public spaces. This projector features a1.3x optical zoom, H/V keystone, 4 corner adjustment, 360° projection, and a portrait mod...efor easy setup and versatile applications.

Bright, Compact, Durable

The LS740HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods ofuse.

Bright Images for Large Venues

Delivering 5,000 ANSI Lumens, the LS740HD provides vibrant and sharp projection in 1080p FHD in all lighting conditions for auditoriums, boardrooms, public venues, and other expansive spaces.

Unmatched Contrasts, Enhanced Visibility

The projector's high native contrast ratio, achieved through its Texas Instruments 0.65"DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.

Ultra-large Screen with Lower Cost-per-inch

This easy-to-install projector allows for an image size of up to 300", offering a lower cost-per-inch compared to other types of commercial displays.

Easy and Cost-effective Installation

The LS740HD is 35% lighter in weight and 35% smaller in size compared to its predecessor and even most competing projectors in the market, greatly reducing the cost of transportation and increasing the ease of installation.

Save on Costs and Energy

With its advanced lamp-free light source, the LS740HD offers a highly energy-efficient and cost-saving display solution by consuming up to 51% less power than competing projectors.

Enhanced Installation Flexibility

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location with in a range, getting the desired image size without needing to change the existing interior design.

Get Perfectly-shaped Images Effortlessly

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

Versatile Creative Applications

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

Present the Best with Vibrant Colors

Impress any audience with ViewSonic's exclusive color technology, elevating your present ation with a true-to-life color experience.

More from the Manufacturer

Specifications
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: LS740HD
Manufacturer Website Address: http://www.viewsoniceurope.com/uk/
Brand Name: ViewSonic
Product Series: LS
Product Model: LS740HD
Product Name: LS740HD 5,000 ANSI Lumens 1080p Laser Installation Projector
Product Type: DLP Projector
Technical Information
Projection Method:

• Front
• Ceiling

Projection Lens
Minimum Focal Length: 16.90 mm
Maximum Focal Length: 21.61 mm
Maximum Diagonal Image Size: 7.62 m (300")
Optical Zoom: 1.3x
Minimum Projection Distance: 1 m
Maximum Projection Distance: 8 m
Lamp
Number of Lamps: 1
Lamp Type: Laser/Phosphor
Normal Mode Lamp Life: 20000 Hour
Economy Mode Lamp Life: 30000 Hour
Standard Mode Brightness: 5000 lm
Native Resolution: 1920 x 1080
Graphic Mode: Full HD
Native Aspect Ratio: 16:9
Contrast Ratio: 3,000,000:1
Minimum Vertical Sync: 24 Hz
Maximum Vertical Sync: 120 Hz
Video
Video Signal Standard: HDTV
Output Scan Format: 1080p
Audio
Speaker Included: Yes
Interfaces/Ports
HDMI: Yes
USB: Yes
Power Description
Operating Power Consumption: 210 W
Physical Characteristics
Product Color: White
Color Family: White
Form Factor:

• Wall Mountable
• Ceiling Mountable
• Floor Mountable

Height: 129 mm
Width: 286 mm
Depth: 216 mm
Weight (Approximate): 3 kg
Miscellaneous
Application/Usage:

• Board Room
• Lecture Hall
• Auditorium
• Presentation
• Museum
• Education
