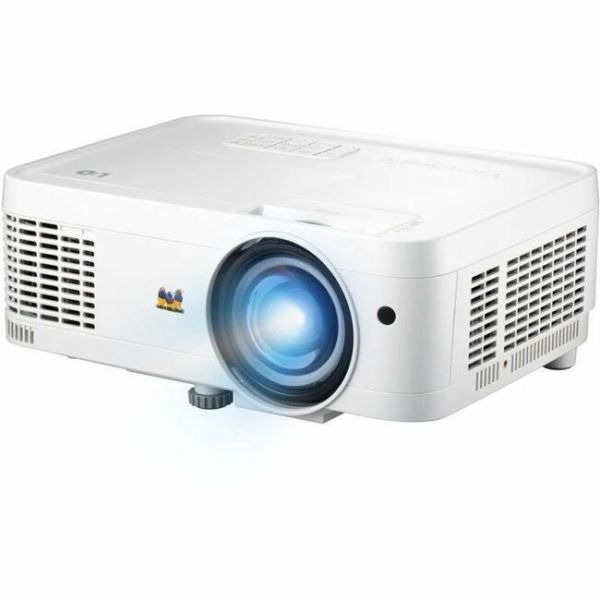

ViewSonic LSD300W-ST DLP Projector

Marketing Information

Product Description

The LSD300W-ST is a short-throw LED projector from ViewSonic, designed specifically for education environments. It delivers 3,300 ANSI Lumens of brightness and WXGA resolution, making it ideal for small to medium-sized classrooms. With a 0.49 short-throw ratio, it projects a 100" image from just 1.06 meters, ensuring clear visuals with minimal glare and shadows. Powered by third-generation LED technology, this lamp-free projector offers a 60,000-hour lifespan, helping reduce maintenance costs and eliminate the use of mercury-based lamps. Its sealed DLP engine ensures dustproof, filter-free operation with long-lasting color performance. Designed for intuitive operation, the LSD300W-ST features instant power ...on/off, horizontal/vertical keystone correction, 4-corner adjustment, and 360° projection, making it suitable for versatile installations-including floor projection in education settings. A built-in LAN control interface streamlines centralized device management and supports integration with Crestron, Extron, and ATEN systems.

Specifications
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: LSD300W-ST
Manufacturer Website Address: http://www.viewsoniceurope.com/uk/
Brand Name: ViewSonic
Product Model: LSD300W-ST
Product Name: LSD300W-ST DLP Projector
Product Type: DLP Projector
Technical Information
Projection Method:

• Front
• Ceiling

Projection Lens
Throw Type: Short Throw
Maximum Focal Length: 6.90 mm
Minimum Diagonal Image Size: 1524 mm
Maximum Diagonal Image Size: 7.62 m (300")
Minimum Projection Distance: 630 mm
Maximum Projection Distance: 1.58 m
Lamp
Number of Lamps: 1
Lamp Type: LED
Normal Mode Lamp Life: 60000 Hour
Standard Mode Brightness: 3700 lm
Colour Supported: 1.07 Billion Colors
Native Resolution: 1280 x 800
Graphic Mode: WXGA
Native Aspect Ratio: 16:10
Throw Ratio: 0.49
Contrast Ratio: 3,000,000:1
Video
Video Signal Standard: HDTV
Output Scan Format: 1080p
Audio
Speaker Included: Yes
Interfaces/Ports
HDMI: Yes
USB: Yes
Network (RJ-45): Yes
Power Description
Voltage Frequency: 60 Hz
Operating Power Consumption: 229 W
Physical Characteristics
Form Factor:

• Wall Mountable
• Ceiling Mountable

Height: 115 mm
Width: 294 mm
Depth: 237 mm
Weight (Approximate): 2.85 kg
Miscellaneous
Application/Usage:

• Education
• Class Room

Package Contents:

• LSD300W-ST DLP Projector
• 1 x Power Cord
• 1 x Remote Control
• 1 x VGA Cable
• Warranty Card (CN Only)
• Lens Cover
• QSG
