Wasp WDI4700 2D Barcode Scanner

£212.06

Limited Stock: Only 0 available

Wasp WDI4700 2D Barcode Scanner is available to buy in increments of 1

Categories: Barcode Scanners, Default Category

Application/Usage	Industrial/Ticketing/Retail/Light/Clean Manufacturing/Healthcare/Transportation/Entertainment/Commercial Service/Hospitality
Host Interface	USB
Product Type	Barcode Scanner
Limited Warranty	2 Year
Connectivity Technology	Cable
Form Factor	Handheld
Brand Name	Wasp
Scanning Distance	708.66 mm
Light Source	Laser
Scan Pattern	Omni-directional
Image Sensor Type	Imager
Product Color	Black/Yellow
Color Family	Dual Colour
Ingress Protection (IP) Rating	IP52
Cable Type Included	USB
Scanning Capability	1D/2D
Ethics - Environment	Rating Coming Soon
Ethics - Animal	Rating Coming Soon
Ethics - Human	Rating Coming Soon
Ethics - Integrity	Rating Coming Soon
Ethics - Durability	Rating Coming Soon
Ethics - Alert	Rating Coming Soon

Description

Marketing Information

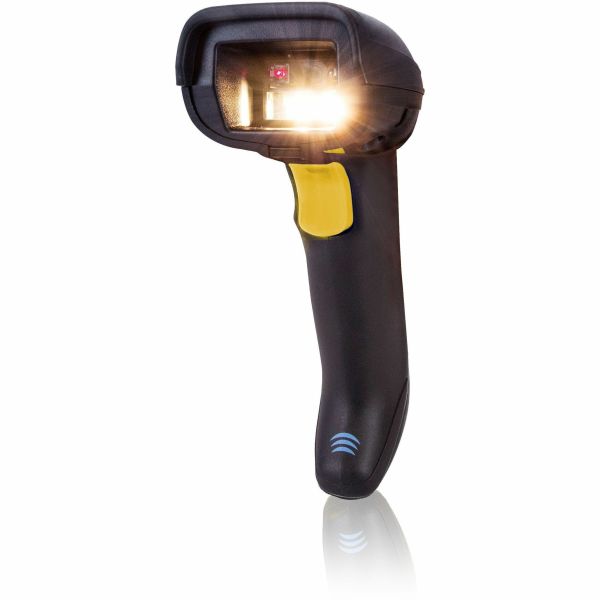

The new Wasp WDI4700 2D Scanner is a multipurpose digital imager designed to offer an ergonomic scanning experience to the user, and an outstanding performance thanks to its megapixel sensor with white-illumination 2D technology.
Specifications
Manufacturer: Wasp Barcode Technologies
Manufacturer Part Number: 633809007149
Manufacturer Website Address: http://www.waspbarcode.co.uk
Brand Name: Wasp
Product Model: WDI4700
Product Name: WDI4700 2D Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capabili...ty:

Barcode Symbology Supported: 1D codes:

GS1 DataBar™ linear codes.
Aztec Code
China Han Xin Code
Data Matrix
MaxiCode
Micro QR Code
QR Code
Australian Post
British Post
China Post
IMB
Japanese Post
KIX Post
Planet Code
Planet Code
Postnet
Royal Mail Code (RM4SCC) EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites
Digimarc Barcodes

Light Source: Laser
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Omni-directional
Scanning Distance: 708.66 mm
Features:

Scan Button
Notification LED
3GL
Beep
Ergonomic Design

Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:

6.0 ft. (1.8 m)

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 0.25 mm
Minimum Element Resolution (DataMatrix): 0.19 mm
Maximum Element Resolution (DataMatrix): 0.38 mm
Minimum Element Resolution (PDF417): 0.13 mm
Maximum Element Resolution (PDF417): 0.25 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Interfaces/Ports
Host Interface: USB
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Dual Colour
Product Color:
