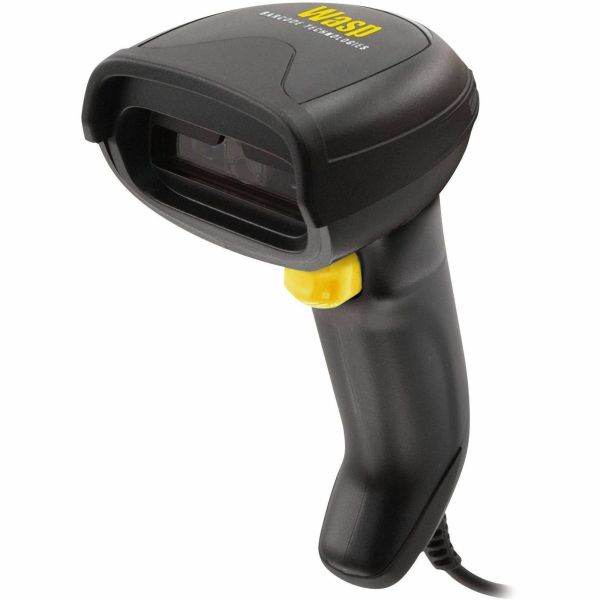

Wasp WDI9600 USB Laser Barcode Scanner

1072202030

£168.25

Wasp WDI9600 USB Laser Barcode Scanner is available to buy in increments of 1

Environment, key point: Not yet rated

Human, key point: Not yet rated

Animal, key point: Not yet rated

Social, key point: Not yet rated

Durability, key point: Not yet rated

Categories: Barcode Scanners, Default Category

More Information

Application/Usage	Retail/Light/Clean Manufacturing/Healthcare/Laboratory/Pharmacy/Ticketing/Entertainment/Commercial Service
Host Interface	USB
Product Type	Barcode Scanner Kit
Platform Supported	Smartphone
Limited Warranty	2 Year
Connectivity Technology	Cable
Form Factor	Handheld
Brand Name	Wasp
Scanning Distance	1.47 m
Light Source	Laser
Scan Pattern	Linear
Image Sensor Type	CCD
Product Color	Black/Yellow
Color Family	Dual Colour
Ingress Protection (IP) Rating	IP52
Cable Type Included	USB
Scanning Capability	1D
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS)/Restriction of Hazardous Substances (RoHS)
Ethics - Environment	Rating Coming Soon
Ethics - Animal	Rating Coming Soon
Ethics - Human	Rating Coming Soon
Ethics - Integrity	Rating Coming Soon
Ethics - Durability	Rating Coming Soon

Description

Marketing Information
Wasp WDI9600 USB Laser Barcode Scanner The new Wasp WDI9600 USB Laser barcode scanner is a multipurpose linear imager designed to provide best-in-class reading performance with an exceptional depth of field. The WDI9600s soft line viewfinder technology enables the operator to effortlessly read both high density and low-resolution barcodes, as well as hard-to-read, poor quality, and damaged barcodes without human intervention. The viewfinder technology enables operators to maximize productivity while reducing accidental reads in a multiple barcode environment. Adding to the WDI9600s versatility, barcodes can be scanned directly from mobile device screens or through plexiglass panels. Ease of use is a hallmark of the WDI9600 which includes uniq...ue motionix technology that provides operators the flexibility to easily transition between handheld and stand-mounted operations. The scanner easily reads fast moving barcodes, including barcodes at awkward angles or in poorly lit or very bright lighting. The reader features a disinfectant-ready enclosure which can withstand harsh chemical cleaning. For added convenience, the WDI9600 can directly interface with USB-based solutions.
Specifications
Manufacturer: Wasp Barcode Technologies
Manufacturer Part Number: 633809009013
Manufacturer Website Address: http://www.waspbarcode.co.uk
Brand Name: Wasp
Product Model: WDI9600
Product Name: WDI9600 USB Laser Barcode Scanner
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

1D/Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes

Light Source: Laser
Image Sensor Type: CCD
Scan Rate: 400 scan/s
Scan Mode: Trigger
Scan Pattern: Linear
Scanning Distance: 1.47 m
Features:

Notification LED
Beep
3GL
Scan Button

Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Maximum Ambient Light: 130000 lux
Drop Specification:

Withstands repeated drops from 6.0 ft (1.8 m) onto a concrete surface.

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 0.51 mm
Illumination Type: LED
Interfaces/Ports
Host Interface: USB
Power Description
Input Current: 350 mA
Standby Current: 60 mA
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Dual Colour
Product Color:
