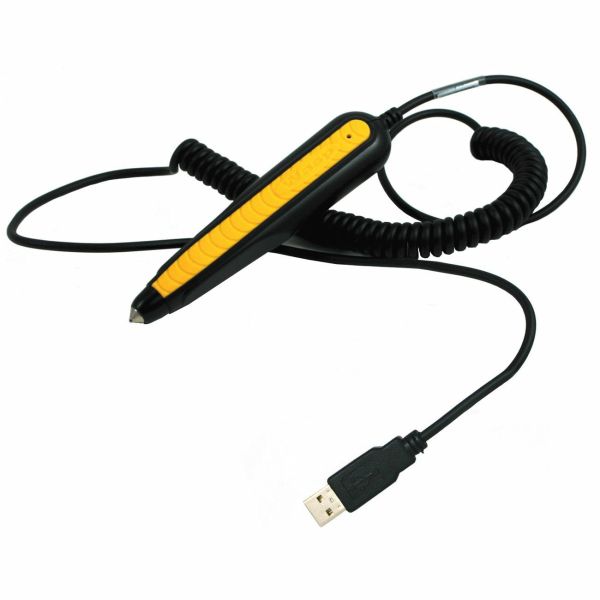

Wasp WWR2905 Bar Code Reader

Marketing Information

The Wasp WWR2905, the perfect tools for repetitive data entry. This Pen-Style scanner is the reliable, cost-effective way to read bar codes. Scanned data appears on screen as if typed it from keyboard. Scan into any DOS or Windows application, it takes just minutes to set up. Increase productivity and reduce costly data entry errors with the easy to use WWR2905 Pen scanner.

Specifications
Manufacturer: Wasp Barcode Technologies
Manufacturer Part Number: 633808502782
Manufacturer Website Address: http://www.waspbarcode.co.uk
Brand Name: Wasp
Product Model: WWR2905
Product Name: WWR2905 Bar Code Reader
Prod...uct Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

• Codabar
• Code 39
• Code 39 Full ASCII
• Code 11
• Code 32
• Code 93
• Code 128(including UCC/EAN 128)
• EAN/JAN-13 (plus supplements)
• EAN/JAN-8 (plus supplements)
• Industrial 2 of 5
• Interleaved 2 of 5
• ISBN
• Matrix 25
• MSI/PLESSEY
• UPC-A (plus supplements)
• UPC-E (plus supplements)
• China Postal Code
• RSS-14
• Telepen

Light Source: LED
Maximum Scan Resolution: 0.13 mm
Depth of Field:

• 1mm

Cable Type Included: USB
Interfaces/Ports
Host Interface: USB
Power Description
Input Voltage: 5 V DC
Physical Characteristics
Form Factor: Handheld
Height: 29.6 mm
Width: 150 mm
Depth: 22 mm
Weight (Approximate): 76 g
Miscellaneous
Package Contents:

• WWR2905 Bar Code Reader
• USB cable

Additional Information:

USB Cable separate

Certifications & Standards:

Safety certification:

• FCC class A
• CE approval
