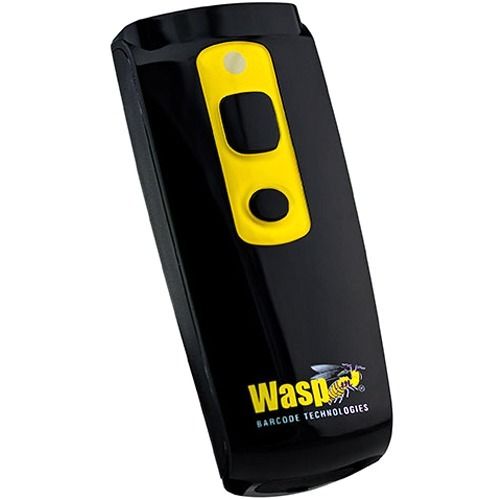

Wasp WWS250i Pocket Barcode Scanner (USB)

Marketing Information
Wasp WWS250i Wireless Scanner The Wasp WWS250i wireless barcode scanner gives you the flexibility to wirelessly transmit barcode data to your iOS, Android, or Windows smartphone or tablet device from up to 30' away. The pocket-sized form factor makes it ideal for environments where mobility is vital, including retail, office, healthcare, warehouse management and more. Pair the scanner with your mobile device or PC for a quick mobile solution. Delivering fast and accurate scanning performance, the WWS250i utilizes an aggressive scan engine to quickly read all popular (1D) and (2D) barcodes, including QR codes, from up to 20" away. The WWS250i can easily read colored, poorly printed or even damaged barcodes in nearly any amount of light - from ...total darkness to bright sunlight. With 2MB of internal storage and a rechargeable lithium-ion battery, it is capable of holding up to 20,000 barcode data and running for an entire shift, capturing up to 7,600 scans on a single charge. Built for busy, high-use environments, the WWS250i has an IP55 rating against moisture and dust and its durable housing is able to withstand multiple 5-foot drops to concrete -preventing downtime and costly repairs. Haptic feedback, along with the LED and beep tone indicators, inform users of the power status, wireless connectivity, and barcode detection. The WWS250i includes a 2-year manufacturer's warranty covering material defects. If you would like to upgrade this coverage, WaspProtect extended service plans cover accidental breakage and can provide coverage beyond the original warranty.
Specifications
Manufacturer: Wasp Barcode Technologies
Manufacturer Part Number: 633809000201
Manufacturer Website Address: http://www.waspbarcode.co.uk
Brand Name: Wasp
Product Model: WWS250i
Product Name: WWS250i Pocket Barcode Scanner (USB)
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Codabar
• Code 11
• Code 32(PARAF)
• Code 128
• Code 2 of 5
• Code 39
• Code 93
• EAN/JAN-13
• EAN/JAN 8
• EAN-UCC Emulation
• IATA Code 2 of 5
• Interleaved 2 of 5
• Matrix 2 of 5
• MSI
• GS1 DataBar
• TCIF Linked Code 39
• UPC-A
• UPC E
• GS1 Databar
• UPC-A/EAN-13 with Extended coupon Code
• Coupon GS1
• GS1 Codebar

2D:

• Aztec Code
• Codablock A
• Codablock F
• Data Matrix
• EAN-UCC Composite Codes
• MaxiCode
• MicroPDF417
• PDF417
• QR Code
• Micro QR Code
• Chinese Sensible(Han Xin) code

Light Source: LED
Image Sensor Type:

• CCD
• Imager

Scan Pattern: Linear
Scanning Distance: 9.14 m
Features:

• Notification LED
• Beep

Cable Type Included: USB
Field of View (Horizontal): 38°
Field of View (Vertical): 29°
Drop Specification:

5ft./1.5M

Minimum Print Contrast: 45%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Memory
Standard Memory: 2 MB
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 1000 mAh
Environmental Conditions
Operating Temperature: -10°C to 40°C
Storage Temperature: -20°C to 65°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Durability:

• Water Resistant
• Dust Resistant
• Drop Resistant

Height: 21.6 mm
Width: 42.4 mm
Length: 102.1 mm
Weight (Approximate): 70 g
Miscellaneous
Additional Information:

USB Cable separate

Ingress Protection (IP) Rating: IP55
Application/Usage:

• Retail
• Healthcare
• Warehouse

Platform Supported:

• Android
• iOS
• Smartphone
• Tablet
• Windows
• PC
