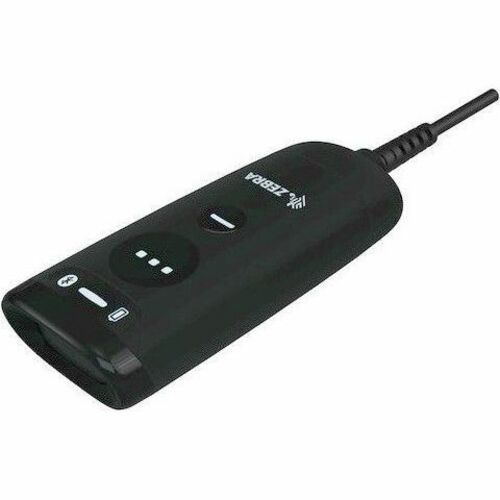

Zebra CS60 Series Companion Scanner

Marketing Information

ULTRA-VERSATILE WITH A FIRST-OF-ITS-KIND CONVERTIBLE DESIGN

Do you need a cordless scanner for inventory in the store aisles and a corded hands-free scanner at checkout? What if you didn't have to deploy different scanners for different tasks? Introducing the CS60 Series Companion Scanner, featuring a groundbreaking design that easily converts between corded and cordless operation, handheld and hands-free, as your needs change. As a cordless scanner, the CS60 is small enough to tuck in a pocket and offers the latest mobile technology including contactless charging. As a corded scanner, the CS60 offers compact scanning for the checkout counter, self-service kiosk and more. Whether you purchase a corded or cordless model up fron...t, you can change modes at any time for superior investment protection. And you get Zebra's industry-leading scanning performance and our unique DataCapture DNATM industry-preferred management tools that make it easier than ever to integrate, deploy and manage your scanners.

Add the optional presentation stand to a corded scanner to automatically switch between hands-free and handheld modes. This unparalleled versatility minimizes investment risk as it's easy to meet new workflow needs or redeploy CS60 scanners to a different application.

Proven Scanning Performance You Can Trust

A high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology provide unparalleled performance on the most challenging barcodes - including poorly printed, damaged dirty, crinkled, low-contrast, glossy, and electronic barcodes on dimly lit mobile phone displays. When you choose the CS60, you get Zebra's world-renowned quality and reliability.

Effortless Multi-Tasking with a Second Programmable Button

Your workers may be scanning at the point of sale one minute, then taking inventory the next. That's why the CS60 has a second programmable button that can be used to instantly toggle between two host applications. With a quick press of the button, workers can send data to the right application in the proper format and order.

Easy to Clean Seamless Construction

With its monocoque design, inductive sensing touch buttons and contactless charging, the scanner has a crevice-free surface that's easy to clean and keep clean shift after shift.

First-Of-Its-Kind Convertible Design

Do you need a cordless companion scanner paired to a cradle or mobile device, a corded handheld or a hands-free presentation scanner connected to a checkout stand? With the CS60, you don't have to choose. Simply swap the battery and corded USB converter at any time to change between corded and cordless scanning.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: CS6080SR400004QVW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: CS60
Product Model: CS6080
Product Name: CS60 Series Companion Scanner
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• Base 32 (Italian Pharma)
• Codabar/NW7
• Code 11
• Code 39
• Code 93
• Code 128
• GS1 DataBar
• I 2 of 5
• Korean 3 of 5
• MSI Plessey
• UPC/EAN

2D:

• Aztec
• Composite codes
• Datamatrix
• Dotted datamatrix
• Dotcode
• Han xin
• Maxicode
• Pdf417
• Micro pdf417
• Postal codes
• Qr code
• Micro qr
• Tlc-39
• Securpharm

OCR:

• OCR-A
• OCR-B
• MICR
• US Currency

Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Depth of Field:

• 2.4 in./6.1 cm to 9.5 in./24.1 cm @ 5 mil Code 39
• 2.5 in./6.4 cm to 26.0 in./66.0 cm @ 20 mil Code 39
• 2.8 in./7.1 cm to 9.0 in./22.9 cm @ 5 mil Code 128
• 2.4 in./6.1 cm to 8.0 in./20.3 cm @ 6.7 mil PDF 417
• 1.8 in./4.6 cm to 19.5 in./49.5 cm @ 13 mil (100%) UPC
• 2.9 in./7.4 cm to 8.0 in./20.3 cm @ 10 mil Data Matrix
• 1.2 in./3.0 cm to 14 in./35.6 cm @ 20 mil QR

Scan Pattern: Area
Scanner Range: Standard Range
Scanning Distance: 660.40 mm
Features:

• Diagnostic Reporting
• Notification LED
• Beep
• Vibration

Cable Type Included: USB
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Motion Tolerance: 508 mm/s
Maximum Ambient Light: 108000 lux
Drop Specification:

• Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete

Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 960
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Network & Communication
Bluetooth: Yes
Radio Frequency: Yes
Interfaces/Ports
Host Interface: USB
Power Description
Standby Current: 90 mA
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Polymer (Li-Polymer)
Battery Capacity: 745 mAh
Maximum Battery Run Time: 18 Hour
Maximum Battery Recharge Time: 6 Hour
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Midnight Black
Durability:

• Impact Resistant
• Spill Resistant
• Water Proof
• Dust Proof

Height: 22.9 mm
Width: 45.7 mm
Depth: 109.2 mm
Weight (Approximate): 83 g
Miscellaneous
Package Contents:

• 1 x CS60 Series Companion Scanner
• 1 x QI Pad Charger
• 1 x USB-C Qi Pad Cable
• 1 x Cradle

Ingress Protection (IP) Rating: IP65
Application/Usage:

• Retail
• Inventory
• Merchandising
• Hospitality
• Ticketing
• Logistics
• Light/Clean Manufacturing
• Asset Tracking

TAA Compliant: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
