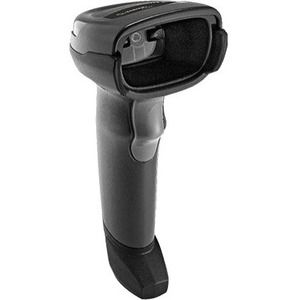

Zebra DS2278 Handheld Barcode Scanner

Marketing Information

COST-EFFECTIVE UPGRADE PATH

If you use Zebra's 1D LS2208 scanners today, you can use the same universal cables with the DS2200 Series, allowing you to leverage your existing accessory investment to minimize the cost of upgrading to a 1D/2D imager.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: DS2278-SR7UMC00AZW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: DS2200
Product Model: DS2278
Product Name: DS2278 Handheld Barcode Scanner
Product Type: Barcode Scanner
Technical Inf...ormation
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• Code 39
• Code 128
• Code 93
• Codabar/NW7
• Code 11
• MSI Plessey
• UPC/EAN
• I 2 of 5
• Korean 3 of 5
• GS1 DataBar
• Base 32 (Italian Pharma)

2D:

• PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode
• QR Code
• Micro QR
• Chinese Sensible (Han Xin)
• Postal Codes

Image Sensor Type: Imager
Scan Pattern: Omni-directional
Scanning Distance: 368.30 mm
Field of View (Horizontal): 33°
Field of View (Vertical): 25°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 127 mm/s
Maximum Ambient Light: 107600 lux
Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 0.10 mm
Minimum Element Resolution (DataMatrix): 0.15 mm
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Product Color: Twilight Black
Height: 175.3 mm
Width: 66 mm
Depth: 99.1 mm
Weight (Approximate): 3.40 kg
Miscellaneous
Ingress Protection (IP) Rating: IP52
Application/Usage:

• Hospitality
• Retail
• Transportation
• Logistics
• Government
• Manufacturing
• Industrial

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
