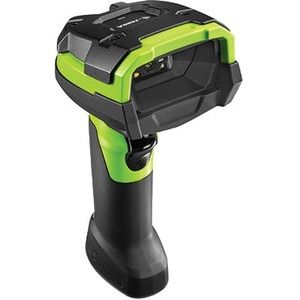

Zebra DS3678-HD Handheld Barcode Scanner

Marketing Information
Unstoppable performance for high density 1D/2D barcodes

As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world's toughest environments - the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

And since these scanners also capture standard barcodes in virtually any condition, you get a real value - unstoppable performance in a single flexible de...vice that can meet scanning needs from the assembly line to the warehouse.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: DS3678-HD2F003VZWW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: 3600
Product Model: DS3678-HD
Product Name: DS3678-HD Handheld Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Code 39
• Code 128
• Code 93
• Codabar/NW7
• Code 11
• MSI Plessey
• UPC/EAN
• I 2 of 5
• Korean 3 of 5
• GS1 DataBar
• Base 32 (Italian Pharma)

2D:

• PDF417
• Micro PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode
• QR Code
• Micro QR
• Chinese Sensible (Han Xin)
• Postal Codes

Image Sensor Type: Imager
Network & Communication
Bluetooth: Yes
Physical Characteristics
Form Factor: Handheld
Product Color: Industrial Green
Height: 185.4 mm
Width: 76.2 mm
Depth: 142.2 mm
Weight (Approximate): 411.1 g
Miscellaneous
Additional Information:

USB Cable separate

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
