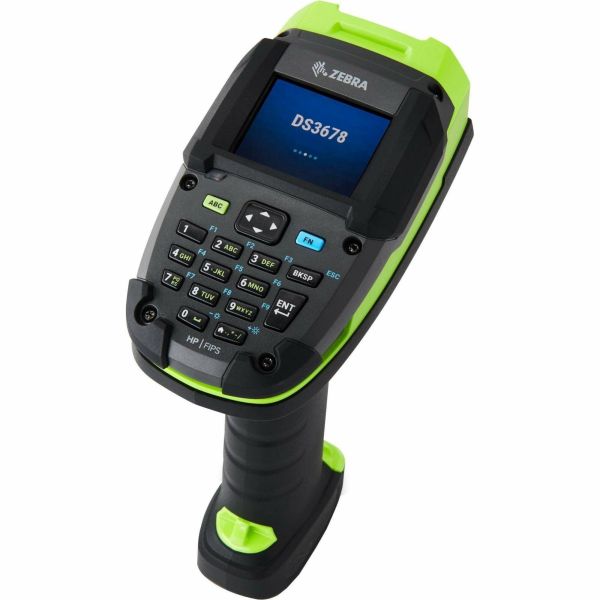

Zebra DS3600-KD DS3678-KD Barcode Scanner Kit

Marketing Information

Unstoppable performance with the versatility of a keypad and color display Warehouses, retailers and manufacturers face unrelenting pressure to deliver more - and to do it faster and more accurately.

Rise to meet the challenge with the DS3600-KD Ultra-Rugged Scanner with Keypad and Color Display. Built for your toughest environments, the DS3600-KD is virtually indestructible, including an enhanced 10 ft./3 m drop spec to concrete. The scanner reads barcodes in any condition, whether they're in hand or as far as 7 ft./2.1 m away. Workers can key in data, such as adding quantity and location, with the ergonomic keypad and color display. Pre-built applications offer the same 'point and shoot' simplicity of a scanner and enable w...orkers to complete picking, putaway and inventory tasks with amazing efficiency and accuracy. And DataCapture DNA, Zebra's exclusive software ecosystem, takes scanner performance far beyond the basics - simplifying every stage of the scanning experience over the life of your device

Ultra-rugged - the most indestructible design in its class

Zebra ultra-rugged scanners earned their name for a reason - you won't find a tougher family of scanners. The DS3600-KD has the highest drop, tumble and sealing specifications in its class. It can survive 10 ft./3 m drops to concrete and 7,500 tumbles. With dual IP65/IP68 sealing, the DS3600-KD is dust proof, can handle the force of jetting water and be fully submerged in water. Built to withstand extreme heat, cold and humidity, the DS3600-KD can be used anywhere - indoor, outdoor and even in the freezer.

Scan it all - at astonishing speeds

Workers can capture virtually any 1D or 2D barcode as fast as they can pull the trigger, from as far as 7 ft./2.1 m away. Powered by Zebra's exclusive PRZM Intelligent Imaging technology and the highest sensor resolution in its class, the DS3600-KD instantly captures the most problematic barcodes - including barcodes that are dirty, damaged, poorly printed and under shrinkwrap.

The first ultra-rugged scanner with a color display and keypad

Make picking, inventory and point of sale tasks more efficient with the keypad and color display. The ergonomic backlit keypad is well designed for one-handed operation. The color display provides a more intuitive, modern experience and the display brightness automatically adjusts for easy viewing in any lighting condition

Pre-built applications ready to use right out of the box

The DS3600-KD takes the complexity out of app development and integration. Start using our pre-built applications on day one - including the ability to add quantity and/or location data to any scanned barcode, confirm that the contents inside a container match the outer label, and even add location data during inventory counts while roaming away from the host. There's virtually no learning curve for workers - if they can use a scanner, they can use the pre-built applications. And the ability for future customization can meet specific application needs.

Capture OCR, photos and documents

The DS3600-KD makes it easy to take high quality photos for documentation. With Image Viewer, workers can quickly check an image before sending it to the host. Zebra's Intelligent Document Capture automatically de-skews and brightens document images. And support for multiple OCR fonts enables fast, easy data transfer.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: DS3678-HP3U42A2SKW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: DS3600-KD
Product Model: DS3678-KD
Product Name: DS3600-KD DS3678-KD Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D:

• PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes

OCR:

• OCR-A/B, MICR-E13B, US Currency Serial Number

IUID:

• Support Supports IUID parsing, the ability to read and separate IUID fields per application requirements

Image Sensor Type: Imager
Scan Mode: Trigger
Scanning Distance: 2.03 m
Features:

• Vibration
• Notification LED
• Beep
• Data Formatter
• Ergonomic Design

Number of Keys: 19
Keypad Type: Alphanumeric
Cable Type Included: USB
Field of View (Horizontal): 31°
Field of View (Vertical): 23°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 108000 lux
Drop Specification:

• Withstands multiple 10.0 ft./3.0 m drops to concrete at room temperature
• Withstands multiple 8.0 ft./2.4 m drops to concrete at -4° F to 122° F/-20° C to 50° C

Minimum Print Contrast: 15%
Minimum Element Resolution (DataMatrix): 0.19 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Image Sensor Resolution: 1280 x 960
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 25kV
Contact Electrostatic Discharge (+/-): 10kV
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Power Description
Power Supply Included: Yes
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3100 mAh
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Color Family: Dual Colour
Product Color:

• Black
• Green
• Industrial Green

Durability:

• Water Proof
• Water Resistant
• Dust Proof

Height: 190.5 mm
Width: 78.7 mm
Depth: 142.2 mm
Miscellaneous
Ingress Protection (IP) Rating:

• IP67
• IP65
• IP68

Application/Usage:

• Warehouse
• Self-checkout
• Picking
• Packing
• Inventory
• Asset Tracking
• Retail
• Manufacturing
• Distribution
• Outdoor
• Industrial
