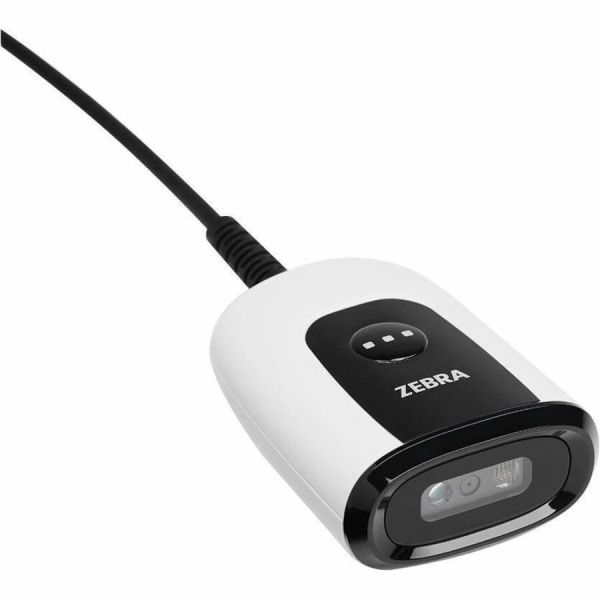

Zebra DS55 DS5502-LB Barcode Scanner

Marketing Information

Proven scanning performance in a compact, fits anywhere design built for the lab

Purpose built for medical labs, pharmacies and patient admissions, the DS55 Series for Labs Fixed Mount Scanner enhances clinical workflows, reduces errors and improves patient safety. With a tiny footprint, the DS55 Series fits into the smallest of spaces, while its modern and wipeable design is ideal for many medical settings. Flexible mounting options, including support for third-party accessories, enable the DS55 Series to meet a wide range of applications. Zebra's proven scanning performance offers unparalleled productivity and ease of use, with flawless scanning of the many types of barcodes found in labs and pharmacies. Value-added tools se...amlessly capture data from driver's licenses, blood bags and medical equipment to streamline and error-proof more workflows. And Zebra DNA ensures maximum performance year after year and makes it easier than ever to integrate, deploy and manage your scanners.

Purpose Built for Labs and Pharmacies

Give Every User a Better Scanning Experience

Both seasoned lab employees and incoming patients can count on first-time, every-time scanning with Zebra's Intelligent Imaging technology. A megapixel sensor delivers 184% higher resolution than the previous generation DS457 for superior performance on damaged and poorly printed barcodes. Fast swipe speeds ensure barcodes are captured as quickly as they're presented. A large, omni-directional field of view makes scanning easier than ever, as there's less need to carefully position barcodes for a successful scan.

Track Medications, Specimen Samples and More

The DS55 Series easily and accurately captures the many kinds of barcodes commonly used in pharmacies and labs - from smaller high density barcodes on microscope slides to curved barcodes on medicine vials and bags. White illumination LEDs make it easy to scan barcodes on color-coded specimen trays and biopsy cassettes.

Wipeable Housing is Easy to Clean

With IP54 sealing and a purpose-built design with no exposed openings, the DS55 Series allows for safe and frequent wipedowns - critical in lab and hospital settings.

Versatility Redefined - One Scanner Meets Multiple Needs

Fits in the Smallest of Spaces

The tiny DS55 Series is ideal wherever a zero or minimal footprint is required. At just 1.2 in H x 2.2 in W x 2.8 in D (3.0cm H x 5.6cm W x 7.2cm D), the scanner can be mounted just about anywhere - attached to a lab workstation or pharmacy register or under the admissions desk for a true zero footprint.

Easy Integration into Self-Service Solutions

The DS55 Series can be integrated into the most space-constrained solutions to bring world-class scanning performance to patient check-in kiosks, pharmacy workstations and more. Integration into your product designs is easy. The scanner's compact, low profile design combined with multiple mounting options allow for a sleek, clean look. If you have a Zebra DS457 deployed today, the DS55 Series offers similar dimensions and matching mounting hole locations for an easy replacement.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: DS5502-LB4000WZZWW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: DS55
Product Model: DS5502-LB
Product Name: DS55 DS5502-LB Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Area
Scanning Distance: 911.86 mm
Features:

• Notification LED
• Data Formatter
• Data Parser
• Diagnostic Reporting

Field of View (Horizontal): 48°
Field of View (Vertical): 30°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Image Formats:

• BMP
• JPEG
• TIFF

Maximum Ambient Light: 107600 lux
Drop Specification:

• Designed to withstand multiple drops at 5 ft (1.5m) to concrete

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Fixed Mount
Rugged: Yes
Color Family: White
Product Color: Alpine White
Durability:

• Drop Resistant
• Spill Resistant

Height: 30.5 mm
Width: 55.9 mm
Depth: 71.1 mm
Weight (Approximate): 65.2 g
Miscellaneous
Ingress Protection (IP) Rating: IP54
Application/Usage:

• Healthcare
• Laboratory
• Pharmacy
• Specimen Collection
• Self Service

Platform Supported:

• PC
• iOS
• Android
• Linux

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)
