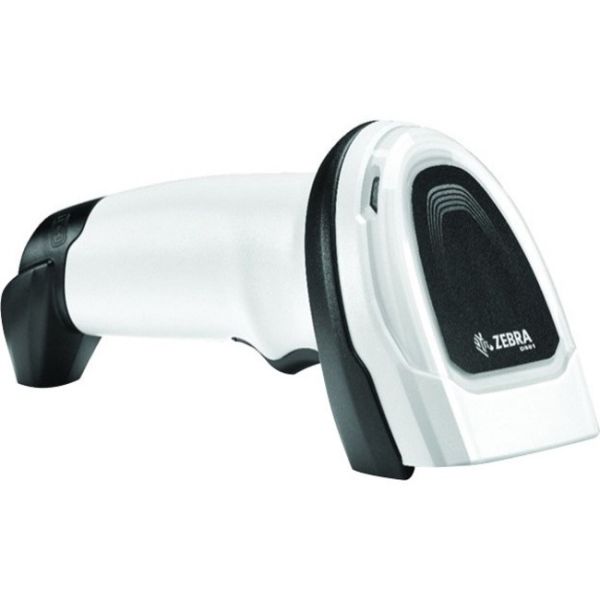

Zebra DS8178-HC Handheld Barcode Scanner

Marketing Information
IMPROVE PATIENT CARE

Whether you choose the corded or cordless model, the DS8100-HC Series provides the tools nurses and other healthcare personnel need to perform everyday duties faster and more accurately and provide their patients with the best of care - from medication administration to blood verification and administration, specimen collection, admission, inventory management and more.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: DS8178-HCMF00BVMWW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: DS8100-HC
Product Model: ...DS8178-HC
Product Name: DS8178-HC Handheld Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Code 39
• Code 128
• Code 93
• Codabar/NW7
• Code 11
• MSI Plessey
• UPC/EAN
• I 2 of 5
• Korean 3 of 5
• GS1 DataBar
• Base 32 (Italian Pharma)

2D:

• PDF417
• Micro PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode
• QR Code
• Micro QR
• Chinese Sensible (Han Xin)
• Postal Codes

Light Source: LED
Image Sensor Type: Imager
Field of View (Horizontal): 48°
Field of View (Vertical): 37°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Image Formats:

• JPEG
• BMP
• TIFF

Maximum Ambient Light: 96840 lux
Drop Specification: Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Minimum Print Contrast: 16%
Minimum Element Resolution (Code 39): 0.08 mm
Network & Communication
Bluetooth: Yes
Physical Characteristics
Form Factor: Handheld
Product Color: Healthcare White
Height: 167.6 mm
Width: 66 mm
Depth: 106.7 mm
Weight (Approximate): 235.3 g
Miscellaneous
Package Contents: Standard cradle, presentation cradle, wall mount bracket, spare battery, spare PowerCap; document capture stands
Ingress Protection (IP) Rating: IP52
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
