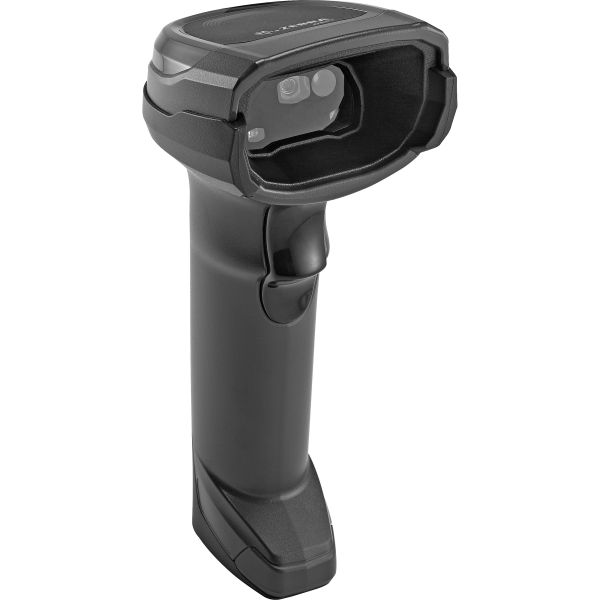

Zebra DS8178-SR Barcode Scanner Kit

Marketing Information

The ultimate in performance, innovation and manageability

Checkout is the last chance to leave your shoppers with a good impression - and the quality of the checkout experience is heavily dependent upon the performance of the scanner you choose. If cashiers need to scan barcodes multiple times or enter unreadable barcodes manually, your checkout lanes can back up quickly, resulting in long lines, long wait times and cashiers that need to focus on
ringing up merchandise as quickly as possible instead of focusing on shoppers to provide a better checkout experience. Now, you can give every shopper the ultimate last impression with the DS8100 Series handheld imager. The DS8100 Series rises above conventional imagers, de...livering unprecedented scanning performance on 1D and 2D barcodes, innovative productivity enhancing tools, including swappable power sources - a PowerPrecision+ battery or PowerCapTM capacitor1 - plus unrivaled manageability tools to keep your scanners up, running and in the hands of your cashiers. Keep checkout lines moving and cashiers free to deliver a more personal checkout experience with the DS8100 Series - because when it comes to the checkout experience, only the best will do.

Unprecedented Performance

Unparalleled performance on virtually every barcode in any condition
Only the DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes - including
dense, poorly printed, crinkled, faded, distorted, dirty or damaged, as well as electronic barcodes on dimly lit displays.

Superior scan range
A scanning range up to 24 in./61 cm, a high resolution imaging sensor and a bright "aiming spot" improve checkout speed. Now, cashiers in busy checkout environments can easily scan items in a customer's shopping cart - without leaving the cash-wrap.

Innovation beyond the barcode
Swappable power options reduce your investment risk Two interchangeable power options are available to power your devices: a PowerPrecision+ battery or a PowerCap capacitor. You can swap power options at any time on all models, right in your facility - no need to purchase separate battery-free and battery powered devices. And managing your power sources is easy. Since the PowerPrecision+ battery and PowerCap capacitor can report their model and serial numbers, you'll always know which power source is in each scanner.

On a single charge, the advanced PowerPrecision+ battery provides over three around-the-clock days of continuous scanning, plus a wealth of metrics for better battery management.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: DS8178-SR7U2100SFW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: DS8100
Product Model: DS8178-SR
Product Name: DS8178-SR Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Code 39
• Code 128
• Code 93
• Codabar/NW7
• Code 11
• MSI Plessey
• UPC/EAN
• I 2 of 5
• Korean 3 of 5
• GS1 DataBar
• Base 32 (Italian Pharma)

2D:

• PDF417
• Micro PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode
• QR Code
• Micro QR
• Chinese Sensible (Han Xin)
• Postal Codes

Image Sensor Type: Imager
Scan Pattern: Linear
Scanner Range: Standard Range
Scanning Distance: 934.72 mm
Cable Type Included: USB
Field of View (Horizontal): 42°
Field of View (Vertical): 28°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 96840 lux
Drop Specification: Designed to withstand 50 drops at 6.0 ft./1.8 m to concrete
Minimum Print Contrast: 16%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.51 mm
Minimum Element Resolution (DataMatrix): 0.19 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.13 mm
Maximum Element Resolution (PDF417): 0.17 mm
Network & Communication
Bluetooth: Yes
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Twilight Black
Height: 167.6 mm
Width: 66 mm
Depth: 106.7 mm
Weight (Approximate): 235.3 g
Miscellaneous
Ingress Protection (IP) Rating: IP42
Application/Usage:

• Retail
• Loyalty Program
• Hospitality
• Transportation
• Logistics
• Light/Clean Manufacturing
• Government

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
