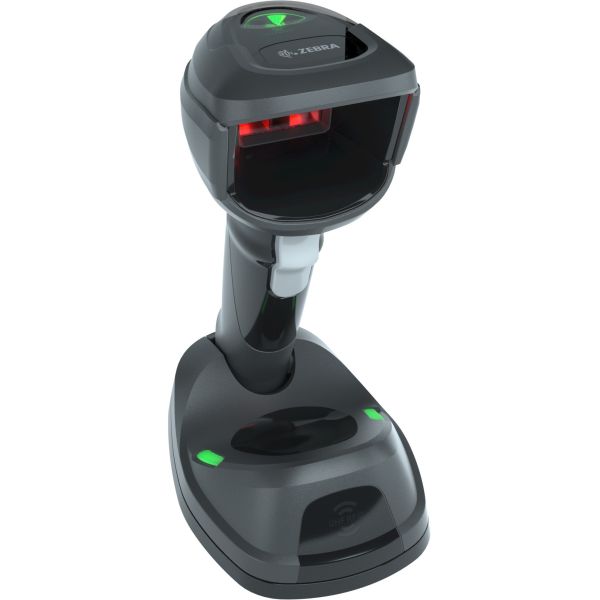

Zebra DS9908-SR Barcode Scanner Kit

Marketing Information
BOOST PRODUCTIVITY AT THE POINT OF SALE WITH THE ULTIMATE IN PERFORMANCE AND DESIGN

The point of sale is your last opportunity to make a good impression. With the DS9900 Series, you can give shoppers the checkout experience they expect - short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning. While other products are handheld scanners retrofitted with a base, Zebra's award-winning Industrial Design team created the DS9900 Series from the ground up for both handheld and hands-free use. You get Zebra's industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide ran...ge of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your point of sale. Empower your checkout stands with the DS9900 Series Hybrid Presentation Imager - the ultimate in performance and design.

Industry-best performance

Scan it all with virtually no exceptions
The DS9900 Series combines an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology for unparalleled performance on 1D, 2D and Digimarc® barcodes. Problematic barcodes won't slow down your checkout lanes. The DS9900 Series can instantly capture dense, poorly printed, damaged, crinkled, faded, distorted, low-contrast, and glossy printed barcodes, as well as electronic barcodes on dimly lit mobile phone displays.

Rapid-fire scanning to keep your lines moving
With the widest field of view in its class and an advanced illumination system, the DS9900 Series provides the near instant barcode capture you need to keep the busiest checkout lines moving. You get one of the industry's top first-pass read rates - up to 240 in./610 cm per second. A large field of view makes presentation scanning easier than ever, enabling associates to focus on your shoppers rather than positioning items.

Bring RFID to your point of sale
If you are already benefiting from RFID in your supply chain, you can close the RFID loop by capturing RFID-tagged merchandise at the POS with the RFID model. Checkouts are easier than ever, since associates can scan multiple items at once without line of sight. Capturing RFID tags provides the real-time inventory visibility needed for timely re-ordering and trending analysis. The reader operates with just 5 VDC and does not require an external power supply. And complimentary RFID data conversion software lets you read RFID tags without modifying your existing POS application.
Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: DS9908-SR4U2100AZW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: DS9900
Product Model: DS9908-SR
Product Name: DS9908-SR Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Code 39
• Code 128
• Code 93,
• Codabar/NW7
• Code 11
• MSI Plessey
• UPC/EAN I 2 of 5
• Korean 3 of 5
• GS1 DataBar
• Base 32 (Italian Pharma)

2D:

• PDF417
• Micro PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode
• QR Code
• Micro QR
• Han Xin
• Postal Codes

Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Area
Scanner Range: Standard Range
Scanning Distance: 627.38 mm
Features: Checkpoint EAS
Cable Type Included: USB
Field of View (Horizontal): 48°
Field of View (Vertical): 31°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Image Formats:

• JPEG
• TIFF
• BMP

Maximum Ambient Light: 107600 lux
Drop Specification: DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Minimum Print Contrast: 16%
Maximum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (DataMatrix): 0.25 mm
Maximum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Network & Communication
Radio Frequency: Yes
Interfaces/Ports
Host Interface: USB
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Midnight Black
Durability:

• Scratch Resistant
• Drop Resistant
• Spill Resistant
• Dust Resistant

Height: 203.2 mm
Width: 94 mm
Depth: 132.1 mm
Weight (Approximate): 330 g
Miscellaneous
Package Contents:

• DS9908-SR Barcode Scanner Kit
• CBA-U21-S07ZBR Shielded USB Cable

Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Quick Service Restaurant (QSR)
• Industrial
• Convenience Store

Warranty
Limited Warranty: 5 Year
