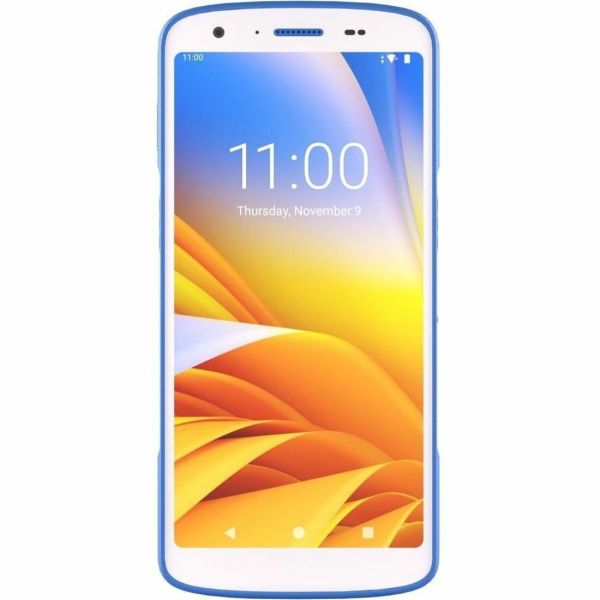

Zebra HC50 Handheld Terminal

Marketing Information

EMPOWER CLINICAL AND NON-CLINICAL HEALTHCARE WORKERS TO IMPROVE EFFICIENCY, TASK ACCURACY AND PATIENT OUTCOMES

Introducing Zebra's newest family of rugged healthcare mobile computers, the Wi-Fi only HC20 and HC50, purpose built to deliver all the features healthcare workers need to improve efficiency, accuracy, the quality of patient care and patient outcomes. This series offers the perfect balance of ergonomics, features and cost - a pocketable device that is easy to carry, easy to use, easy to disinfect and easy to manage. Run demanding healthcare multi-media rich applications and enable comprehensive communications capabilities for superior collaboration. These small devices are big in extended functionality, able to transf...orm into a two-way radio, a PBX handset and a workstation. And Zebra-only extras - such as Device Tracker, Intelligent Cabinets¹and Mobility DNA¹- practically eliminate lost devices and the cost of device access management, while adding complementary tools that boost usability and manageability.

And a specially designed housing and USB-C port plug minimize crevices where pathogens can accumulate.

20% more display space to see more - and scroll less

The high resolution, 6-inch, FHD+ edge-to-edge display is bright and easy to read in virtually any lighting. And it works with the thin gloves typically worn by healthcare workers.

Call for help with one press of the emergency alert button

This programmable dedicated button can be configured to call a specific number or launch an application in emergency or duress situations, with an activation sequence that prevents false alarms.

One set of accessories for both models

Make carrying easy with the disinfectant-ready healthcare carry clip or hand strap. There are cradles designed for the backroom, a desk or a nurses station, plus extra batteries to ensure power for back-to-back shifts and a screen protector that boosts display durability.

Unbeatable battery features

No need to take these devices out of service to charge - if the battery runs low, just swap in a fully charged battery. With true hot swap², you can change batteries without impacting device functionality - no missed calls, no missed notifications, no lost data. PowerPrecision technology provides real-time metrics to monitor battery health, so you can easily spot and replace batteries that can no longer hold a full charge. And you can use any standard USB-C charge cable for charging flexibility.

Turn the HC20/HC50 into two-way radios and PBX handsets

Empower your workers with multiple voice-calling capabilities - push-to-talk (PTT) communications and the ability to place and accept PBX calls. Now, nurses can reach a physician instantly or take a call from a family member checking on a loved one - all right on the HC20/HC50.⁵And with Profile Manager, these optional voice solutions are easy to deploy and manage.

Secure text messaging - when audio calls aren't appropriate

Comply with privacy laws that protect patient information with text messaging that is secure and auditable - unlike text messaging on the cellular public network.⁵

High quality video conferencing for superior collaboration

Enable remote telehealth consultations with physicians, pharmacists and other caregivers through the HC50's 5 MP front facing camera.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: WLMT0H50D8BBK1A6
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Model: HC50
Product Name: HC50 Handheld Terminal
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Scan Engine Model: SE4720
Image Sensor Type: Imager
Light Source: LED
Google Mobile Services (GMS): Yes
Sensor Type:

• Proximity
• Light Sensor
• Magnetometer
• eCompass
• Motion Sensor
• Accelerometer
• Gyroscope

Brightness: 450 cd/m²
Features:

• Water Resistant
• Gorilla Glass
• Push-to-talk
• VoIP

Drop Specification: Multiple 4 ft./1.25 m drops to tile over concrete over operating temperature range per MIL-STD 810H

Illumination Type: LED
Illumination Color: White
Processor & Chipset
Processor Model: 5430
Processor Core: Hexa-core (6 Core)
Processor Speed: 2.10 GHz
Memory
Standard Memory: 8 GB
Flash Memory: 128 GB
Memory Card Supported: microSD
Display & Graphics
Screen Size: 15.2 cm (6")
Screen Mode: Full HD+
Screen Resolution: 1080 x 2160
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Buttons & Keys:

Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down

Network & Communication
Wireless LAN: Yes
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Near Field Communication (NFC): Yes
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 5 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 16 Megapixel
Software
Operating System: Android 13
Upgradable Operating System: Android 16
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 3800 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Phone-size
Rugged: Yes
Width: 76.2 mm
Depth: 12.4 mm
Length: 165.1 mm
Weight (Approximate): 8.5 g
Miscellaneous
Package Contents:

• HC50 Handheld Terminal
• Battery

Application/Usage:

• Healthcare
• Industrial
• Transportation

Ingress Protection (IP) Rating:

• IP68
• IP65

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 1 Year
Additional Warranty Information:

Subject to terms of Zebra's hardware warranty statement, the HC20 and HC50 are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment.
