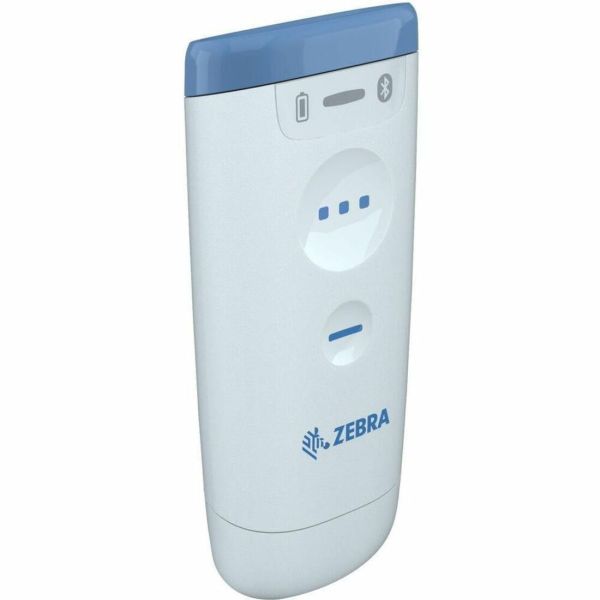

Zebra CS60-HC Barcode Scanner Kit

Marketing Information

Ultra-versatile healthcare scanner with a first-of-its-kind convertible design

Do you need a cordless scanner at the point of care and a corded hands-free scanner in the pharmacy and lab? What if you didn't have to deploy different scanners for different tasks? Introducing the CS60-HC Series Healthcare Companion Scanner, featuring a groundbreaking design that easily converts between corded and cordless operation, handheld and hands-free, as your needs change. As a cordless scanner, the CS60-HC is ultra-portable and pocketable to meet any nurse-carry workflow and offers the latest mobile technology including contactless charging. As a corded scanner, the CS60-HC provides compact scanning for the pharmacy counter, lab station a...nd more. Whether you purchase a corded or cordless model up front, you can change modes at any time for superior investment protection. You get Zebra's industry-leading scanning performance, easier data entry between multiple host applications and seamless disinfectant-ready plastics. And our unique DataCapture DNA and industry-preferred management tools make it easier than ever to integrate, deploy and manage your scanners.

Proven scanning performance you can trust

With a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology, the CS60-HC easily and accurately captures the many kinds of barcodes commonly used in hospitals including barcodes on patient wristbands, medication vials, IV bags and specimen trays. When you choose the CS60-HC, you get Zebra's world-renowned quality and reliability

Effortless multi-tasking with a second programmable button

A second programmable button can be used to instantly toggle between two host applications, such as Electronic Medical Record (EMR) and blood collection applications. With a quick press of the button, clinicians can send data to the right application in the proper format and order.

Purpose-built housing helps offer maximum protection against the spread of bacteria

Special plastics and IP65 sealing allow for safe wipe-downs with the widest selection of aggressive disinfectants used in today's hospitals. And with a monocoque design, inductive sensing touch buttons and contactless charging, the scanner's crevice-free surface helps eliminate places where germs can hide.

Safe LED aimer can be used throughout the hospital

Thanks to a highly visible and safe LED aimer, the CS60-HC can be used in the NICU, labor and delivery and mother-baby units where the use of laser aimers is not advised. And the green aimer reduces the likelihood of triggering PTSD episodes.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: CS6080HCB0000TP1W
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: CS60-HC
Product Name: CS60-HC Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• Base 32 (Italian Pharma)
• Codabar/NW7
• Code 11
• Code 39
• Code 93
• Code 128
• GS1 DataBar
• I 2 of 5
• Korean 3 of 5
• MSI Plessey
• UPC/EAN

2D:

• Aztec
• Composite Codes
• DataMatrix
• Dotted DataMatrix
• Dotcode
• Han Xin
• MaxiCode
• PDF417
• Micro PDF417
• Postal Codes
• QR Code
• Micro QR
• TLC-39
• SecurPharm

Light Source: LED
Image Sensor Type: Imager
Features:

• Vibration
• Data Formatter
• Beep
• Checkpoint EAS
• NFC Reader
• Diagnostic Reporting

Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Motion Tolerance: 508 mm/s
Maximum Ambient Light: 108000 lux
Drop Specification:

Designed to withstand multiple drops at 5.0 ft./1.5 m
to concrete

Minimum Print Contrast: 20%
Maximum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 960
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Power Description
Input Current: 400 mA
Standby Current: 90 mA
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 735 mAh
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: White
Product Color: Healthcare White
Height: 22.9 mm
Width: 45.7 mm
Depth: 109.2 mm
Weight (Approximate): 87.9 g
Miscellaneous
Ingress Protection (IP) Rating: IP65
Application/Usage:

• Healthcare
• Inventory
• Pharmacy
• Specimen Collection
