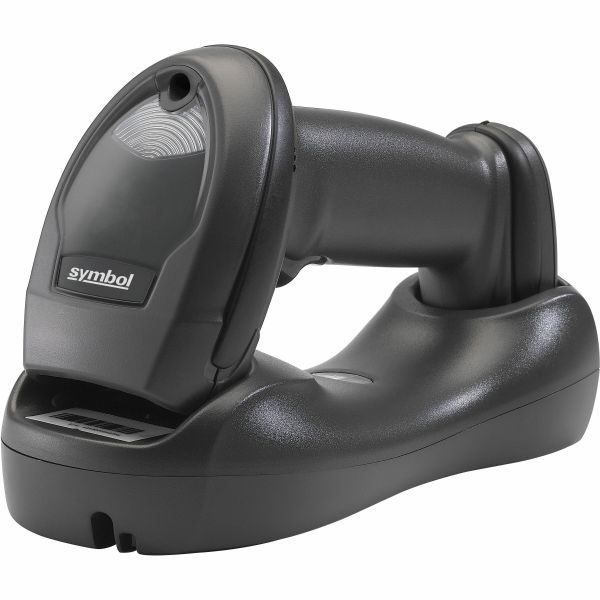

Zebra LI4278 Handheld Bar Code Scanner

Marketing Information

The LI4278 takes 1-D bar code scanning to the next level, allowing workers to scan faster and farther. Workers can capture virtually any 1-D bar code ' including the typical bar codes that are printed on paper labels; electronic bar codes displayed on the screen of a mobile phone, tablet or computer that allows retailers to easily process loyalty cards, mobile coupons and more; and the high density (HD) bar codes commonly used in electronic component manufacturing. 100 percent UPC bar codes can be captured from near contact to over 30 in./76.2 cm away, while 200% UPC codes can be scanned at 55 in./139.7 cm away. Since bar codes can be captured at extreme angles, scanning is easier than ever, so workers spend less time maneuvering the scann...er and more time on task. And an optional cradle that enables presentation mode gives your workers the flexibililty to use the scanner in handheld and hands-free modes.

Cordless Freedom

Bluetooth frees workers from cords, allowing cashiers to easily scan items inside and outside of the cash wrap. In addition, Bluetooth v2.1 with EDR provides better encryption for improved security; better wireless performance; better energy management to preserve power for a full shift and easy pairing with the host device.

Built for All Day Everyday Use

A patent pending single circuit board improves reliability by eliminating interconnections. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. You can use it in dusty and wet environments. The scan line is easy to see outdoors in brightsunlight as well as indoors in dim lighting. It can survive drops to concrete. And both cradles can handle over a quarter million insertions.

Cost Effective Upgrade Path

The LI4278 provides a positive return on investment by utilizing the same existing cradles and accessories as its cousins, the LS4278 and DS6878. Current investments are preserved, yet you can easily migrate to the latest in scanning technology.

Maximum Uptime For A Low Tco

Remote management tools combine with industry leading all-inclusive affordable service plans to keep devices in the hands of your workforce practically every minute of every working day, Service from the Start Advance Exchange Support provides next-business-day replacement of devices that require repair. Built-in Comprehensive Coverage protects your scanners from the unexpected, significantly reducing unforeseen repair expenses and delivering service peace of mind from the moment you purchase the device.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: LI4278-TRBU0100ZER
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Model: LI4278
Product Name: LI4278 Handheld Bar Code Scanner
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability: 1D
Barcode Symbology Supported:

UPC/EAN:

• UPC-A
• UPC-E
• UPC-E1
• EAN-8/JAN 8
• EAN-13/JAN 13
• Bookland EAN
• Bookland ISBN Format
• UCC Coupon Extended Code
• ISSN EAN Code 128 Including GS1-128
• ISBT 128
• ISBT Concatenation

• Code 39 including Trioptic Code 39
• Convert Code 39 to Code 32 (Italian Pharmacy Code)
• Code 39 Full ASCII
• Conversion Code 93 Code 11

• Matrix 2 of 5
• Interleaved 2 of 5 (ITF)

• Discrete 2 of 5 (DTF)

• Codabar (NW - 7)

• MSI Chinese 2 of 5
• IATA Inverse 1D (except all GS1 DataBars)

• GS1 DataBar including GS1 DataBar-14
• GS1 DataBar Limited
• GS1 DataBar Expanded

Light Source: LED
Image Sensor Type: Imager
Scan Rate: 547 scan/s
Depth of Field:

• 5" - 7"@3mil - Code 39
• 4" - 10"@4mil - Code 39
• 3" - 13"@5mil - Code 39
• 1.5" - 19"@7.5mil - Code 39
• 1" - 31"@13mil - 100% UPC-A
• 1" - 42"@20mil - Code 39
• 3" - 55"@26mil - 200% UPC-A

Scan Pattern: Linear
Scanner Range: Extended Range
Scanning Distance: 762 mm
Cable Type Included: USB
Field of View (Horizontal): 35°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Motion Tolerance: 635 mm/s
Maximum Ambient Light: 108000 lux
Drop Specification: Survives 6ft./1.8 m drops to concrete
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 2.54 mm
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 97.5 mm
Width: 69.9 mm
Depth: 186.4 mm
Weight (Approximate): 224 g
Miscellaneous
Package Contents:

• LI4278 Handheld Bar Code Scanner
• CBA-U01-S07ZAR USB Cable
• CR0078-SC10007WR Cradle

Additional Information:

USB Cable separate

Ingress Protection (IP) Rating: IP53
Application/Usage:

• Industrial
• Manufacturing

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
