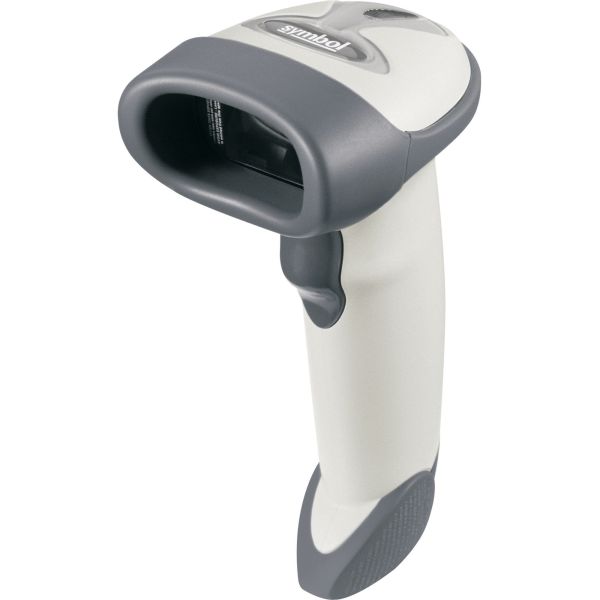

Zebra LS2208 Barcode Scanner Kit

Marketing Information

OUR BEST SELLING HANDHELD LASER SCANNER

With over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all - enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 - the well-proven scanner powering the checkout lines all around the world.

Durable construction
With its patented single board construction, patented fric...tionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.

Capture high-density bar codes for greater application flexibility
With just one scanner, you can capture the high density bar codes common on small items.

Deploy in every corner of the world
With support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box.

Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.

Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.

All day comfort your workers can count on
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.

Flexible handheld or hands-free operation
The optional IntellistandTM enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand.

Multiple interfaces
No matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready.

Truly plug-and-play
The universal cable connects to any computing environment, practically eliminating setup and training time.

Advanced Data Formatting (ADF)
Format data properly before it is sent to your host computer, eliminating the costly modification of host software.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: LS2208-SR20001R-UR
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Model: LS2208
Product Name: LS2208 Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

• UPC/EAN
• UPC/EAN Supplementals
• UCC/EAN 128
• Code 39
• Code 39 Full ASCII
• Code 39 TriOptic
• Code 128
• Code 128 Full ASCII
• Codabar
• Interleaved 2 of 5
• Discrete 2 of 5
• Code 93
• MSI
• Code 11
• IATA
• RSS Variants
• Chinese 2 of 5

Light Source: Laser
Image Sensor Type: Linear
Scan Rate: 100 scan/s
Scan Pattern: Bi-directional
Scanning Distance: 760 mm
Cable Type Included: USB
Stand Included: Yes
Reading Angle (Skew): 60°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 30°
Maximum Ambient Light: 86111 lux
Drop Specification: Unit functions normally after repeated 5 ft./1.5 m drops to concrete
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 1.02 mm
Interfaces/Ports
Host Interface: USB
Power Description
Input Voltage: 5 V DC
Physical Characteristics
Form Factor: Handheld
Color Family: White
Product Color: White
Height: 152.4 mm
Width: 63.5 mm
Depth: 84.8 mm
Weight (Approximate): 146 g
Miscellaneous
Package Contents:

• Symbol LS2208 Handheld Barcode Scanner
• USB Cable
• Gooseneck Stand

Additional Information:

Supported Interfaces:

• Serial
• Keyboard Wedge
• Wand Emulation
• IBM 468X/469X
• USB
• Synapse

USB Cable separate

Compatibility:

• IBM 468x/469x terminals.

Ingress Protection (IP) Rating: IP30
Application/Usage:

• Retail
• Education

Platform Supported: PC
Certifications & Standards:

• Environmental: RoHS 2002/95/EEC

Electrical Safety:

• UL1950
• CSA C22.2 No. 950
• EN60950/IEC950

EMI/RFI:

• FCC Part 15 Class B
• ICES-003 Class B
• European Union EMC Directive
• Australian SMA
• Taiwan EMC
• Japan VCCI/MITI/Dentori

Laser Safety::

• CDRH Class II
• IEC Class 2

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
