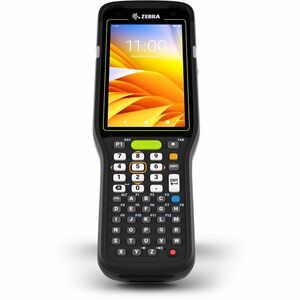

Zebra MC3400 Mobile Computer

Marketing Information

Engineered for the toughest environments and today's modern workflows - now with more power, advanced scanning, Wi-Fi 6E and 5G connectivity

Introducing the next generation of the highly successful MC3000 Series family of versatile key-based mobile computers, the MC3400 and MC3450. Two form factor options - straight shooter and gun - are packed with the latest mobility features to empower your workforce to meet the ever-increasing needs of today's on-demand, e-commerce economy. Run demanding apps with 2.5x more processing power. Keep workers connected with Wi-Fi 6E, 5G and Private 5G. Prevent unauthorized device access with biometric facial recognition. An improved keypad design makes data entry easier, a more rugged design in...creases reliability, and more data capture options increase flexibility. Tap into new capabilities that increase security, make devices easy to find and more with Zebra DNA's software suite. And Zebra's services make it easy to run, repair, oversee and manage your devices from cradle to grave.

Maximize user productivity | Keep workers connected, no matter where they are

Wi-Fi 6E plus private and public 5G connectivity provides workers with fast and reliable wireless connections - from the production floor to the farthest corner of the warehouse, including vast outdoor ports and yards. And with a physical nano SIM and eSIM, you can support two networks on a single device.

Choose the right scanner for the job

Different use cases require different scanners. For standard barcode capture, choose the SE4710 1D/2D Scan Engine. To capture barcodes, photos and documents indoors and outdoors - even in bright sunlight - choose the SE4770 1D/2D Scan Engine with a red laser aimer. Need a flexible scan range? The SE55 1D/2D Advanced Range Scan Engine with Intellifocus™ technology captures barcodes in-hand and on a top warehouse rack - over 40 ft (12.2m) away. And if you need extended range scanning up to 100 ft (30.5m) away, the SE58 Extended Range 1D/2D Scan Engine is ideal for scanning containers in ports and yards. And all options deliver split-second first time capture of virtually every barcode, regardless of condition.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: KT-MC3401-0G1D42SS-A
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: MC3000
Product Model: MC3400
Product Name: MC3400 Mobile Computer
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wired/Wireless
Scanning Capability:

• 1D
• 2D

Scan Engine Model: SE4710
Image Sensor Type: Imager
Google Mobile Services (GMS): Yes
Sensor Type:

• Light Sensor
• Magnetometer
• Motion Sensor
• Accelerometer
• Gyroscope

Features:

• Gorilla Glass
• Corning Gorilla Glass
• Multi-color LED Notification
• Push-to-talk
• Vibration Alert
• Audible Tone
• Drop Resistant

Drop Specification:

Per MIL-STD 810H: 8 ft (2.4m)7 to concrete at (+23C/+73F); 6 ft (1.8m) to concrete across temperature (-20C to +50C/-4F to +122F) exceeding MIL-STD-810H

Processor & Chipset
Processor Manufacturer: Qualcomm
Processor Model: QCM4490
Processor Core: Octa-core (8 Core)
Processor Speed: 2.40 GHz
Memory
Memory Card Supported: microSD
Display & Graphics
Screen Size: 10.2 cm (4")
Screen Mode: WVGA
Screen Resolution: 800 x 480
Touchscreen Information
Touchscreen: Yes
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc (Wi-Fi 6)
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3 BLE
Near Field Communication (NFC): Yes
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 5 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 7000 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Voltage: 3.60 V
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Gun
Rugged: Yes
Height: 165.1 mm
Width: 73.7 mm
Length: 208.3 mm
Weight (Approximate): 528 g
Miscellaneous
Package Contents:

• MC3400 Mobile Computer
• Battery

Application/Usage:

• Retail
• Backroom Inventory Management
• Order Picking
• Store Receiving
• Logistics
• Yard
• Asset Tracking
• Inventory Management
• Warehouse

Ingress Protection (IP) Rating:

• IP65
• IP67

TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 1 Year
