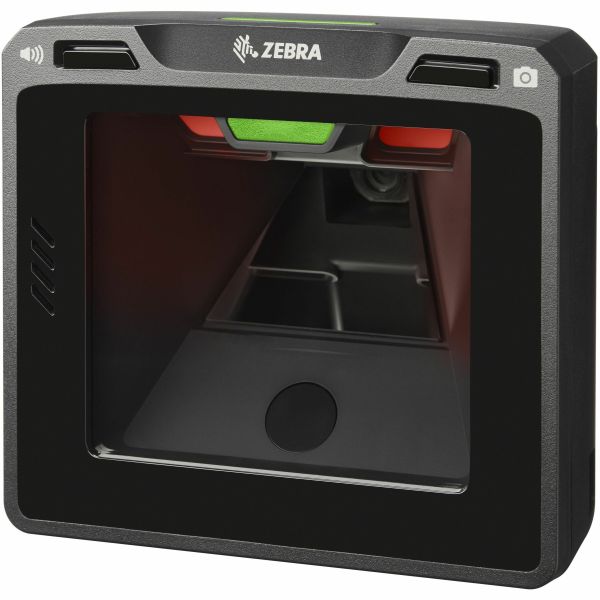

Zebra SP72 SP7208-V Barcode Scanner

Marketing Information

Simplify your checkout experience and improve your bottom line with high-performance in-counter and on-counter scanning

A long wait at the checkout line is the last thing a customer wants. One-quarter of shoppers have admitted to abandoning a purchase due to long lines.1 Speed up the checkout process, offer convenient self-checkout options and prevent lost sales with the SP72 Series. These high-performance single-plane scanners deliver everything you need to elevate the checkout experience in grocery, convenience, pharmacy and specialty stores. With innovative features, including an optional color camera to enable vision-based applications2, the SP72 Series scanner frees associates to do higher-priority tasks and better serve ...shoppers while minimizing the risk of shrink. Available in both horizontal and vertical form factors, the SP72 Series fits wherever you need it-and is ideal for retailers that need the performance of a multi-plane scanner, but prefer the compact size, easy installation and value of a single-plane scanner.

With "Swipe and Go" Scanning, Checkouts are Faster Than Ever:

With high swipe speeds and a large reading area, the SP72 Series makes scanning second nature. Barcodes are captured as quickly as they're presented. Since there's less need to precisely position a barcode, cashiers can focus more on the customer and selfcheckout users can enjoy a seamless experience.

Keep Every Checkout Lane Moving:

Thanks to a high-resolution 2.3 megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology, the SP72 Series offers unparalleled performance on virtually any 1D, 2D, Digimarc, paper and mobile barcode. Poorly printed, damaged, crinkled, or faded barcodes-the SP72 Series can capture them all. And offset illumination enables trouble-free scanning of reflective barcodes on glass bottles, mobile phones or cellophane packaging.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: SP7208SV00004ZCWW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: SP72
Product Model: SP7208-V
Product Name: SP72 SP7208-V Barcode Scanner
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/ EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D:

• All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm

Digimarc:

• Digimarc barcodes

Minimum Input Resolution:

• Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 m

Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Area
Scanner Range: Standard Range
Scanning Distance: 228.60 mm
Features:

• Beep
• Data Formatter
• Sensormatic EAS
• Notification LED
• Checkpoint EAS
• Diagnostic Reporting

Cable Type Included: USB
Field of View (Horizontal): 129°
Field of View (Vertical): 76°
Reading Angle (Skew): 70°
Reading Angle (Pitch): 80°
Reading Angle (Roll): 360°
Image Formats:

• BMP
• RAW
• JPEG

Maximum Ambient Light: 86100 lux
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 0.25 mm
Minimum Element Resolution (DataMatrix): 0.13 mm
Maximum Element Resolution (DataMatrix): 0.38 mm
Minimum Element Resolution (PDF417): 0.38 mm
Image Sensor Resolution: 1920 x 1200
Illumination Type: LED
Illumination Color: Red
Air Electrostatic Discharge (+/-): 15kV
Interfaces/Ports
Host Interface:

• Serial
• USB
• Keyboard Wedge
• IBM 46XX

Power Description
Standby Current: 240 mA
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 20% to 95%
Physical Characteristics
Form Factor: Swipe
Color Family: Black
Product Color: Midnight Black
Product Material: Diamond-Like Coating (DLC) Glass
Durability:

• Spill Resistant
• Dust Proof

Height: 137.2 mm
Width: 152.4 mm
Depth: 83.8 mm
Weight (Approximate): 602 g
Miscellaneous
Package Contents:

• 1 x SP72 SP7208-V Barcode Scanner
• 1 x Checkpoint EAS CBL-CE0072 cable

Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Pharmacy
• Convenience Store
• Self-checkout

Warranty
Limited Warranty: 3 Year
