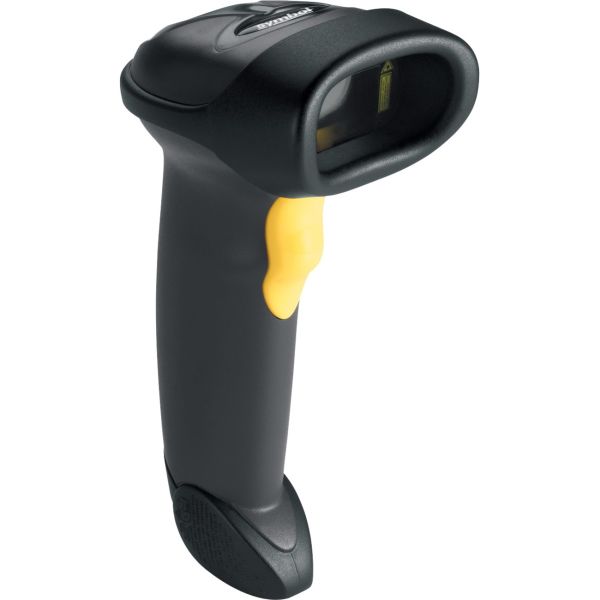

Zebra Symbol LS2208 Handheld Barcode Scanner

Marketing Information

The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range from near contact to 17 inches makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: LS2208-7AZU0100ZR
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Line: Symbol
Product Model: LS2208
Product Name: Symbol LS2208 Handheld Barcode Scanner<...br/>Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

• Full ASCII
• Discrete 2 of 5
• Codabar
• Code 128
• Code 11
• UPC
• Interleaved 2 of 5
• Code 128 Full ASCII
• Code 39 Trioptic

Light Source: Laser
Scan Rate: 100 scan/s
Scan Pattern: Single Line
Scanner Range: Standard Range
Scanning Distance: 431.80 mm
Cable Type Included: USB
Stand Included: No
Reading Angle (Skew): 60°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 30°
Maximum Ambient Light: 86111 lux
Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 0.08 mm
Maximum Element Resolution (Code 39): 1.02 mm
Interfaces/Ports
Host Interface: USB
Power Description
Input Voltage: 5 V DC
Power Source: USB
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Color Family: Black
Product Color: Twilight Black
Height: 152.4 mm
Width: 63.5 mm
Depth: 84.8 mm
Weight (Approximate): 146 g
Miscellaneous
Package Contents:

• Symbol LS2208 Handheld Barcode Scanner
• USB Cable

Ingress Protection (IP) Rating: IP30
Application/Usage:

• Retail
• Education

Platform Supported: PC
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
