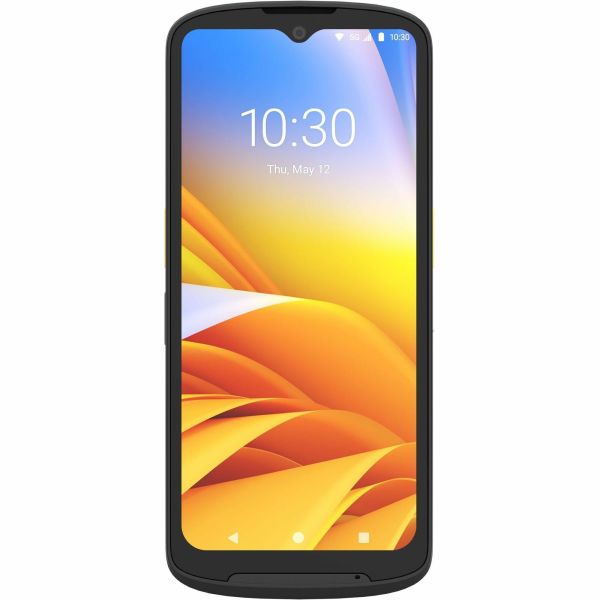

Zebra TC15 Mobile Computer

Marketing Information

The on-demand economy is creating an ever-increasing volume of orders that need to be delivered at ever-increasing speeds - including same day. To address this challenge, workers at every point in the supply chain need to be able to easily access and collect information. You need a device that is designed for many different environments for different types of jobs - from transportation and logistics to retail. Introducing the device that can address it all - the TC15 mobile computer. You get the features workers need to complete tasks faster, with flawless accuracy. A rugged design that performs reliably inside facilities as well as out in the field. The power to seamlessly support many workflow applications. An extra-large 6.5 inch screen... to see more information - with less scrolling. Full shift battery power. Consistently reliable scanning. Unmatched ergonomics. All in a proven device with proven technology - and a new level of affordability.

BUILT TO LAST YET LESS THAN THE TOTAL COST OF A CELL PHONE

The rugged device designed for durability and comfort

The TC15 is built for business from the inside out. It's waterproof, dustproof and drop-proof surviving drops to concrete, one of the most challenging surfaces. Use it in the blazing heat or freezing cold, out in the rain or snow. Two of the most vulnerable features the display and scanner window are reinforced with a scratch-resistant glass with a beautiful surface. Are your environments more demanding? Just add the optional rugged boot for even more durability.

While your business will benefit from the cost-saving rugged design, your workers will benefit from its extremely ergonomic design. In a device with a large 6.5 in. screen, balance is crucial - Zebra's award-winning Industrial Design team optimized the weight distribution so your users will find holding the TC15 virtually effortless. And all touchpoints have been thoughtfully created - from rounded corners, button size and location to a specially designed wave texture on the back to enable a solid grip.

Costs much less to own than a cell phone

Consumer cell phones require more frequent maintenance and device replacements due to lack of durability - and it shows in the total cost of ownership. While consumer cell phones can cost as little as half of their rugged counterparts, over five years, the average consumer cell phone will cost nearly 2.5x more in operating costs, 2.5x more in lost productivity and nearly 2x the IT support costs.

LOADED WITH ALL THE FEATURES YOUR WORKERS NEED TO DO BUSINESS BETTER AND FASTER

All the wireless connections your workers need to stay connected

5G delivers the super fast and reliable connections needed to maximize productivity with less battery power. Enable two cellular networks with dual SIM card slots ideal for workers who travel in areas that are served by multiple networks. Inside buildings, fast Wi-Fi gives workers a solid and dependable wireless connection. This Wi-Fi 6 ready device supports 8 x 8 sounding for extended performance, and Target Wake Time for improved power efficiency. Bluetooth 5.1 BLE delivers improved connection stability and easy pairing, providing workers with solid and dependable Bluetooth connections to headsets, mobile printers and more. And with NFC 'one-tap', workers can just tap to pair a device, check an ID card, verify a package on a loading dock and more.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: TC15BK1PE14SA6
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Model: TC15
Product Name: TC15 Mobile Computer
Product Type: Handheld Terminal
Technical Information
Scanning Capability:

• 2D
• 1D

Scan Engine Model: SE4710
Image Sensor Type: Imager
Google Mobile Services (GMS): Yes
Sensor Type:

• Motion Sensor
• Gyroscope
• Accelerometer
• Proximity

Brightness: 450 cd/m²
Drop Specification:

4 ft./1.2 m drop to concrete per MIL-STD 810G across operating temperature

Processor & Chipset
Processor Type: Snapdragon
Processor Model: SM6375
Processor Core: Octa-core (8 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 64 GB
Memory Card Supported: microSD
Display & Graphics
Screen Size: 16.5 cm (6.5")
Screen Mode: HD+
Screen Resolution: 720 x 1600
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.1 BLE
Near Field Communication (NFC): Yes
Cellular Data Connectivity Technology: 5G
GPS: Yes
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 5 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 11
Battery Information
Battery Capacity: 5000 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Rugged: Yes
Height: 78.5 mm
Depth: 14.2 mm
Length: 175.8 mm
Weight (Approximate): 265.9 g
Miscellaneous
Package Contents:

• TC15 Mobile Computer
• Battery

Application/Usage:

• Transportation
• Logistics
• Retail
• Field Sales/Service
• Manufacturing
• Warehouse

Ingress Protection (IP) Rating:

• IP65
• IP67

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 1 Year
