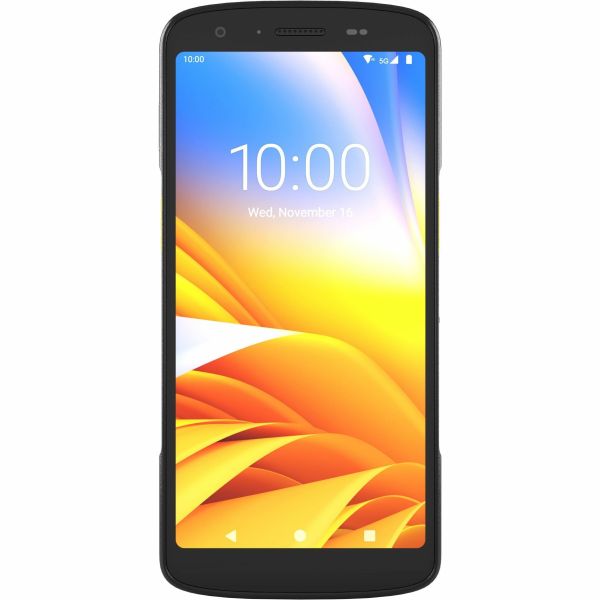

Zebra TC27 Handheld Terminal

Marketing Information

THE ULTIMATE COST-EFFECTIVE TOOL FOR SMALL BUSINESSES - WITH BIG BUSINESS FEATURES

Your small or mid-size business competes with industry giants that use the latest enterprise mobile devices to give workers a competitive edge - but the smartphones in your budget don't offer the features you need. Introducing the equalizer - the TC22/TC27 mobile computers. The third generation of the highly successful TC2x Series, the TC22/TC27 delivers the best of all worlds - smartphone styling and pricing, with big business features that boost productivity and customer service quality. This compact, powerful device offers a large 6 in. display, 5G, Wi-Fi 6E, integrated scanners, support for tap-to-pay and other contactless transactions and m...ore. This durable device is built to outlast consumer phones, providing a better return on investment. And Zebra's portfolio of services can help you get and keep your devices up and running at peak performance. Get the boost you need to compete with any size business with the TC22/TC27 - the smartphone style workers want, the features your business needs, all at a price you can afford.

Support for private 5G and CBRS³private LTE networks enables cost-effective wireless connectivity in the largest indoor and outdoor facilities. Bluetooth 5.2 delivers better audio quality while consuming less power, and adds unique features that enable effective ways to communicate and collaborate.

The best of Android - today and tomorrow

Support through Android 16 ensures you won't outgrow the operating system - you'll have access to the latest features every day your device is in service.

See more and scroll less with an advanced 6 in. FHD+ display

The larger screen delivers more display space and the bright 450 nits screen is easy to read anywhere - indoors and outside.

Capture barcodes in less time - with less effort

Compared to scanning with a mobile phone camera, Zebra's enterprise-class scanning options enable workers to capture barcodes in nearly half the time, with half the muscle work.⁴Choose from the SE4710 1D/2D standard scan engine or the SE55 1D/2D Advanced Range scan engine with Intellifocus^TMtechnology, able to scan items in hand or on the highest warehouse shelf. Both options deliver split second first time capture of virtually every barcode, regardless of condition.

Ready for the world of contactless transactions

Easily integrate the TC22/TC27 with your existing POS contactless payment solution, allowing customers to simply tap to pay. In addition, the built-in support for Apple VAS and Google SmartTap enables the TC22/TC27 to read tickets, loyalty and gift cards, boarding passes and more stored in Apple or Google wallets.Simultaneously capture all the barcodes you need, even if they are on multiple labels, all with just a single press of the scan button. Capture and crop a document image, detect signature presence and capture a barcode in one button press. Simplify data entry with a customized soft keyboard. Provide unsurpassed 'won't drop' wired style Wi-Fi connections every minute of every shift. Simplify Bluetooth accessory management. Turn Workstation Connect cradles into powerful workstations with Workstation Connect software.⁵And powerful additional licensable tools add even more value. Track and locate missing devices that are equipped with a BLE battery, even if the battery is dead.⁶Use the cloud to easily deploy, configure and manage all of your Mobility DNA tools - anywhere and anytime.⁷

THE SMARTPHONE-STYLE DEVICE THAT'S MADE FOR WORK | Power all your apps - simultaneously

Get superior performance on all your apps wit
Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: WCMTBT27B6CBC2A6
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Model: TC27
Product Name: TC27 Handheld Terminal
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Scan Engine Model: SE55
Scanner Range: Advanced Range
Google Mobile Services (GMS): Yes
Sensor Type:

• Light Sensor
• Motion Sensor
• Accelerometer
• Gyroscope
• Proximity
• Magnetometer

Multi-SIM Supported: Yes
SIM Size Supported: Nano/eSIM
Brightness: 450 cd/m²
Features:

• Water Resistant
• Gorilla Glass
• Push-to-talk

Drop Specification:

• Multiple 5 ft./1.5 m drops to concrete over operating temp (-10° C to 50° C/14° F to 122° F) with protective boot per MIL-STD-810H
• Multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp (-10° C to 50° C/14° F to 122° F) per MIL-STD 810H

Processor & Chipset
Processor Model: 5430
Processor Core: Hexa-core (6 Core)
Processor Speed: 2.10 GHz
Memory
Standard Memory: 6 GB
Flash Memory: 64 GB
Memory Card Supported: microSD
Display & Graphics
Screen Size: 15.2 cm (6")
Screen Mode: Full HD+
Screen Resolution: 1080 x 2160
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Buttons & Keys:

Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power

Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Near Field Communication (NFC): Yes
Cellular Data Connectivity Technology:

• 5G
• 4G
• 3G
• 2G

GPS: Yes
Global Navigation Satellite System (GNSS) Supported: BeiDou/Galileo/GLONASS
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 5 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 16 Megapixel
Software
Upgradable Operating System: Android 16
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 3800 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Phone-size
Rugged: Yes
Height: 165.1 mm
Width: 76.2 mm
Depth: 12.4 mm
Miscellaneous
Package Contents:

• TC27 Handheld Terminal
• Standard Battery

Application/Usage:

• Retail
• Direct Store Delivery (DSD)
• Field Sales/Service
• Warehouse
• Industrial

Ingress Protection (IP) Rating:

• IP68
• IP65

TAA Compliant: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 1 Year
Additional Warranty Information:

Subject to the terms of Zebra's hardware warranty statement, the TC22 and TC27 are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment
