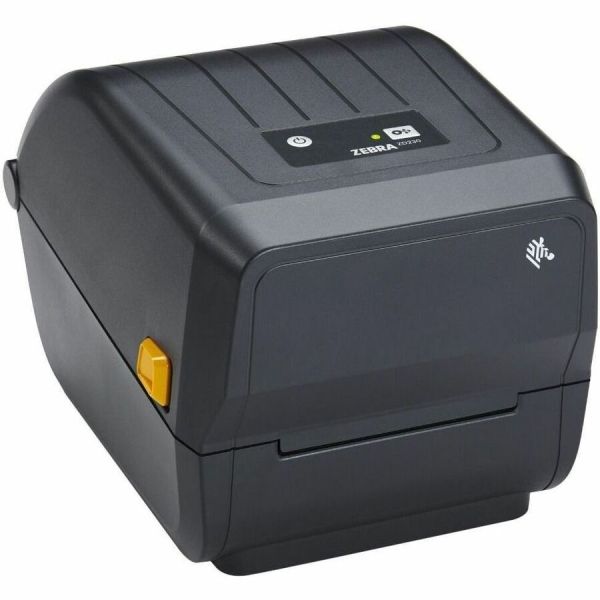

Zebra ZD230 4-inch Value Desktop Printer

Marketing Information
The Zebra ZD230 label and receipt desktop printer gives you extra features and reliable operation at an affordable price-both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction. And, it offers wireless connectivity for networked, remote printing. Built to last for years, the ZD230 provides an outstanding return on your investment. Best Out-of-the-Box Experience The ZD230 is simple to install and begin printing with USB connectivity as standard, with the option to add Ethernet, Bluetooth and Wi-Fi. Easily design and print a variety of tickets, tags, passes, labels and receipts up to 4 inches wide, for a broad range of industries including transportation and logistics, li...ght manufacturing, retail, and healthcare. Media changes are quick with Zebra's OpenACCESS™ clamshell design to keep your workflows moving. Basic Feature for Simple Operation The ZD230 gives you just what you need, nothing you don't. Choose from direct thermal or thermal transfer models. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Print DNA - Your Printer's Built in Advantage With Zebra Print DNA tools and applications, you stay a step ahead with heightened security and ongoing updates. Ensuring easy integration and interoperability, Print DNA enables your printers to work at optimized performance over their entire lifecycle, even as your business needs evolve. Robust and reliable Engineered with Zebra quality, ZD230 boasts a dual-wall construction and is ENERGY STAR® qualified to reduce your operational expenses. Peace of mind comes in the form of a two-year hardware warranty and a one-year print head warranty as standard. Backed By Zebra's Service and Support Access support quickly anywhere around the globe through Zebra's trusted network of more than 10,000 partners. Avoid costly repairs and downtime with an affordable service plan that's tailored to the coverage you need for your desktop printer.
Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZD23042-30ED02EZ
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: ZD200
Product Model: ZD230
Product Name: ZD230 4-inch Value Desktop Printer
Product Type: Thermal Transfer Printer
Technical Information
Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 101.60 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 104 mm (4.09")
Barcode Symbology Supported: 2D
Application/Usage: Desktop
Character Sets: Unicode
Print Technology: Thermal Transfer
Memory
Standard Memory: 128 MB
Interfaces/Ports
USB: Yes
Network & Communication
Bluetooth: Yes
Bluetooth Version: 4.0
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Media Types & Handling
Media Type:

• Label
• Receipt
• Black Mark
• Gap
• Roll Fed
• Fanfold
• Die-cut Label
• Continuous Label
• Tag Stock
• Continuous Receipt
• Wristband

Media Sensor:

• Head Open Sensor
• Black Mark Sensor
• Gap Sensor

Maximum Roll Diameter: 127 mm
Maximum Label Width: 112 mm
Maximum Label Length: 991 mm
Fonts & Emulation
Language Emulation:

• ZPL II
• ZPL
• EPL2

Software
Operating System Supported: Link-OS® Basic printer operating system
Power Description
Power Source: AC Supply
Physical Characteristics
Height: 191 mm
Width: 197 mm
Depth: 267 mm
Weight (Approximate): 1.10 kg
Miscellaneous
Platform Supported: PC
Energy Star: Yes
Warranty
Limited Warranty: 2 Year
Additional Warranty Information: One-year print head warranty as standard
