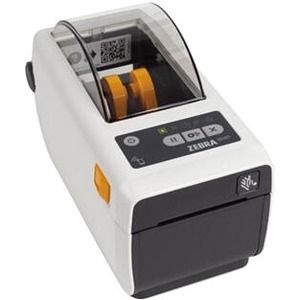

Zebra ZD411-HC 2-inch Desktop Printer

Marketing Information

Expect more with Zebra's advanced, compact desktop printer, made for healthcare

Elevate your expectations with the reliable compact healthcare printer that's designed exclusively for healthcare. Zebra's ZD411-HC includes all the advanced features you need and is built to last for years to come. It's built with disinfectant-ready, UV-resistant plastics and a medical-grade power supply for added safety. Including a new architecture and our exclusive Print DNA software suite, it offers enhanced processing power, unmatched security and intuitive setup and operation. Add capabilities with field-installable options, including wireless capabilities. An extension of the proven ZD400 Series, it's ready to perform flawlessly for years ...to come.

Advance Your Healthcare Workflows | Easy to Clean, Sanitize and Safely Power

Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD411-HC printer easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.

Simple to Setup, Use and Manage Today | Ready to Evolve for Tomorrow

Featuring Zebra's Print DNA software suite, the ZD411-HC is easy to integrate, simple to operate and can be managed onsite or remotely via a web-based dashboard. It's designed to evolve with technology with its innovative architecture that powers future printing and emerging applications to keep your workflows at peak performance.

Change Media Easily

Color-coded touch points guide you through speedy media changes to keep printers operational and workers on task. See status easily via the five LED icons on the intuitive display.

It's Time to Advance | Powerful Printing with Intuitive Operation

Technology is constantly evolving, and so are your business needs. The ZD411-HC is ready to grow with you. Incorporating a powerful new processor, you can run more tasks and perform more operations simultaneously. Advanced features and connectivity options, including field-upgradeable media handling and wireless kits, make it stand apart. The ZD411-HC has five LED icons that allow you to instantly see what's needed to keep your printer up and running, from replenishing media to resolving printer issues. The advanced three-button user interface replaces the typical single-button/single-light interface common in desktop printers.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZD4AH22-D0EW02EZ
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: ZD400
Product Model: ZD411-HC
Product Name: ZD411-HC 2-inch Desktop Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 152 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 56 mm (2.20")
Barcode Symbology Supported:

• 1D
• Code 11
• Code 39
• Code 93
• Code 128
• ISBT-128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• UPC
• EAN With 2 or 5 Digit Extension
• Plessey
• POSTNET
• Standard 2 of 5
• Industrial 2 of 5
• Interleaved 2 of 5
• LOGMARS
• MSI
• Codabar
• Planet Code
• 2D
• Codablock
• PDF417
• Code 49
• Data Matrix
• Maxi Code
• QR Code
• Micro PDF
• AZTEC

Real Time Clock: Yes
Application/Usage: Desktop
Features:

• Dual Wall Frame
• Compact

Connectivity Technology: Wireless
Optional Connectivity:

• Ethernet
• Serial (RS-232)

Print Technology: Direct Thermal
Memory
Standard Memory: 256 MB
Interfaces/Ports
USB Host: Yes
USB: Yes
Network & Communication
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Near Field Communication (NFC): Yes
Media Types & Handling
Media Type:

• Roll Fed
• Fanfold
• Tag Stock
• Continuous Receipt
• Continuous Paper
• Wristband

Media Sensor:

• Full Width Sensor
• Moveable Reflective/Black Mark Sensor
• Multi-position Transmissive/Gap Sensor

Media Thickness: 190.5 µm
Maximum Roll Diameter: 127 mm
Maximum Label Width: 57 mm
Maximum Label Length: 991 mm
Fonts & Emulation
Language Emulation:

• ZPL
• EPL
• ZPL II
• EPL II
• XML
• ZBI

Software
Operating System Supported:

Link-OS

Power Description
Power Source: AC Supply
Environmental Conditions
Operating Temperature: 4.4°C - 40.6°C
Operating Relative Humidity: 10% - 90%
Storage Temperature: -40°C - 60°C
Storage Relative Humidity: 5% - 95%
Physical Characteristics
Color Family: White
Product Color: White
Height: 152.4 mm
Width: 114.3 mm
Depth: 218.4 mm
Weight (Approximate): 997.9 g
Miscellaneous
Power Cable Localization:

• EU
• UK

Package Contents:

• ZD411-HC 2-inch Desktop Printer
• AC Power Supply
• Power Cord
• USB Cable
• Quick Start Guide
• Regulatory Guide

Cables Included: USB
Power Adapter Included: Yes
Platform Supported:

• PC
• Android
• iOS

Energy Star: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 2 Year
