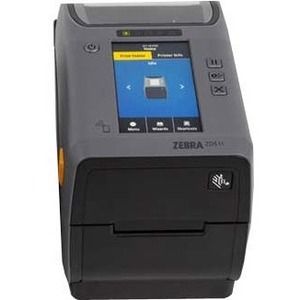

Zebra ZD611 Direct Thermal Printer
Display Screen | Yes |
---|---|
Maximum Print Width | 54 mm (2.13") |
Recommended Use | Label Print |
Language Emulation | EZPL/ZPL II/EPL2/XML/ZPL |
Cutter | Yes |
Ethernet | Yes |
Maximum Label Width | 59.94 mm |
USB Host | Yes |
Real Time Clock | Yes |
Maximum Mono Print Speed (ips) | 152 mm/s |
Application/Usage | Desktop |
Product Type | Direct Thermal Printer |
Platform Supported | PC/iOS/Android |
Power Source | AC Supply |
Limited Warranty | 2 Year |
Connectivity Technology | Wired & Wireless |
Features | LCD Display |
Product Model | ZD611 |
Brand Name | Zebra |
Media Type | Label/Linerless/Fanfold/Gap/Notch/Roll Fed/Die-cut Label/Continuous Label/Tag Stock/Continuous Receipt/Wristband |
Bluetooth | Yes |
Ethernet Technology | Fast Ethernet |
USB | Yes |
Print Color Capability | Monochrome |
Energy Star | Yes |
Maximum Print Resolution (dpi) | 300 |
Ethics - Environment | Rating Coming Soon |
Ethics - Animal | Rating Coming Soon |
Ethics - Human | Rating Coming Soon |
Ethics - Integrity | Rating Coming Soon |
Ethics - Durability | Rating Coming Soon |
Description
Specifications are provided for reference and are based on printer tests using Zebra brand
supplies. Results may vary in actual application settings or when using other than recommended
Zebra supplies. Zebra recommends always qualifying any application with thorough testing.
Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZD6A023-D0EE00EZ
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Model: ZD611
Product Name: ZD611 Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information...ong>
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 152 mm/s
Maximum Print Resolution (dpi): 300
Maximum Print Length: 991 mm
Maximum Print Width: 54 mm (2.13")
Barcode Symbology Supported:
- Code 39
- Codabar
- Code 128 (A/B/C)
- UCC/EAN 128
- Code 93
- Interleaved 2 of 5
- UPC-A
- UPC-E
- UPC-A with 2 and 5 Add-on
- UPC-E with EAN 2 or 5 Digit Extension
- EAN-13
- EAN-8
- EAN-13 With 2 and 5 Digit Extension
- EAN-8 With 2 or 5 Digit Extension
- POSTNET
- Plessey
- MSI-3
- German Post Code
- RSS-14
- Maxi Code
- PDF417
- Micro PDF-417
- Macro PDF-417
- Data Matrix
Real Time Clock: Yes
Application/Usage: Desktop
Features: LCD Display
Connectivity Technology: Wired & Wireless
Optional Connectivity:
- Serial (RS-232)
- Wireless LAN
Print Technology: Direct Thermal
Memory
Standard Memory: 256 MB
Interfaces/Ports
USB Host: Yes
USB: Yes
Network & Communication
Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Display & Graphics
Display Screen: Yes
Screen Size: 10.9 cm (4.3")
Display Screen Type: LCD
Cutter
Cutter: Yes
Media Types & Handling
Media Type:
- Label
- Linerless
- Fanfold
- Gap
- Notch
- Roll Fed
- Die-cut Label
- Continuous Label
- Tag Stock
- Continuous Receipt
- Wristband
Media Sensor: Label Taken Sensor
Media Thickness: 190.5 µm
Maximum Roll Diameter: 127 mm
Maximum Label Width: 59.94 mm
Maximum Label Length: 39 mm
Fonts & Emulation
Language Emulation:
- EZPL
- ZPL II
- EPL2
- XML
- ZPL
Software
Operating System Supported:
Link-OS
Power Description
Power Source: AC Supply
Environmental Conditions
Operating Temperature: 4.4°C - 40.6°C
Operating Relative Humidity: 10% - 90%
Physical Characteristics
Height: 151 mm
Width: 115 mm
Depth: 220 mm
Weight (Approximate): 1.07 kg
Miscellaneous
Power Cable Localization:
- EU
- UK
Platform Supported:
- PC
- iOS
- Android
Energy Star: Yes
Warranty
Limited Warranty: 2 Year
