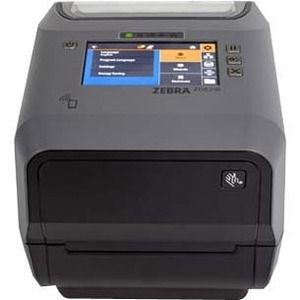

Zebra ZD611R Thermal Transfer Printer

Marketing Information

PREMIUM FEATURES, MAXIMUM PERFORMANCE, RFID CAPABILITIES AND UNMATCHED SECURITY

You need a compact, premium RFID printer/encoder that's built to perform flawlessly - day in and day out. Rely on Zebra's 4-inch ZD621R desktop RAIN/RFID printer/encoder, or the ZD611R, the industry's only 2-inch desktop RAIN RFID printer/encoder. Get it all: an innovative architecture to power our ever-expanding printer capabilities and software. Unmatched security to safeguard your sensitive data and shield you from cyberattacks. A large 4.3-inch, full-color LCD touch display with intuitive menu. Enhanced features, communication and field-installable media-handling options, and increased remote-management capabilities. Together, these give you o...utstanding print performance and industry-leading reliability, along with unparalleled intelligence and security, to keep you moving forward.

EXPANDING ZEBRA'S RFID DESKTOP CAPABILITIES

Print and Encode 4- and 2-inch Labels and Tags

Building on the legacy of the ZD500R, the 4-inch ZD621R features an innovative architecture that is nearly 32% more powerful. Expanding the desktop RFID line, the ZD611R shares that architecture and is the industry's only two-inch desktop RAIN RFID printer/encoder. Both the ZD621R and ZD611R can perform more operations simultaneously, deliver best-practice security and are engineered to evolve with emerging technology.

ZEBRA RFID: MORE TRANSFORMATION, NO COMPLICATION

Flexibility for a Broad Range of Uses and Applications

The ZD621R and ZD611R utilize Zebra's own RE40 RFID module to support a number of applications across several industries. Adaptive encoding technology allows for excellent media flexibility and simple RFID calibration, eliminating complex placement guidelines. Optimized to efficiently print and encode labels, tags and wristbands, they give you greater tracking abilities, deeper visibility and enterprise insights in an ever-competitive business environment.

RFID Backed by the Broadest, Field-Proven Portfolio

Zebra leverages decades of expertise, design thinking and software development to help you deliver maximum RFID gains, while minimizing the pains that can come with multi-vendor solutions. Zebra gives you the industry's broadest, field-proven RFID portfolio for unmatched accuracy and interoperability. Look to Zebra's consistent, fully scaled platform that anticipates real-world challenges and elevates the performance of every system, device, tag and worker.
EXPECT THE BEST

Premier Printing Performance

From outstanding print quality to RFID printing/encoding, portability for application flexibility to emerging technology, and field-installable options, the ZD621R and ZD611R thermal transfer RFID printers support a wide variety of use cases and requirements.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZD6A122-T0EER2EZ
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Model: ZD611R
Product Name: ZD611R Thermal Transfer Printer
Product Type: Thermal Transfer Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 203 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 56 mm (2.20")
Barcode Symbology Supported:

• Code 39
• Codabar
• Code 128 (A/B/C)
• UCC/EAN 128
• Code 93
• Interleaved 2 of 5
• UPC-A
• UPC-E
• UPC-A with 2 and 5 Add-on
• UPC-E with EAN 2 or 5 Digit Extension
• EAN-13
• EAN-8
• EAN-13 With 2 and 5 Digit Extension
• EAN-8 With 2 or 5 Digit Extension
• POSTNET
• Plessey
• MSI-3
• German Post Code
• RSS-14
• Maxi Code
• PDF417
• Micro PDF-417
• Macro PDF-417
• Data Matrix

Real Time Clock: Yes
Application/Usage: Desktop
Features:

• LCD Display
• Dual Wall Frame

Connectivity Technology: Wired
Optional Connectivity:

• Serial (RS-232)
• Wireless LAN

Print Technology: Thermal Transfer
Memory
Standard Memory: 256 MB
Interfaces/Ports
USB Host: Yes
USB: Yes
Network & Communication
Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
RFID: Yes
Display & Graphics
Display Screen: Yes
Screen Size: 10.9 cm (4.3")
Display Screen Type: LCD
Media Types & Handling
Media Type:

• Label
• Fanfold
• Gap
• Notch
• Roll Fed
• Die-cut Label
• Continuous Label
• Tag Stock
• Continuous Receipt
• Wristband

Media Sensor:

• Moveable Reflective/Black Mark Sensor
• Multi-position Transmissive/Gap Sensor

Media Thickness: 190.5 µm
Maximum Roll Diameter: 127 mm
Maximum Label Width: 57.15 mm
Maximum Label Length: 39 mm
Fonts & Emulation
Language Emulation:

• EZPL
• ZPL II
• EPL2
• XML
• ZPL

Software
Operating System Supported:

Link-OS

Power Description
Power Source: AC Supply
Environmental Conditions
Operating Temperature: 4.4°C - 40.6°C
Operating Relative Humidity: 10% - 90%
Storage Temperature: -40°C - 60°C
Storage Relative Humidity: 5% - 95%
Physical Characteristics
Height: 169.2 mm
Width: 138.7 mm
Depth: 242.9 mm
Weight (Approximate): 1.63 kg
Miscellaneous
Power Cable Localization:

• EU
• UK

Package Contents:

• ZD611R Thermal Transfer Printer
• Empty ribbon take-up cores: ZD611R 0.5 in.
• AC power supply
• Power Cord(s)
• USB Cable
• Quick Start Guide
• Regulatory Guide

Cables Included:

• AC
• USB

Power Adapter Included: Yes
Platform Supported:

• PC
• iOS
• Android

Energy Star: Yes
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 2 Year
