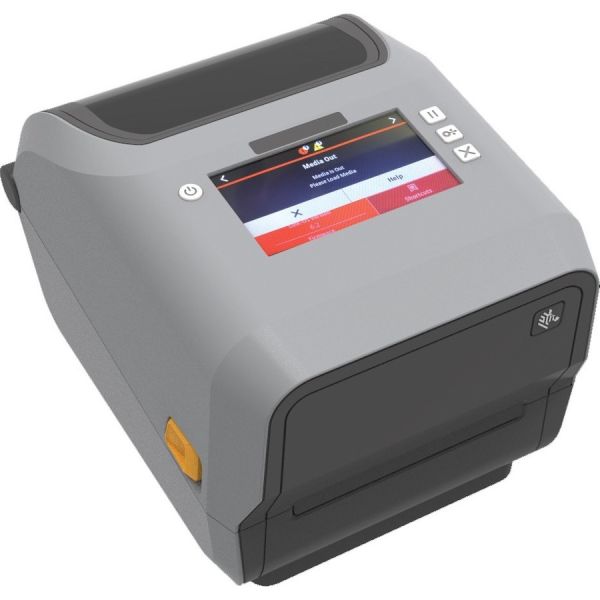

Zebra ZD621t Thermal Transfer Printer

Marketing Information

The ZD621 thermal transfer desktop printer delivers premium features, maximum performance and unmatched security for years of quality printing. Includes Zebra’s Print DNA software suite, it's easy to setup, operate, manage and maintain.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZD6A143-30EF00EZ
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: ZD600
Product Model: ZD621t
Product Name: ZD621t Thermal Transfer Printer
Product Type: Thermal Transfer Printer
Technical Inf...ormation
Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 152 mm/s
Maximum Print Resolution (dpi): 300
Maximum Print Width: 108 mm (4.25")
Barcode Symbology Supported:

• Code 11
• Code 39
• Code 93
• Code 128
• ISBT-128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• EAN With 2 and 5 Digit Extension
• Plessey
• POSTNET
• Standard 2 of 5
• Industrial 2 of 5
• Interleaved 2 of 5
• LOGMARS
• MSI
• Codabar
• PDF417
• Code 49
• Data Matrix
• Maxi Code
• QR Code
• Micro PDF
• Aztec Code

Real Time Clock: Yes
Application/Usage: Desktop
Features:

• Status Indicator
• Dual Wall Frame

Mobile Device Printing: Yes
Connectivity Technology: Wired
Print Technology: Thermal Transfer
Memory
Standard Memory: 256 MB
Interfaces/Ports
Serial Port: Yes
USB Host: Yes
USB: Yes
Network & Communication
Network Ready: Yes
Ethernet: Yes
Bluetooth: Yes
Near Field Communication (NFC): Yes
Display & Graphics
Display Screen: Yes
Screen Size: 10.9 cm (4.3")
Display Screen Type: LCD
Media Types & Handling
Media Type:

• Label
• Receipt
• Roll Fed
• Fanfold
• Die-cut Label
• Continuous Roll
• Black Mark
• Tag Stock
• Continuous Receipt
• Wristband
• Tag
• Reflective
• Gap

Media Thickness: 177.8 µm
Maximum Roll Diameter: 127 mm
Maximum Label Width: 118 mm
Maximum Label Length: 991 mm
Fonts & Emulation
Language Emulation:

• EZPL
• ZPL
• EPL
• ZPL II
• EPL2
• XML
• ZBI

Power Description
Power Source: AC Supply
Input Voltage:

• 120 V AC
• 230 V AC

Environmental Conditions
Operating Temperature: 4.4°C - 41°C
Operating Relative Humidity: 10% - 90%
Storage Temperature: -40°C - 60°C
Storage Relative Humidity: 5% - 95%
Physical Characteristics
Color Family: Grey
Product Color: Grey
Height: 190.5 mm
Width: 203.2 mm
Depth: 266.7 mm
Weight (Approximate): 2.49 kg
Miscellaneous
Power Cable Localization:

• EU
• UK

Cables Included:

• USB
• AC

Power Adapter Included: Yes
Platform Supported:

• iOS
• PC
• Android

Certifications & Standards:

• EC 60950-1
• IEC 62368-1
• EN55022 Class B
• EN55024
• EN55035
• EN61000-3-2
• EN61000-3-3
• FCC Class B
• ICES-003
• FCC 15.209; 15.247(d)
• IC RSS 247
• EN 300 328
• EN 301 893
• EN 62311
• cTUVus CE Marking
• VCCI
• C-Tick
• S-Mark
• CCC
• CU
• BSMI
• KCC
• SABS
• IN-Metro
• BIS
• NOM

Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
