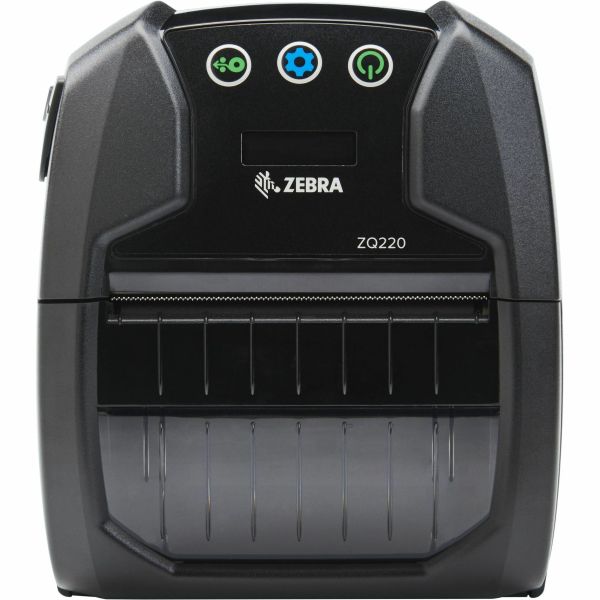

Zebra ZQ220 Plus Mobile Printer

Marketing Information

THE HIGH-QUALITY VALUE-PRICED MOBILE PRINTER FOR RECEIPTS AND LABELS
You're looking for a value-priced mobile printer-but you don't want to compromise on features. Introducing Zebra's ZQ220 Plus mobile printer, offering the perfect balance of cost, quality, versatility, durability and wearability. Print receipts and labels in multiple widths-including 2-inch and 3-inch. Enjoy easy USB charging and increased communication speeds using Bluetooth® 5.0. With a slim, lightweight design, it's easy to carry all day, and offers the durability to print indoors and outdoors and an IP54 rating for resistance to dust and liquids, without the need for a protective case. The integrated display, one-handed operation, removable battery and... ZLabel Designer Mobile App for Android™ or iOS® make it easy to use and stay productive. And with Zebra's 50 years of experience and innovation, you get quality you can count on. The ZQ220 Plus-the high-quality value-priced mobile printer.

Support for Multiple Media Widths

You get the flexibility to choose the right media width for your application. Out of the box, the ZQ220 Plus can print 80 mm/3.14 in. With media spacers, the ZQ220 Plus can print 76.2 mm/3 in., 58 mm/2.28 in.

ALL THE RIGHT CONNECTIONS FOR ON-THE-GO WORKERS | Simple USB Charging

Get the easiest in-vehicle charging solution outside the four walls with the ZQ220 Plus-just use the USB cable to plug it into the vehicle USB port or use the optional USB charger with a vehicle lighter power adapter. Users can also use a personal mobile power bank to charge the printer with an attached USB cable.

Faster, Easier and More Reliable Printing

Support for Bluetooth 5.0 Classic and Low Energy (BLE) enables the fastest communication between the host mobile device and the ZQ220 Plus, delivering dependably fast printing. And improved power efficiency extends the battery cycle of the host mobile device.

ONE VERSATILE PRINTER FOR ALL YOUR APPLICATIONS-TODAY AND IN THE FUTURE | All-in-One Receipt and Label Printing

The ZQ220 Plus prints both receipts and labels, giving you the flexibility to standardize on one printer that can meet all your mobile printing needs. Purchasing and management are simplified-and with only one model, training requirements are reduced.

Simple Tap To Pair With NFC

With integrated NFC, pairing the ZQ220 Plus to the Android mobile device of your choice couldn't be easier. Whether your workers are using an NFC-enabled Zebra or non-Zebra Android mobile device or their own NFC-enabled mobile devices, just one tap will establish the connection to the ZQ220 Plus. No more time spent troubleshooting pairing problems, improving mobile worker and IT support staff productivity.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZQ22-B16B1KE-00
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: ZQ200
Product Model: ZQ220
Product Name: ZQ220 Plus Mobile Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 50 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 72 mm (2.83")
Barcode Symbology Supported:

• Code 39
• Code 93
• UCC/EAN 128
• Code 128
• Codabar
• Interleaved 2 of 5
• UPC-A
• UPC E with 2 and 5 add on
• EAN-8
• EAN-13
• PDF417
• Micro PDF-417
• Maxi Code
• QR Code
• GS1 DataBar
• RSS
• Aztec Code
• MSI PLESSEY

Application/Usage:

• Retail
• Business

Mobile Device Printing: Yes
Fonts Included:

• English/Latin9
• Cyrillic
• Tra. Chinese 24x24
• New Sans MT 16x16
• Vietnamese 16x16
• Japanese 16x16
• 24x24 (CPCL)
• FontA 12x24
• FontB 9x17
• FontC 9x24 (ESC/POS)

Print Technology: Direct Thermal
Memory
Standard Memory: 8 MB
Interfaces/Ports
USB: Yes
Network & Communication
Bluetooth: Yes
Near Field Communication (NFC): Yes
Display & Graphics
Display Screen Type: OLED
Media Types & Handling
Media Type:

• Continuous Receipt
• Black Mark
• Tag
• Gap
• Direct Thermal Paper

Media Sensor: Media Out Sensor
Media Thickness: 157.5 µm
Maximum Roll Diameter: 50 mm
Maximum Label Width: 80 mm
Fonts & Emulation
Language Emulation:

• CPCL
• ESC/POS

Software
Operating System Supported:

• Windows v7, v8, v10,
• Android
• IOS

Power Description
Power Source: Battery
Battery Information
Battery Included: Yes
Battery Capacity: 2500 mAh
Environmental Conditions
Operating Temperature: -5°C - 50°C
Storage Temperature: -20°C - 60°C
Physical Characteristics
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 58.9 mm
Width: 114.5 mm
Depth: 129.5 mm
Weight (Approximate): 390 g
Miscellaneous
Platform Supported:

• PC
• Android
• iOS

Certifications & Standards:

• EN55032
• VCCI-CISPR 32
• EN301489-1/-17
• EN55035
• IEC/EN62368, BIS
• EN300328
• EN62479
• BT SIG
• ANATEL
• IFT
• SDPPI
• IMDA
• WPC
