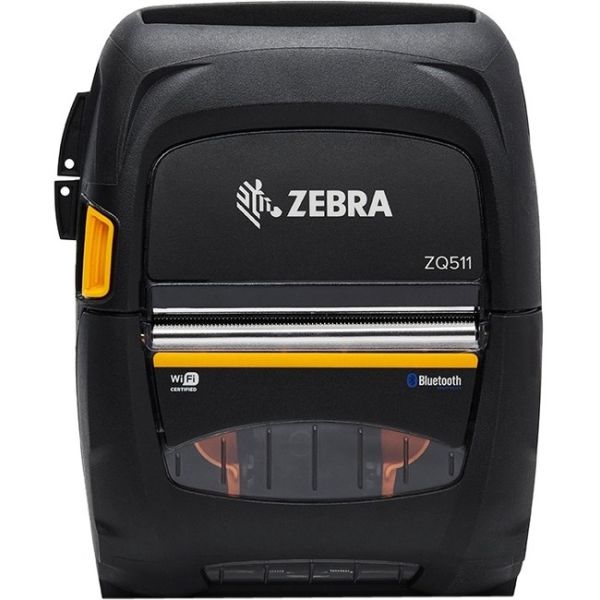

Zebra ZQ511 Direct Thermal Printer

Marketing Information

Zebra's ZQ511 mobile printer works as hard as you do. Ideal for harsh, demanding applications requiring protection against shock/drop/vibration, dust and liquid. Prints 3" receipts and labels on the go.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZQ51BUE000E00
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: ZQ500
Product Model: ZQ511
Product Name: ZQ511 Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label/Re...ceipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 127 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 990.60 mm
Maximum Print Width: 72 mm (2.83")
Barcode Symbology Supported:

• Code 39
• Code 93
• UCC/EAN 128
• Code 128
• ISBT-128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• EAN With 2 or 5 Digit Extension
• Planet Code
• Plessey
• POSTNET
• Standard 2 of 5
• Industrial 2 of 5
• Interleaved 2 of 5
• LOGMARS
• MSI
• Codabar
• GS1 DataBar
• PDF417
• Micro PDF
• Code 49
• TLC 39
• Maxi Code
• Codablock
• Data Matrix
• QR Code
• Aztec Code

Real Time Clock: Yes
Application/Usage: Mobile
Features:

• LCD Display
• Rugged

Mobile Device Printing: Yes
Print Technology: Direct Thermal
Memory
Standard Memory: 3.91 GB
Interfaces/Ports
USB: Yes
Network & Communication
Bluetooth: Yes
Near Field Communication (NFC): Yes
Media Types & Handling
Media Type:

• Label
• Receipt
• Gap
• Black Mark
• Tag
• Linerless

Media Thickness: 160 µm
Maximum Roll Diameter: 51 mm
Maximum Label Width: 80 mm
Fonts & Emulation
Language Emulation:

• XML
• ZPL
• CPCL

Power Description
Power Source: Battery
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Rechargeable: Yes
Battery Capacity: 3250 mAh
Environmental Conditions
Operating Temperature: -20°C - 55°C
Operating Relative Humidity: 10% - 90%
Storage Temperature: -30°C - 66°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Height: 61 mm
Width: 119.4 mm
Depth: 149.9 mm
Weight (Approximate): 630.5 g
Miscellaneous
Platform Supported:

• PC
• Android
• iOS

Certifications & Standards:

• Emissions: FCC Part 15
• Subpart B
• EN55022 Class-B
• EN55024
• ICES- 003
• EN55032
• EN301489
