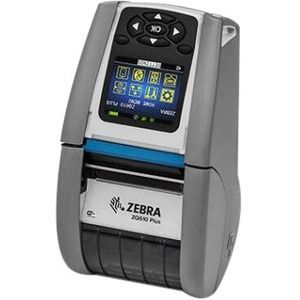

Zebra ZQ610 Plus-HC Direct Thermal Printer

Marketing Information
Easily reduce the risk of errors in specimen collection with premium mobile printing at the point of care

Want to improve specimen labeling accuracy, staff productivity and patient safety? With the ZQ600/ZQ600 Plus Healthcare Series, you can. The ZQ600/ZQ600 Plus takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Designed specifically for healthcare, these compact printers are built to withstand constant disinfecting. The color display takes all the guesswork out of printer status. Advanced battery technology powers every minute of the longest shift. The ZQ600/ZQ600 Plus offers the fastest, most dependabl...e wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus easier to integrate, manage and secure. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.

The Latest Wireless Connections for Fast and Secure Printing

The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), healthcare staff can count on blazing fast and secure connections.

Industry-Standard 802.11r Fast Roaming for Seamless Access

Support for 802.11r fast roaming technology delivers the dependable wireless connection your on-the-move staff needs.

Instant Wake-Up Over Wi-Fi

Every second counts in the mission-critical world of healthcare- that's why the ZQ600/ZQ600 Plus offers instant wake on Wi-Fi. This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment a user sends a print job, delivering instant availability-along with maximum battery cycle time. And the ZQ600/ZQ600 Plus' instant wake-up works over both Wi-Fi and Bluetooth.

Large Color Display Makes Configuration and Operation a Snap

It's easy to set up and maintain the ZQ600/ZQ600 Plus Series with its large display, user-friendly interface and easily customized menu. The display changes color when the printer is paused or in an error state, such as out of media or latch open, so users instantly know what the printer needs to stay up and running. And since the ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system, you'll get a common UI and user experience across other Zebra Link-OS mobile, desktop and industrial printers to lower the learning curve.

Business Tough-Built for All-Day Every Day Use

While the ZQ600/ZQ600 Plus is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance. And multiple mechanical design improvements further increase printer robustness and uptime.
Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZQ61-HUWAE04-00
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: ZQ600
Product Model: ZQ610 Plus-HC
Product Name: ZQ610 Plus-HC Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 115 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 813 mm
Maximum Print Width: 48 mm (1.89")
Barcode Symbology Supported:

• Code 39
• Code 93
• UCC/EAN 128
• Code 128
• Codabar (NW-7)
• Interleaved 2 of 5
• UPC-A
• UPC E with 2 and 5 add on
• EAN-8
• EAN-13
• PDF417
• Micro PDF-417
• Maxi Code
• QR Code
• GS1 DataBar
• AZTEC
• MSI PLESSEY
• FIM
• POSTNET
• Data Matrix
• TLC 39
• 2 and 5 Digits Add-on

Application/Usage:

• Desktop
• Industrial
• Mobile

Features:

• Belt Clip
• Shoulder Strap
• Dust Resistant
• Water Resistant

Mobile Device Printing: Yes
Ingress Protection (IP) Rating: IP54
Character Sets:

• Universal Font Scaling Technology (UFST)
• Agfa Monotype

Optional Connectivity:

• Serial (RS-232)
• USB
• Ethernet

Print Technology: Direct Thermal
Memory
Standard Memory: 256 MB
Network & Communication
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Near Field Communication (NFC): Yes
Display & Graphics
Display Screen: Yes
Media Types & Handling
Media Type:

• Gap
• Black Mark
• Receipt
• Label
• Die-cut Label
• Tag
• Linered Media
• Black Bar

Media Sensor:

• Black Mark Sensor
• Gap Sensor

Media Thickness: 165.1 µm
Maximum Roll Diameter: 55.88 mm
Maximum Label Width: 55.37 mm
Maximum Label Length: 812.80 mm
Fonts & Emulation
Language Emulation:

• CPCL
• EPL
• ZPL
• ZBI 2.0

Software
Operating System Supported: Link-OS
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 3250 mAh
Environmental Conditions
Operating Temperature: 0°C - 50°C
Operating Relative Humidity: 10% - 90%
Storage Temperature: -25°C - 65°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Height: 72.4 mm
Width: 91.4 mm
Depth: 170.9 mm
Weight (Approximate): 600 g
Miscellaneous
Platform Supported:

• iOS
• Android
• PC

Certifications & Standards:

Emissions:

• FCC Part 15
• Subpart B
• EN55022 Class-B
• EN60950
• EN55024
• VCCI class B

Susceptibility:

• EN55024
• EN61000-4-2
• EN61000-4-3
• EN61000-4-4
• EN61000-4-5

Safety:

• CE
• TUV
• CSA
