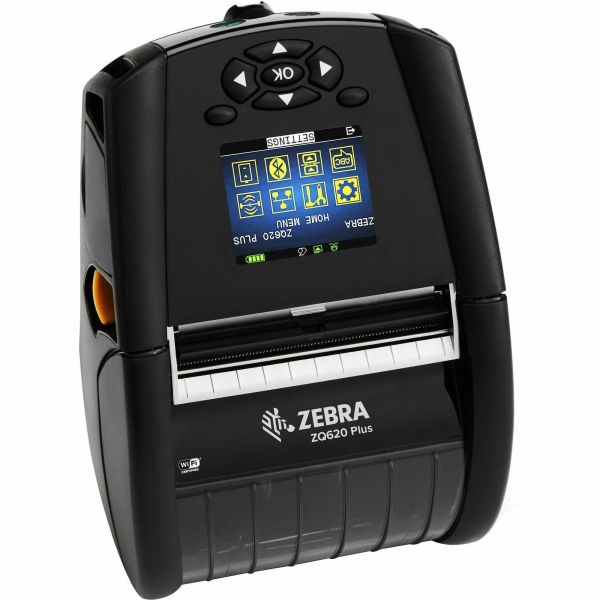

Zebra ZQ620 Plus Direct Thermal Printer

Marketing Information

PREMIUM MOBILE LABEL AND RECEIPT PRINTERS FOR MAXIMUM PRODUCTIVITY

Want to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside th...e four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, setup and secure. The ZQ600/ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.

PREMIUM FEATURES FOR MAXIMUM PRODUCTIVITY | The Latest Wireless Connections

The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), your workers can count on blazing fast and secure connections.

Industry-Standard 802.11r Fast Roaming for Seamless Access

With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.

Instant Wake-Up Over Wi-Fi

This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600/ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.

Large Color Display Makes Configuration and Operation a Snap

The ZQ600/ZQ600 Plus Series provides a large display, user-friendly interface and easily customized menu. The ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.

Business Tough-Built for All-Day Every Day Enterprise Use

While the ZQ600/ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.

Do More on a Single Charge

With the ZQ600/ZQ600 Plus Series' high-capacity 3250 mAH (ZQ610 and ZQ610 Plus / ZQ620 and ZQ620 Plus) and 6800 mAH (ZQ630 and ZQ630 Plus) battery, you can be sure that every worker has plenty of power for every shift. Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power.

Extraordinary Battery Management Capabilities

The ZQ600/ZQ600 Plus Series' PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZQ62HUXAE0400
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: ZQ600
Product Model: ZQ620 Plus
Product Name: ZQ620 Plus Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Printing Capability: Double Sided
Maximum Mono Print Speed: 115 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 813 mm
Maximum Print Width: 72 mm (2.83")
Barcode Symbology Supported:

• Code 39
• Code 93
• UCC/EAN 128
• Code 128
• Codabar (NW-7)
• Interleaved 2 of 5
• UPC-A
• UPC E with 2 and 5 add on
• EAN-8
• EAN-13
• PDF417
• Micro PDF-417
• Maxi Code
• QR Code
• GS1 DataBar
• AZTEC
• MSI PLESSEY
• FIM
• POSTNET
• Data Matrix
• TLC 39
• 2 and 5 Digits Add-on

Application/Usage:

• Desktop
• Industrial
• Mobile
• Retail
• Transportation & Logistic
• Warehouse
• Manufacturing
• Healthcare

Features:

• Belt Clip
• Shoulder Strap
• Dust Resistant
• Water Resistant

Mobile Device Printing: Yes
Ingress Protection (IP) Rating: IP54
Character Sets:

• Universal Font Scaling Technology (UFST)
• Agfa Monotype

Optional Connectivity:

• Serial (RS-232)
• USB
• Ethernet

Duplex Printing: Yes
Print Technology: Direct Thermal
Memory
Standard Memory: 256 MB
Interfaces/Ports
Serial Port: Yes
USB: Yes
Network & Communication
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Near Field Communication (NFC): Yes
Display & Graphics
Display Screen: Yes
Screen Size: 7.6 cm (3")
Display Screen Type: LCD
Media Types & Handling
Media Type:

• Gap
• Black Mark
• Receipt
• Label
• Die-cut Label
• Tag
• Linered Media
• Black Bar

Media Sensor:

• Black Mark Sensor
• Gap Sensor

Media Thickness: 165.1 µm
Maximum Roll Diameter: 66.04 mm
Maximum Label Width: 79.38 mm
Maximum Label Length: 812.80 mm
Fonts & Emulation
Language Emulation:

• CPCL
• EPL
• ZPL
• ZBI 2.0

Software
Operating System Supported:

• Link-OS

Power Description
Power Source: Battery
Battery Information
Battery Capacity: 3250 mAh
Environmental Conditions
Operating Temperature: 20°C - 50°C
Operating Relative Humidity: 10% - 90%
Storage Temperature: 25°C - 65°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Height: 77 mm
Width: 117.9 mm
Depth: 173.7 mm
Weight (Approximate): 730 g
Miscellaneous
Platform Supported:

• iOS
• Android
• PC

Energy Star: Yes
Warranty
Limited Warranty: 1 Year
