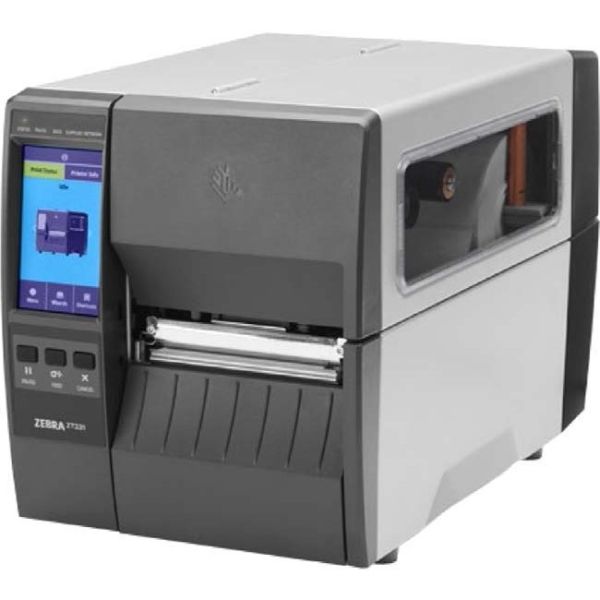

Zebra ZT231 Industrial Printer

Marketing Information

Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up - without interruption? The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more - all in one space-saving footprint. Plus, add optional capabilities like RFID*, wireless connectivity and media handling features when you need them. But that's not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That's how Zebra defines value.

GET MORE VALUE WITH ZEBRA

Simple Operation... with Smart Features

Reduce training time with the ZT231's easy-to-use 4.3" full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code.

Make It Easy for Your IT Team

Take advantage of Zebra's robust, ever growing Print DNA software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard. Compare your printer security settings against best practices and adjust to match your preferences, while protecting your data from vulnerabilities.

The Smart Choice Now and Later

The benefits of buying a ZT231 don't end at the point of purchase. Expand your printer's capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID* encoding.

BUILT TO PERFORM. ENGINEERED TO ENDURE.

Don't Compromise on Quality

With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. Be confident knowing you're backed by Zebra, the #1 leader in barcode printing.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZT23143-T2E000FZ
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Model: ZT231
Product Name: ZT231 Industrial Printer
Product Type: Thermal Transfer Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 203.20 mm/s
Maximum Print Resolution (dpi): 300
Maximum Print Length: 1854 mm
Maximum Print Width: 104 mm (4.09")
Barcode Symbology Supported:

• Code 11
• Code 39C
• Code 93
• Code 128 (A/B/C)
• UCC Case Codes
• ISBT-128
• UPC-A
• EAN-8
• UPC-E
• EAN-13
• UPC-A with EAN 2 or 5 Digit Extension
• Plessey
• POSTNET
• Standard 2 of 5
• Industrial 2 of 5
• Interleaved 2 of 5
• LOGMARS
• Codabar
• MSI
• Planet Code
• AZTEC
• Codablock
• PDF417
• Code 49
• Data Matrix
• Maxi Code
• QR Code
• Micro PDF-417
• TLC 39
• RSS-14
• RSS Composite

Real Time Clock: Yes
Application/Usage: Desktop
Print Technology: Thermal Transfer
Memory
Standard Memory: 256 MB
Interfaces/Ports
Serial Port: Yes
USB Host: Yes
USB: Yes
Network & Communication
Ethernet: Yes
Ethernet Technology: Ethernet
Bluetooth: Yes
Display & Graphics
Display Screen: Yes
Screen Size: 10.9 cm (4.3")
Cutter
Cutter: Yes
Cutter Type: Guillotine
Media Types & Handling
Media Type:

• Continuous Label
• Label
• Die-cut Label
• Notch
• Black Mark

Media Sensor:

• Transmissive Media Sensor
• Reflective Media Sensor

Maximum Roll Diameter: 203 mm
Maximum Label Width: 114 mm
Fonts & Emulation
Language Emulation:

• EZPL
• ZBI 2.0
• ZPL II
• ZPL
• EPL
• EPL2

Power Description
Power Source: AC Supply
Environmental Conditions
Operating Temperature: 4.4°C - 40.6°C
Operating Relative Humidity: 20% - 85%
Storage Temperature: -40°C - 60°C
Storage Relative Humidity: 5% - 85%
Physical Characteristics
Height: 279.4 mm
Width: 241.3 mm
Depth: 431.8 mm
Weight (Approximate): 9.07 kg
Miscellaneous
Power Cable Localization:

• EU
• UK

Platform Supported: PC
Certifications & Standards:

IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, & BIS

Energy Star: Yes
