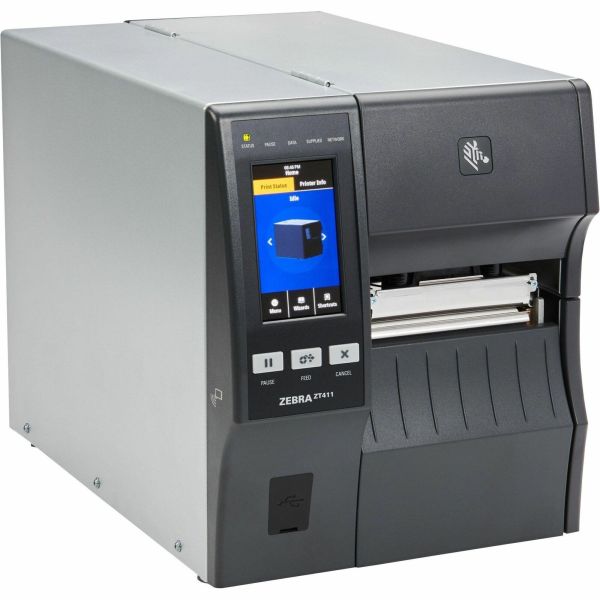

Zebra ZT411 Thermal Transfer Printer

Marketing Information

A NEW LEVEL OF PERFORMANCE, VERSATILITY AND EASE OF USE

Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers. The ZT400 offers advanced technology that drives versatility, ease of use and performance to a new level. Available in three print resolutions and two print widths, the ZT400 Series addresses a broad array of applications throughout manufacturing, transportation and logistics, retail and more. See printer status at a glance and manage settings quickly using the large color touch display. Field-installable connectivity, media handling and RFID options let you easily add new features as your needs evolve. And your IT department will find ZT400 printers easy to integrate and manage,... thanks to Zebra's Print DNA suite of applications, utilities and developer tools-all powered by Link-OS®. The result? The ZT400 offers the versatility, reliability and performance to meet your industrial printing needs - today and tomorrow.

VERSATILE TO MEET YOUR EVOLVING NEEDS | Configure your way with multiple connectivity options

The ZT400 comes standard with Ethernet, Serial, USB, dual USB Host and Bluetooth 4.1. Add the optional dual-band wireless card with 802.11ac Wi-Fi and Bluetooth for blazing fast and reliable wireless connections.

Built to handle a wide range of media and applications

You can count on the ZT400 to print a variety of different label formats on a variety of different media types.

The printer is offered in both 4 in. and 6 in. models, with 203 dpi, 300 dpi and 600 dpi* (600 dpi available on 4 in. ZT411 only). Add factory- or field-installable RFID technology to print and encode labels for greater tracking abilities and deeper visibility. Select Zebra's exclusive ZT411 RFID On-metal Tagging Solution, which is the only dedicated option for printing and encoding thicker RFID labels for metal containers and assets.

Dual USB Host ports for added flexibility

Dual USB Host ports allow you to directly connect a wide range of USB device types. Use a memory stick to replicate firmware, files and configurations, or easily print and transfer formats. Simplify data entry by simultaneously connecting a scanner and keyboard - with two host ports, there's no need to plug and unplug peripherals.

Designed to evolve with your needs

You can customize the ZT400 with a range of media handling options that can be installed in minutes. Two open media slots accommodate additional communication options. And, the robust processing power and memory can support firmware upgrades and new Print DNA tools for years to come.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZT41142-D9E0000Z
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: ZT400
Product Model: ZT411
Product Name: ZT411 Thermal Transfer Printer
Product Type: Thermal Transfer Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 356 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 3.99 m
Maximum Print Width: 104 mm (4.09")
Barcode Symbology Supported:

• Code 11
• Code 39
• Code 93
• Code 128 (A/B/C)
• UCC Case Codes
• ISBT-128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• EAN With 2 and 5 Digit Extension
• UPC 2 or 5 Digit Extension
• POSTNET
• Plessey
• Industrial 2 of 5
• Standard 2 of 5
• Interleaved 2 of 5
• MSI
• LOGMARS
• Codabar
• Planet Code
• Codablock
• Code 49
• Data Matrix
• PDF417
• AZTEC
• RSS-14
• Micro PDF
• TLC 39
• QR Code
• Maxi Code

Peel Facility: Yes
Application/Usage:

• Industrial
• Manufacturing
• Transportation & Logistic
• Retail
• Healthcare

Features:

• UHF Reader
• Versatile

Memory
Standard Memory: 256 MB
Flash Memory: 512 MB
Interfaces/Ports
Serial Port: Yes
USB Host: Yes
USB: Yes
USB Standard: USB 2.0
Network & Communication
Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Bluetooth Version: 4.1
Wireless LAN: Yes
Display & Graphics
Display Screen: Yes
Screen Size: 10.9 cm (4.3")
Display Screen Type: LCD
Media Types & Handling
Media Type:

• Label
• Continuous Label
• Die-cut Label
• Notch
• Black Mark
• Linerless

Media Sensor:

• Adjustable Media Sensor
• Transmissive Media Sensor
• Reflective Media Sensor

Media Thickness: 250 µm
Maximum Roll Diameter: 203 mm
Maximum Label Width: 103.89 mm
Maximum Label Length: 990.60 mm
Fonts & Emulation
Language Emulation:

• ZBI 2.0
• ZPL
• ZPL II
• EPL II
• EPL
• EZPL

Power Description
Power Source: AC Supply
Frequency:

• 50 Hz
• 60 Hz

Environmental Conditions
Operating Temperature: 4.4°C - 40°C
Operating Relative Humidity: 20% - 85%
Storage Temperature: -40°C - 60°C
Storage Relative Humidity: 5% - 85%
Physical Characteristics
Height: 324 mm
Width: 269 mm
Depth: 495 mm
Weight (Approximate): 16.33 kg
Miscellaneous
Power Cable Localization:

• UK
• EU

Energy Star: Yes
