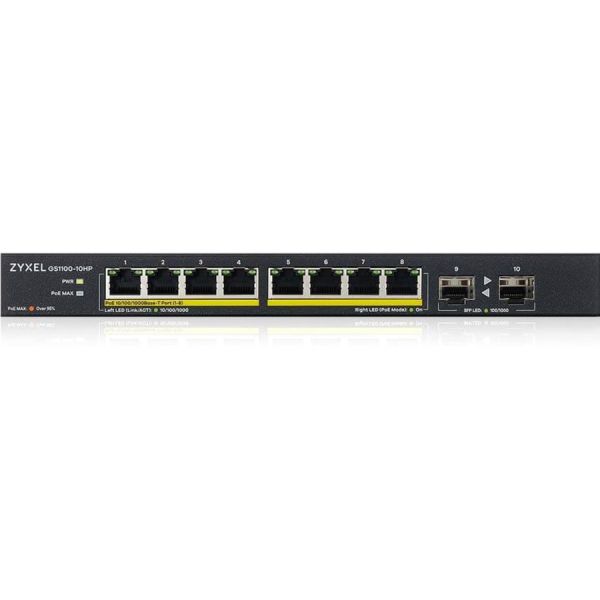

ZYXEL 8-port GbE Unmanaged PoE Switch with GbE Uplink

Marketing Information
The Zyxel GS1100 Series is the best solution for instant Gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 Series provides plug-and-play simplicity for high-bandwidth network applications.

Benefits | Green networking

The GS1100 Series not only offers Gigabit Ethernet connectivity for highbandwidth network applications, but also power-saving functions for better energy efficiency. Capable of dynamically adjusting power output according to traffic, active links and cable length, the GS1100 Series can reduce energy consumption for lowered operating costs.

Traffic detection - Energy Efficient Ethernet (EEE) compliance
The IEEE 802.3az Energy Efficient Ethernet (EEE) feature automatically detects network traffic and adjusts power consumption dynamically, enabling the switch to reduce power consumption during low link utilization periods.

Inactive link detection
The inactive link detection function automatically reduces power usage when inactive links or devices are detected. The GS1100 Series can adjust power consumption according to link status and the number of active network devices.

Cable length detection compliance
This green feature enables the switch to automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.

Fanless design

The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.

Gigabit to the desktop

The GS1100 Series offer 8/16/24-port Gigabit non-blocking wire-speed transmission. In addition, the GS1100-24 and GS1100-10HP are equipped with 2 extra SFP slots supporting dual rate (GbE and 100M speed) connections for long-distance deployments. With superior Gigabit performance and flexible port options, the GS1100 Series is the ideal solution for bandwidth-intensive applications in small office environments.

Freedom of installation via PoE

The GS1100-10HP supports the IEEE 802.3at PoE+ standard to ease the installation of network devices in challenging spaces such as ceilings or walls. PoE+ allows 30 watts per port to power PoE-enabled WLAN APs, VoIP phones and IP surveillance cameras through CAT-5E cables reducing the need of power adapters saving installation time and cost. The GS1100-10HP has been designed with eight full PoE+ ports with total PoE power budget of up to 130 Watts, which makes it an ideal connectivity solution for high-density powered device deployments.
Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: GS1100-10HP-GB0102F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Series: GS1100
Product Model: GS1100-10HP
Product Name: 8-port GbE Unmanaged PoE Switch with GbE Uplink
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet PoE
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3at
• IEEE 802.1p
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3az
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.3af

Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 130 W
Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Adapter
Power Consumption: 156.10 W
Physical Characteristics
Form Factor:

• Wall Mountable
• Desktop

Height: 27 mm
Width: 250 mm
Depth: 104 mm
Weight (Approximate): 730 g
Miscellaneous
Package Contents:

• 8-port GbE Unmanaged PoE Switch with GbE Uplink
• Power Adapter
• Power Cord
• Wall-mount Kit

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: Lifetime
