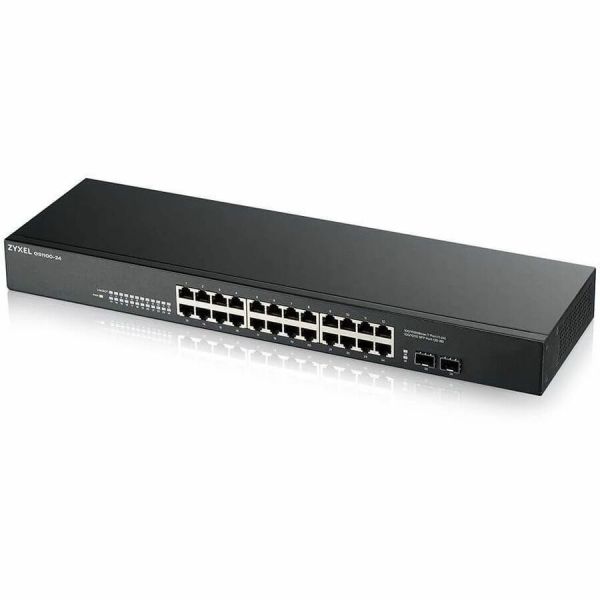

ZYXEL 24-port GbE Unmanaged Switch

Marketing Information

The Zyxel GS1100 Series is the best solution for instant Gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 Series provides plug-and-play simplicity for high-bandwidth network applications.|

Benefits

Green networking

The GS1100 Series not only offers Gigabit Ethernet connectivity for highbandwidth network applications, but also power-saving functions for better energy efficiency. Capable of dynamically adjusting power output according to traffic, active links and cable length, the GS1100 Series can reduce energy consumption for lowered operating costs.

Traffic detection ...Energy Efficient Ethernet (EEE) compliance

The IEEE 802.3az Energy Efficient Ethernet (EEE) feature automatically detects network traffic and adjusts power consumption dynamically, enabling the switch to reduce power consumption during low link utilization periods.

Inactive link detection

The inactive link detection function automatically reduces power usage when inactive links or devices are detected. The GS1100 Series can adjust power consumption according to link status and the number of active network devices.

Cable length detection compliance

This green feature enables the switch to automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.

Fanless design

The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.

Freedom of installation via PoE

The GS1100-10HP supports the IEEE 802.3at PoE+ standard and easily connects with PoE ready devices to your network with plug-and-play design. PoE+ allows 30 watts per port to power PoE-enabled WLAN APs, VoIP phones and IP surveillance cameras through Cat 5e cables reducing the need of power adapters saving installation time and cost. The GS1100-10HP has been designed with eight full PoE+ ports with total PoE power budget of up to 130 Watts, which makes it an ideal PoE connectivity solution for home, shop and small office environments.

Gigabit to the desktop

The GS1100 Series offer 8/16/24-port Gigabit non-blocking wire-speed transmission. In addition, the GS1100-24 and GS1100-10HP are equipped with 2 extra SFP slots supporting dual rate (GbE and 100M speed) connections for long-distance deployments. With superior Gigabit performance and flexible port options, the GS1100 Series is the ideal solution for bandwidth-intensive applications in small office environments.

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: GS1100-24E-GB0103F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Series: GS1100
Product Model: GS1100-24E
Product Name: 24-port GbE Unmanaged Switch
Product Type: Ethernet Switch
Technical Information
Features:

• Fanless
• Plug and Play
• Energy Efficient

Interfaces/Ports
Total Number of Network Ports: 24
Network (RJ-45): Yes
Port/Expansion Slot Details: 24 x Gigabit Ethernet RJ-45 Network Port
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 100/1000Base-T
Maximum Data Transfer Rate: 128 MB/s
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3az
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.1p

Management & Protocols
Manageable: No
Reliability
MTBF: 366919 Hour
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source:

• Power Supply
• AC

Power Consumption: 13 W
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor:

• Wall Mountable
• Rack-mountable

Height: 41.9 mm
Width: 267 mm
Depth: 162.1 mm
Weight (Approximate): 1.50 kg
Miscellaneous
Package Contents:

• 24-port GbE Unmanaged Switch
• Power cord
• Wall-mount kit
• Rack mounting kit

Application/Usage:

• Network
• Office
• Small Office
• VoIP Phone
• Surveillance
• Camera
• Home Network

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: Lifetime
