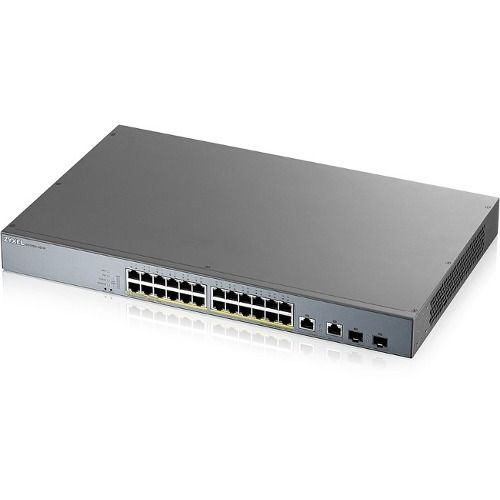

ZYXEL 24-port GbE Smart Managed PoE Switch with GbE Uplink

Marketing Information
Zyxel introduces the GS1350 Series smart managed switches boasting specialized hardware and software features dedicated to surveillance deployments and applications. With a brand-new titanium grey exterior purpose-built for the surveillance sector, the Series includes four models with large power budgets of up to 375 W. In addition, the GS1350-6HP supports two 802.3bt PoE ports offering a maximum of 60 W per port to fulfill high power consumption PDs such as speed dome or PTZ IP cameras.

Benefits

Advanced PoE management for surveillance

The Zyxel GS1350 Series offers several advanced PoE management features dedicated to surveillance applications. Administrators can access them through the intuitive... web-based GUI to manage, monitor and maintain surveillance equipment with ease.

Automated camera recovery

IP-based PDs including cameras from time to time may become malfunctional due to various reasons, like software defect or harassed by malicious attempts. To reduce the efforts for administrators to recover faulty surveillance devices, the GS1350 Series is capable of detecting and recovering failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios.

Continuous power over Ethernet

One of the biggest challenges in surveillance is maintenance. Built with the continuous PoE feature, the GS1350 Series provides uninterrupted power delivery to IP cameras and surveillance devices even if the switch is undergoing maintenance that requires firmware upgrades or reboots due to configuration changes. This greatly reduces the wait time for booting up all the cameras after a power recycle event of a switch.

Unique hardware features

Easy long-distance deployment

Traditionally, PoE switches deliver power and data with a distance limitation of 100 meters or less. The GS1350 Series fulfills the need to deploy IP camera or power devices beyond the limit. With the extended-range mode enabled, the GS1350 Series instantly enables distant deployments of up to 250 meters. Save your money and effort simply with one GS1350 PoE switch.

Handy tools on the front panel

The one-touch "Restore" button on GS1350 Series helps effortless recovery from misconfigurations, while its 5-segment LED allows users to instantly identify the PoE power usage. These handy designs are accessible from the front panel for quick, simplified troubleshooting.

Tough protection on every port

Reliability and stability of the Switch are critical to a surveillance network. GS1350's patented design greatly enhances the surge and ESD (electrostatic discharge) protection on each PoE port, features up to 15 KV ESD and minimum of 4 KV surge protection guarding the switch from damage and network instability due to ESD and lightning surges.

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: GS1350-26HP-GB0101F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Series: GS1350
Product Model: GS1350-26HP
Product Name: 24-port GbE Smart Managed PoE Switch with GbE Uplink
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet PoE
• 2 x Gigabit Ethernet Combo (Ethernet /SFP)

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Form Factor: Rack-mountable
Height: 43.9 mm
Width: 440.9 mm
Depth: 270 mm
Weight (Approximate): 3.58 kg
Miscellaneous
Package Contents:

• 24-port GbE Smart Managed PoE Switch with GbE Uplink
• Power Cord
• Rack Mounting Kit

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
