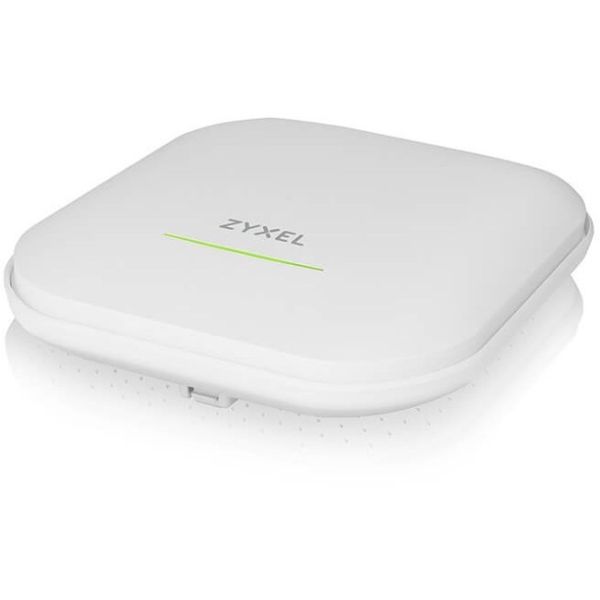

ZYXEL AXE5400 WiFi 6E Dual-Radio Access Point

Marketing Information

Featuring 6 spatial streams (4x4 in 6 GHz/5 GHz selectable, 2x2 in 2.4 GHz) with the maximum data rate of 5.4 Gbps, the Zyxel NWA220AX-6E is the dual-radio access point with a BandFlex radio that can support either 5 GHz or 6 GHz by configuration, making it the most economical choice to fit into your existing 5 GHz coverage as well as futureproofing the use of 6 GHz.

NWA220AX-6E includes all the benefits of WiFi 6 capabilities like OFDMA, MU-MIMO, BSS Coloring, and brings them into the brand-new, interference-free 6 GHz that more than doubles the WiFi capacity to deliver multi-gigabit speed, and low-latency connections.

The brand-new, interference-free 6 GHz band presents a solution to quenching the thirst for today's net...work hungry for more bandwidth, making it a perfect choice for high-density WiFi and emerging technology connectivity. To reach the full potential of the new band, Zyxel 6E Boost, using the high-gain 4x4 streams in 6 GHz, increases the maximum gains in transmit beamforming and receive MIMO to extend its range and ensure the highest performance is delivered.

The NWA220AX-6E is ideal in high density environments such as transport hubs, exhibition halls, schools, offices, hotels, restaurants, or any other organizations that need to accommodate a large number of devices as it can offer the optimal premium service for everyone, every time they connect to WiFi.

Benefits | WiFi 6E - bringing WiFi 6 into 6 GHz spectrum

WiFi 6E is the WiFi 6 extended into 6 GHz spectrum. It includes all the WiFi 6 features, plus the following:

• 2.5X More Capacity: 2.5 times more spectrum with the extended 6 GHz band with no legacy devices
• Superwide Channels: Utilizing up to seven additional superwide 160 MHz channels in 6 GHz for bandwidth-demanding applications like VR/AR, WiFi calling, and high-definition video streaming
• No Interference: No interference from microwaves and the non-6E devices. Only Wi-Fi 6E capable devices can use the 6 GHz band.

4G/5G cellular network coexistence

With the exponential growth of mobile devices in the wireless network, users start to experience degraded performance, such as ping drops and high latency; users have to reduce the use of their mobile devices in order to maintain a smooth, working wireless service. Thus, to enable 4G/5G cellular network coexistence and minimize interference from 4G/5G antennas or signal boosters, the NWA220AX-6E has built-in 4G/5G interference filters. As a result, the visible or invisible 4G/5G indoor antennas in the environment is no longer an issue when installing APs.

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: NWA220AX6EEU0101F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Model: NWA220AX-6E
Product Name: AXE5400 WiFi 6E Dual-Radio Access Point
Packaged Quantity: 1
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Network Band: Tri Band
Frequency Band:

• 2.40 GHz
• 5 GHz
• 6 GHz

Wireless Transmission Speed: 5.40 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WEP
• WPA
• WPA2-PSK
• WPA3
• WPA2
• WPA3-ENT

Interfaces/Ports
Ethernet Technology:

• 2.5 Gigabit Ethernet
• Gigabit Ethernet

Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
Physical Characteristics
Form Factor:

• Standalone
• Ceiling Mountable
• External
• Plate Mountable

Antenna Form Factor: Internal
Height: 42 mm
Width: 180 mm
Depth: 180 mm
Weight (Approximate): 650 g
