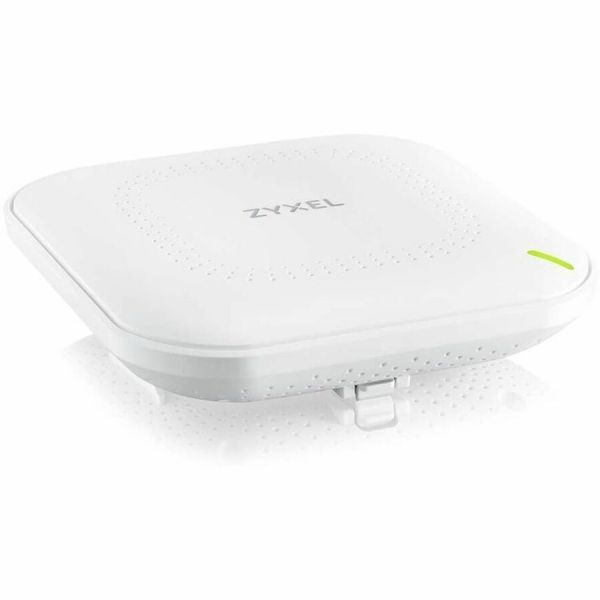

ZYXEL 802.11ax (WiFi 6) Dual-Radio PoE Access Point

Marketing Information

Delivering AX3000 WiFi speed with 2.5G Ethernet uplink port, the Zyxel NWA50AX Pro provides the powerful and fastest WiFi 6 speed for small businesses, SoHo, and home offices. Small business owners looking for an affordable WiFi 6 access point with multi-gig connectivity, Zyxel NWA50AX Pro is no doubt the ideal choice for them to support more connected devices and applications with the fastest speeds

To better leverage the faster speeds in 5 GHz band, Zyxel NWA50AX Pro equips with 3x high-gain antennas to boost WiFi signals and extend coverage, especially to previously hard-to-reach areas. The AP also supports the use of 160MHz channels, doubling the throughput compared to 80MHz channels for faster network speeds. In addition to the ...WiFi boost, NWA50AX Pro also comes with the premium multi-gig Ethernet connections. As it can run on the common-type Cat5e cabling, a 2.5G uplink port breaks through the 1.0G bottleneck without re-cabling, making it easy to create an affordable high-speed network environment for your business or home.

The NWA50AX Pro with NebulaFlex offers the flexible manageability for you to freely choose between the local GUI management or onboarding to our super easy Nebula cloud management interface that you never need to worry about forgetting the IP address or lost account and password as you can manage everything on cloud.

Benefits | Bringing WiFi 6 to life

WiFi 6 made tremendous improvement by introducing new technologies, such as orthogonal frequency-division multiple access (ODFMA), and spatial re-use, which is also referred to as Basic Service Set (BSS) coloring. It aims to simultaneously satisfy all requirements from rapidly growing mobile users. Zyxel’s NWA50AX Pro is a true WiFi 6 access point which supports essential 11ax functions that delivers faster performance and increased capacity, making the user experience even better. Apart from running at 25% faster speed, NWA50AX Pro can also maximize WiFi efficiency by allowing simultaneous data transmission for multiple clients; thus, the air time contention is no longer an issue here.

2.5G multi-gig WiFi 6 connectivity for small businesses

In the world of wireless transmission, the sustained rates of 2x2 or 3x3 AX client devices deliver real-world speed faster than Gigabit ( > 1 Gbps). And, the 2.5 Gbps uplink will ensure that there is no bottleneck in the data transmission traveling upwards to connect to the switch, router, and the broadband Internet.

The upgrade to the 2.5G network infrastructure requires no re-cabling, as it can run on the common-type Cat5e cable, making it easy to create an affordable high-speed network environment for your business or home.

Multi-gig connection stabilization

Oftentimes, when deploying a new AP, especially in the small business settings, the network admins will choose to use the common-type Cat5e cable they have on hand. However, due to the wear and tear of the cable (deterioration in the metal surface and the plastic fatigue), it is very likely to encounter a speed drop in the connection.

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: NWA50AXPROEU0102F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Model: NWA50AX Pro
Product Name: 802.11ax (WiFi 6) Dual-Radio PoE Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Total Number of Antennas: 3
Number of Internal Antennas: 3
Indoor/Outdoor: Indoor
Wireless Transmission Speed: 2.93 Gbit/s
MIMO Technology: Yes
MIMO Type: Multi User MIMO
Data Encryption: Yes
Encryption Standard:

• WPA-PSK
• WPA2-PSK
• WPA3-Personal

Interfaces/Ports
Ethernet Technology: 2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Network & Communication
Wi-Fi Generation: Wi-Fi 6
Communication Protocols: IPv6
Wireless Performance: AX3000
Physical Characteristics
Color Family: White
Product Color: White
Form Factor:

• Plate Mountable
• Standalone

Antenna Form Factor: Internal
Height: 37.6 mm
Width: 140 mm
Depth: 140 mm
Weight (Approximate): 353.8 g
Miscellaneous
Package Contents:

• 802.11ax (WiFi 6) Dual-Radio PoE Access Point
• Power Adapter
• Mount Plate
• Mounting Screws

Certifications & Standards:

• FCC Part 15C
• FCC Part 15E; ETSI EN 300 328
• EN 301 893; LP0002
• EN 60601-1-2
• FCC Part 15B
• EN 301 489-1; EN 301 489-17
• EN55022
• EN55024
• EN61000-3-2/-3
• BSMI CNS13438
• EN 60950-1
• IEC 60950-1; BSMI CNS14336-1
