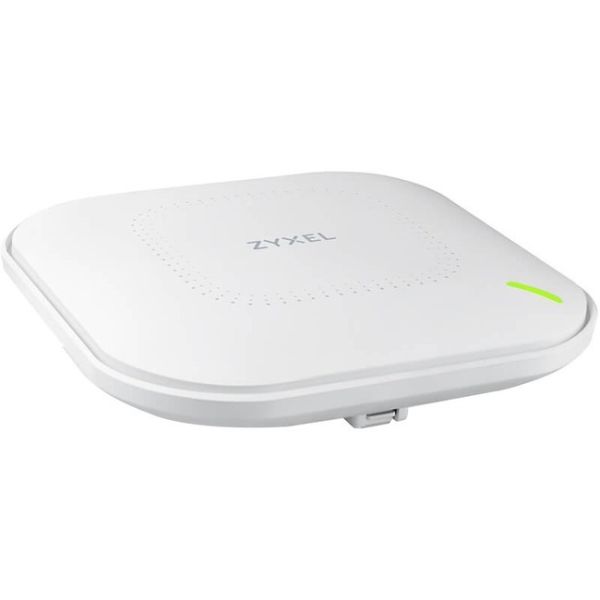

ZYXEL 802.11ax (WiFi 6) Dual-Radio Unified Access Point

Marketing Information

True WiFi 6

The WAX510D is truly the next generation of wireless (WiFi 6) AP, especially for businesses looking to strike the right balance between performance and budget. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO, which can't be found in the earlier releases of 802.11ax products. The WAX510D boasts an impressive quad-core processor with 2 network accumulators to guarantee that a smooth and consistently fast service is provided to each client at all times.

An access point that fits your need

We understand that mounting an access point to the ceiling isn't always po...ssible due to the challenging environments like warehouses, historical buildings or stylish hotels were the aesthetics of the building are a priority. The WAX510D is equipped with a dual-optimized antenna that is selectable, allowing the access point to be mounted on the wall or on the ceiling without compromising on performance and coverage.

The smartest choice

The WAX510D is not only efficient at delivering impressive high speeds with smooth and consistent delivery to wireless clients, but also it's efficient on power. The WAX510D can deliver its impressive performance while keeping the consumption of PoE within the PoE+ standard, so that you can enjoy the latest WiFi 6 technology offering without the need to invest in upgrading your traditional switching architecture.

Manage it your way!

As it comes with support for NebulaFlex Pro, Zyxel's scalable, cloud-based management system, the WAX510D can be managed via NCC (Nebula control Center), on-premises controller or simply operate alone (controller less). You can choose the way that is best suited to your needs.

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: WAX510DEU0101F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Model: WAX510D
Product Name: 802.11ax (WiFi 6) Dual-Radio Unified Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: 802.11ax
Frequency Band:

• 2.40 GHz
• 5 GHz

Wireless Transmission Speed: 1.76 Gbit/s
MIMO Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WPA-PSK
• WPA

Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: Yes
Power Description
Power Consumption: 17 W
Physical Characteristics
Form Factor:

• Wall Mountable
• Ceiling Mountable

Height: 39 mm
Width: 180 mm
Depth: 180 mm
Weight (Approximate): 770 g
