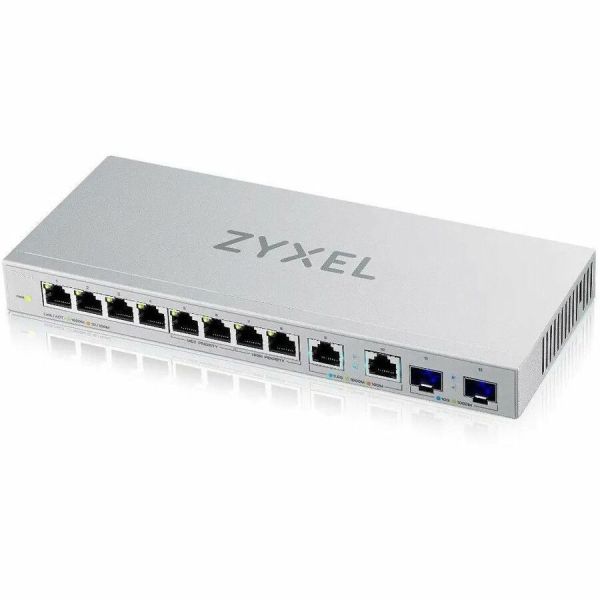

ZYXEL 8-Port GbE and 2-Port 2.5G Switch with 2 10G Uplink

Marketing Information

The XGS1210-12 and XGS1010-12 come with eight Gigabit Ethernet Ports, two 10 Gigabit SFP+ uplink and two 2.5G Multi-Gig ports which provide either 100M, 1G, or 2.5G connectivity.

They have been designed specifically for customers who require simple management over a variety of mixed environments from home to office.

Connect WiFi 6 access points to the 2.5 Gigabit ports for true maximum wireless speed delivery. Deliver your data swiftly to your client devices from your NAS, workstations, or other core networking essential with 10 Gigabit SFP+. The compact size of XGS1210-12 and XGS1010-12 perfectly blends into homes and offices while providing high performance without any noise.

Benefits | Maximized 10G speed for conten...t creators

The two 10G SFP+ ports offer higher transmission speeds and allows customers to instantly upgrade to a hybrid highspeed network environment at a cost-effective price.

Fanless, noiseless design

Extend your network without disrupting your quiet business environment. This switch features a fanless design that ensures silent operation and greater reliability over time with no moving parts.

Unlock Multi-Gigabit potential for your devices

Support Multi-Gig technology to expand your network easily, and serve a range of network devices such as gaming laptops, desktops, workstations, servers, network attached storage (NAS) devices, or WiFi 6 access points and more either 100M, 1G, or 2.5G speed automatically. The handy LED indicator provides an intuitive indication of connection speed for each individual ports.

Easy web management (XGS1210-12)

XGS1210-12 comes with an user-friendly web-based interface setup that helps you to configure and manage network easily. It also walks you through setting up backups and firmware upgrades, ensuring that your network will perform reliably, so that you can get back to business. Also, you can turn off Ethernet port LEDs for distraction-free operation through the web-based interface.

Plug and Play (XGS1010-12)

Its easy plug-and-play design allows you to connect the XGS1010-12 to VoIP, media players, game consoles, set-top box, and any other web browsing devices to your home or studio network without any configuration.

Advanced energy-savings at work

Built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: XGS101012ZZ0102F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Model: XGS1010-12
Product Name: 8-Port GbE and 2-Port 2.5G Switch with 2 10G Uplink
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 10
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet Network
• 2 x 2.5 Gigabit Ethernet Network
• 2 x 10 Gigabit Ethernet Uplink

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 2.5GBase-T
• 10GBase-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3az
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3bz
• IEEE 802.3x
• IEEE 802.1p

Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: No
Input Voltage:

• 120 V AC
• 230 V AC
• 12 V DC

Frequency:

• 50 Hz
• 60 Hz

Power Source: AC/DC
Power Consumption: 11.53 W
Physical Characteristics
Color Family: Grey
Product Color: Grey
Form Factor: Desktop
Height: 27 mm
Width: 250 mm
Depth: 104 mm
Weight (Approximate): 766.6 g
Miscellaneous
Package Contents:

• 8-Port GbE and 2-Port 2.5G Switch with 2 10G Uplink
• Power Adapter
• Quick Start Guide
• Safety Warning and Doc

Application/Usage:

• Network
• Business
• Home Office
• Laptop
• Printer
• Gaming Console
• Smart TV
• Server

Certifications & Standards:

• CE-LVD
• BSMI
• EAC
• FCC
• BSMI Class B
