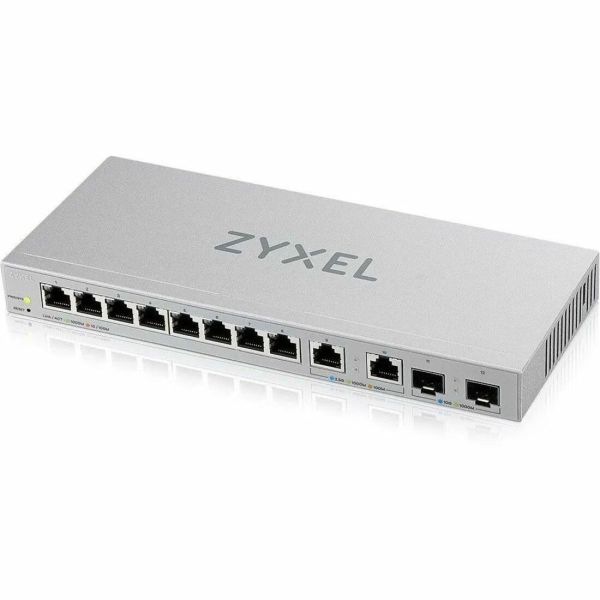

ZYXEL 12-Port Web-Managed Multi-Gigabit Switch with 2-Port 2.5G and 2-Port 10G SFP+

Marketing Information

The Zyxel XGS1210-12 comes with two 10 Gigabit SFP+ uplink ports, two 2.5 Gigabit ports, and eight gigabit Ethernet ports. Prioritize, limit, and/or protect your network traffic with its built-in Web GUI. Designed specifically for customers who want simple network management for their home or officeers who want simple network management for their home or office.

Connect 802.11ac or 802.11ax access points to the 2.5 Gigabit ports for true maximum wireless speed delivery. Deliver your data swiftly to your client devices from your NAS or other core networking essential with 10 Gigabit SFP+. The XGS1210-12 perfectly blends into homes and offices with its compact size while providing high performance without any noise.

10G Accele...ration for All

The XGS1210-12 provides two SFP+ ports compatible with 10GbE which offers higher transmission speeds and allows customers to instantly upgrade to a hybrid high-speed network environment at a cost-effective price.

Multi-Gigabit Speed Support

Support data transmission speed among 10G. 2.5G, 1G, and 100M, capable of servicing a range of network devices such as gaming laptops, desktops, workstations, servers, network attached storage (NAS) devices, or IEEE wireless access points.

Easy Web Management

XGS1210-12 comes with a user-friendly web-based interface setup that walks you through configuration and management quickly. It also walks you through setting up backups and firmware upgrades, ensuring that your network will perform reliably, so that you can get back to business.

Quality of service

Port-based QoS for better voice and video traffic control. Optimizing access bandwidth on the network.

VLAN

Segregating network into small groups for enhanced network security and efficiency.

Link Aggregation

Combining up to four physical ports together for faster file transfers and to enhance connection reliability

IGMP Snooping

Optimizing network efficiency on multicast traffic delivery without the need of an extra multicast router.

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: XGS121012ZZ0102F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Model: XGS1210-12
Product Name: 12-Port Web-Managed Multi-Gigabit Switch with 2-Port 2.5G and 2-Port 10G SFP+
Packaged Quantity: 1
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 12
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet Network
• 2 x 2.5 Gigabit Ethernet Network
• 2 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 2.5GBase-T
• 10GBase-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.11ac
• IEEE 802.11ax
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3bz
• IEEE 802.3az
• IEEE 802.3x
• IEEE 802.1p

Management & Protocols
Manageable: Yes
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Adapter
Power Consumption: 15.61 W
Physical Characteristics
Form Factor: Desktop
Height: 26.9 mm
Width: 249.9 mm
Depth: 104.1 mm
Weight (Approximate): 768 g
Miscellaneous
Package Contents:

• 12-Port Web-Managed Multi-Gigabit Switch with 2-Port 2.5G and 2-Port 10G SFP+
• Power Adapter
• Quick Start Guide
• Safety Warning and Doc

Application/Usage:

• Network
• Office
• Home Network
• Business
